Advanced control timer (TIM1) UM0306

178/519

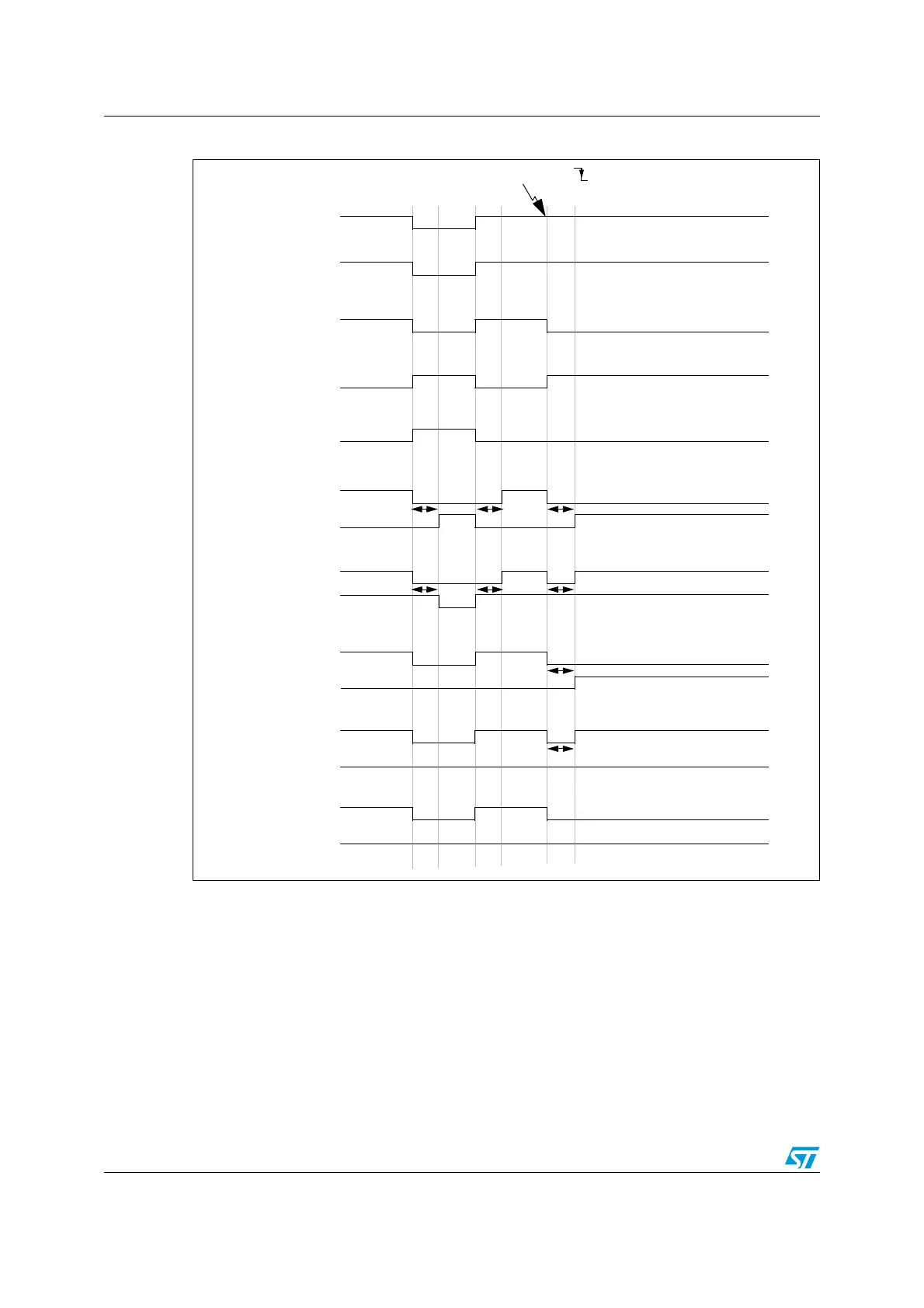

Figure 61. Output behavior in response to a break.

delay

OCxREF

BREAK (MOE

OCx

(OCxN not implemented, CCxP=0, OISx=1)

OCx

(OCxN not implemented, CCxP=0, OISx=0)

OCx

(OCxN not implemented, CCxP=1, OISx=1)

OCx

(OCxN not implemented, CCxP=1, OISx=0)

OCx

OCxN

(CCxE=1, CCxP=0, OISx=0, CCxNE=1, CCxNP=0, OISxN=1)

delaydelay

delay

OCx

OCxN

(CCxE=1, CCxP=0, OISx=1, CCxNE=1, CCxNP=1, OISxN=1)

delaydelay

delay

OCx

OCxN

(CCxE=1, CCxP=0, OISx=0, CCxNE=0, CCxNP=0, OISxN=1)

)

delay

OCx

OCxN

(CCxE=1, CCxP=0, OISx=1, CCxNE=0, CCxNP=0, OISxN=0)

OCx

OCxN

(CCxE=1, CCxP=0, CCxNE=0, CCxNP=0, OISx=OISxN=0 or OISx=OISxN=1)
