ST ST32M103 Series - Figure 150. Break Detection in LIN Mode (11-Bit Break Length

To Next Page

To Previous Page

Universal synchronous asynchronous receiver transmitter (USART) UM0306

394/519

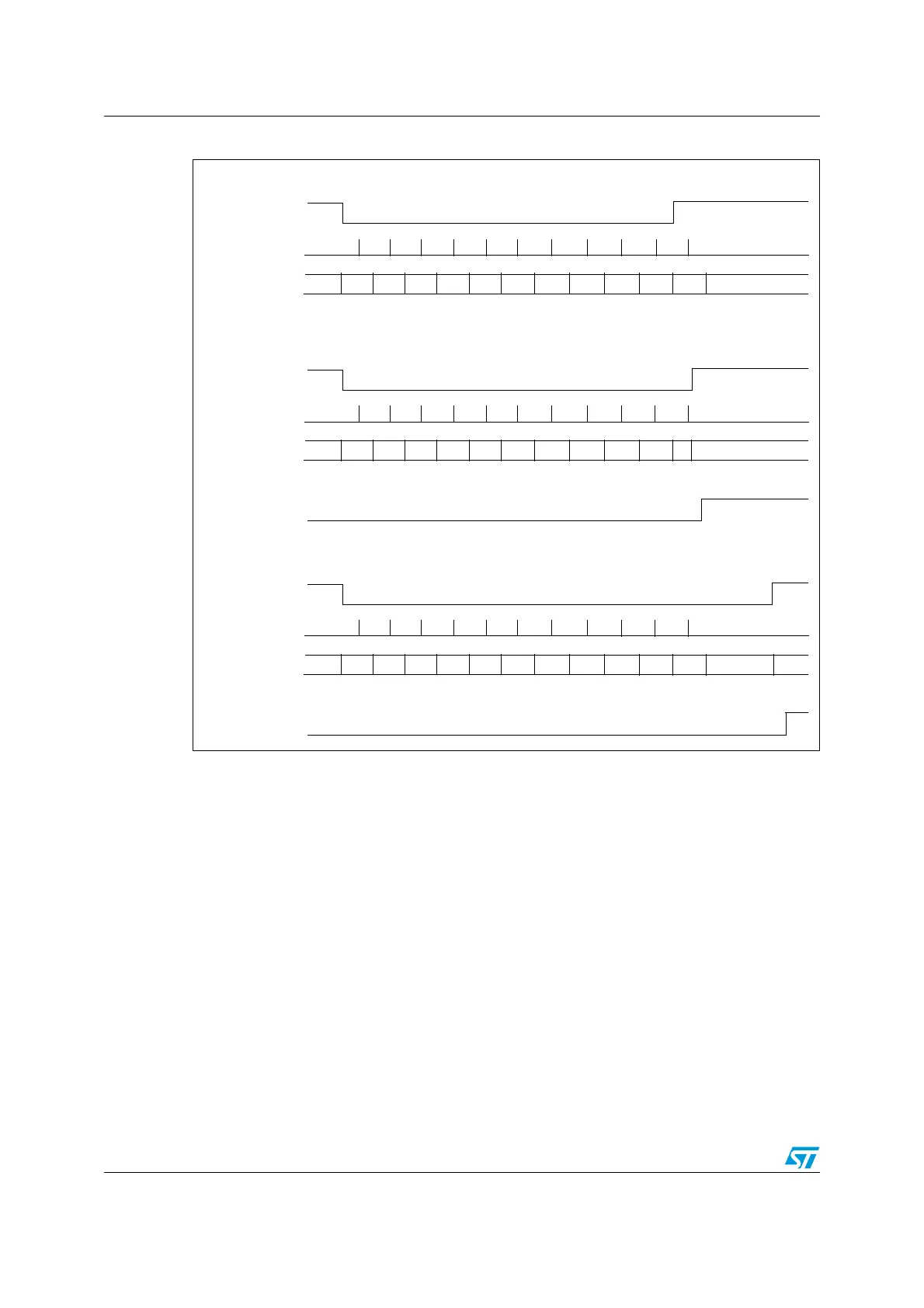

Figure 150. Break detection in LIN mode (11-bit break length - LBDL bit is set)

Case 1: break signal not long enough => break discarded, LBD is not set

“Short” Break Frame

RX line

Break State machine

Capture Strobe

Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7 Bit8 Bit9

Idle Idle

Read Samples

Bit0

0000000001

Bit10

“Short” Break Frame

RX line

Break State machine

Capture Strobe

Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7 Bit8 Bit9

Idle Idle

Read Samples

Bit0

0000 0 0 0 0 0 0

B10

Case 2: break signal just long enough => break detected, LBD is set

LBD

“Short” Break Frame

RX line

Break State machine

Capture Strobe

Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7 Bit8 Bit9

Idle Idle

Read Samples

Bit0

0000000000

Bit10

Case 3: break signal long enough => break detected, LBD is set

wait delimiter

LBD

delimiter is immediate
