ST ST32M103 Series - Figure 173. Dual ADC Block Diagram

To Next Page

To Previous Page

UM0306 Analog/digital converter (ADC)

463/519

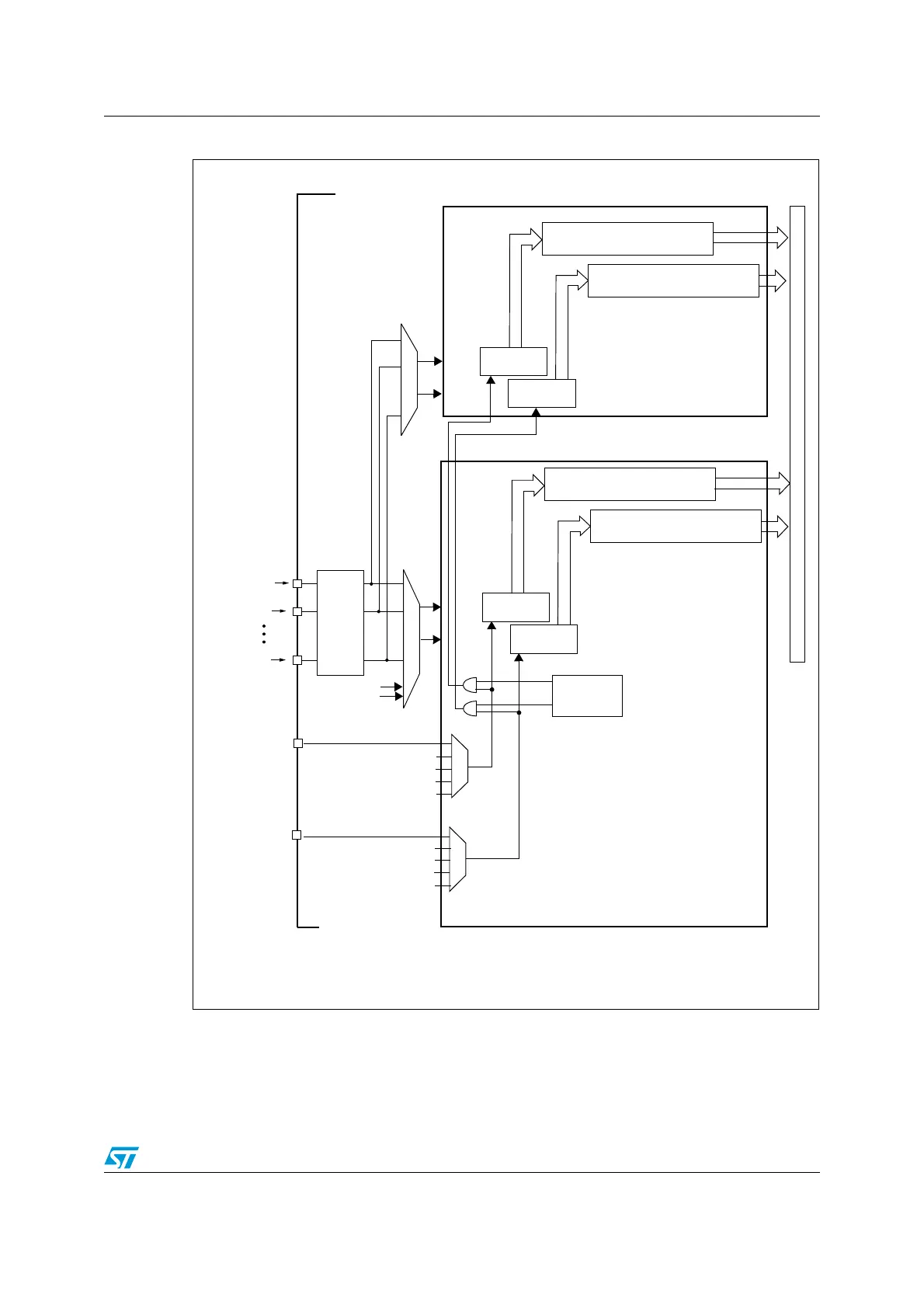

Figure 173. Dual ADC block diagram

ADC_IN0

ADC_IN1

ADC_IN15

GPIO

Ports

Address/data bus

EXTI_11

EXTI_15

INJECTED DATA REGISTERS

(4 x 16 bits)

REGULAR

CHANNELS

INJECTED

CHANNELS

ADC2 (SLAVE)

(12 bits)

INJECTED DATA REGISTERS

(4 x 16 bits)

REGULAR

CHANNELS

INJECTED

CHANNELS

ADC1 (MASTER)

DUAL MODE

internal triggers

Start trigger mux

(regular group)

(injected group)

Start trigger mux

CONTROL

Temp. sensor

REFINT

REGULAR DATA REGISTER

Note: External triggers are present on ADC2 but are not shown for the purposes of this diagram

(16 bits)

REGULAR DATA REGISTER

(16 bits)*

* In some dual ADC modes, the ADC1 data register (ADC1_DR) contains both ADC1 and ADC2 regular converted

data over the entire 32 bits.
