General purpose timer (TIMx) UM0306

228/519

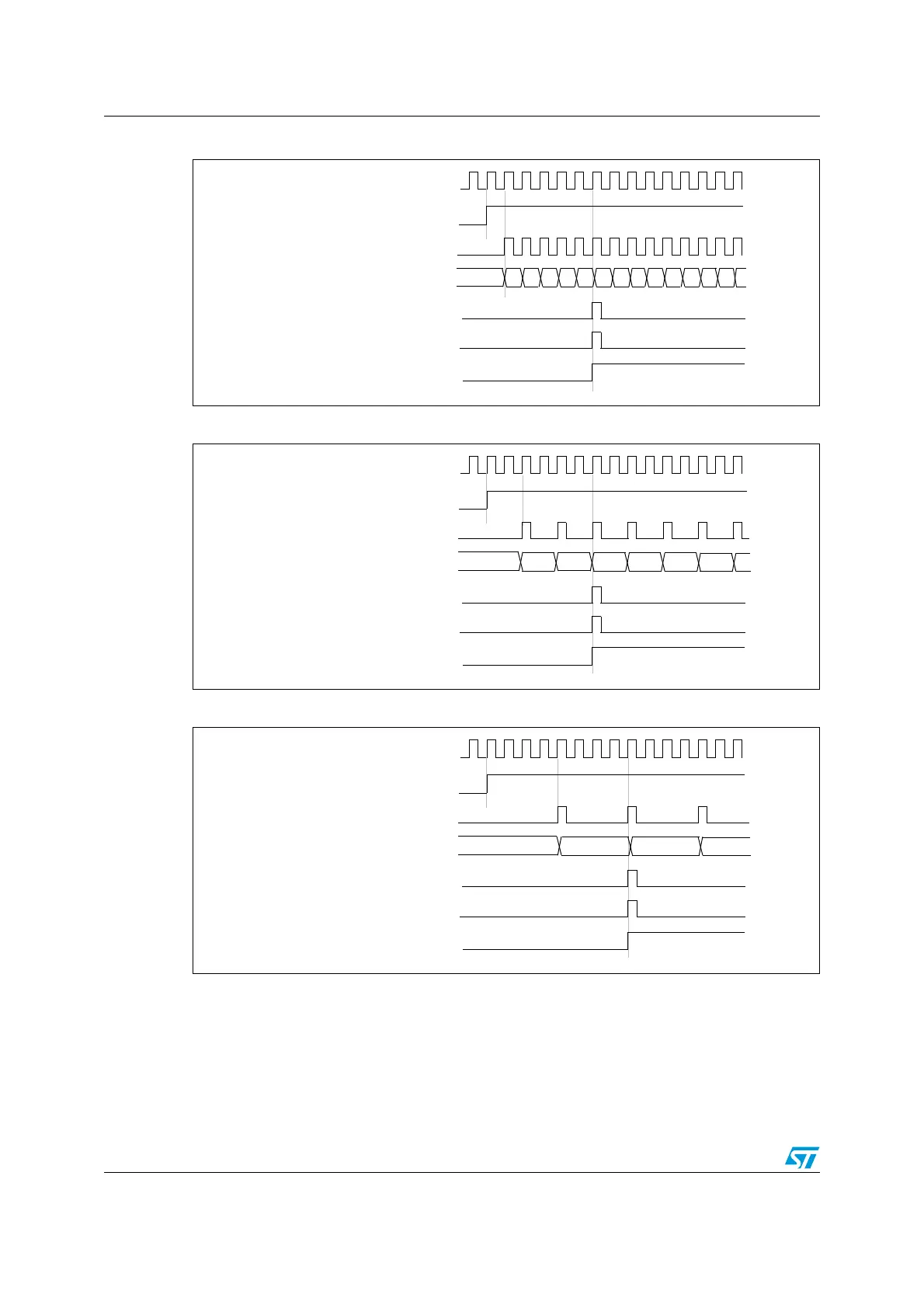

Figure 81. Counter timing diagram, internal clock divided by 1

Figure 82. Counter timing diagram, internal clock divided by 2

Figure 83. Counter timing diagram, internal clock divided by 4

CK_INT

CNT_EN

TIMER CLOCK = CK_CNT

COUNTER REGISTER

UPDATE INTERRUPT FLAG (UIF)

COUNTER UNDERFLOW (cnt_udf)

UPDATE EVENT (UEV)

35 34 33 32 31 30 2F04 03 02 01 0005

CK_INT

0001 0036 0035 0034 0033

CNT_EN

TIMER CLOCK = CK_CNT

COUNTER REGISTER

UPDATE INTERRUPT FLAG (UIF)

0002

0000

COUNTER UNDERFLOW

UPDATE EVENT (UEV)

0036 0035

CNT_EN

TIMER CLOCK = CK_CNT

COUNTER REGISTER

UPDATE INTERRUPT FLAG (UIF)

0001

0000

COUNTER UNDERFLOW

UPDATE EVENT (UEV)

CK_INT
