Stihl TS 500i - Sensor

99TS 500i

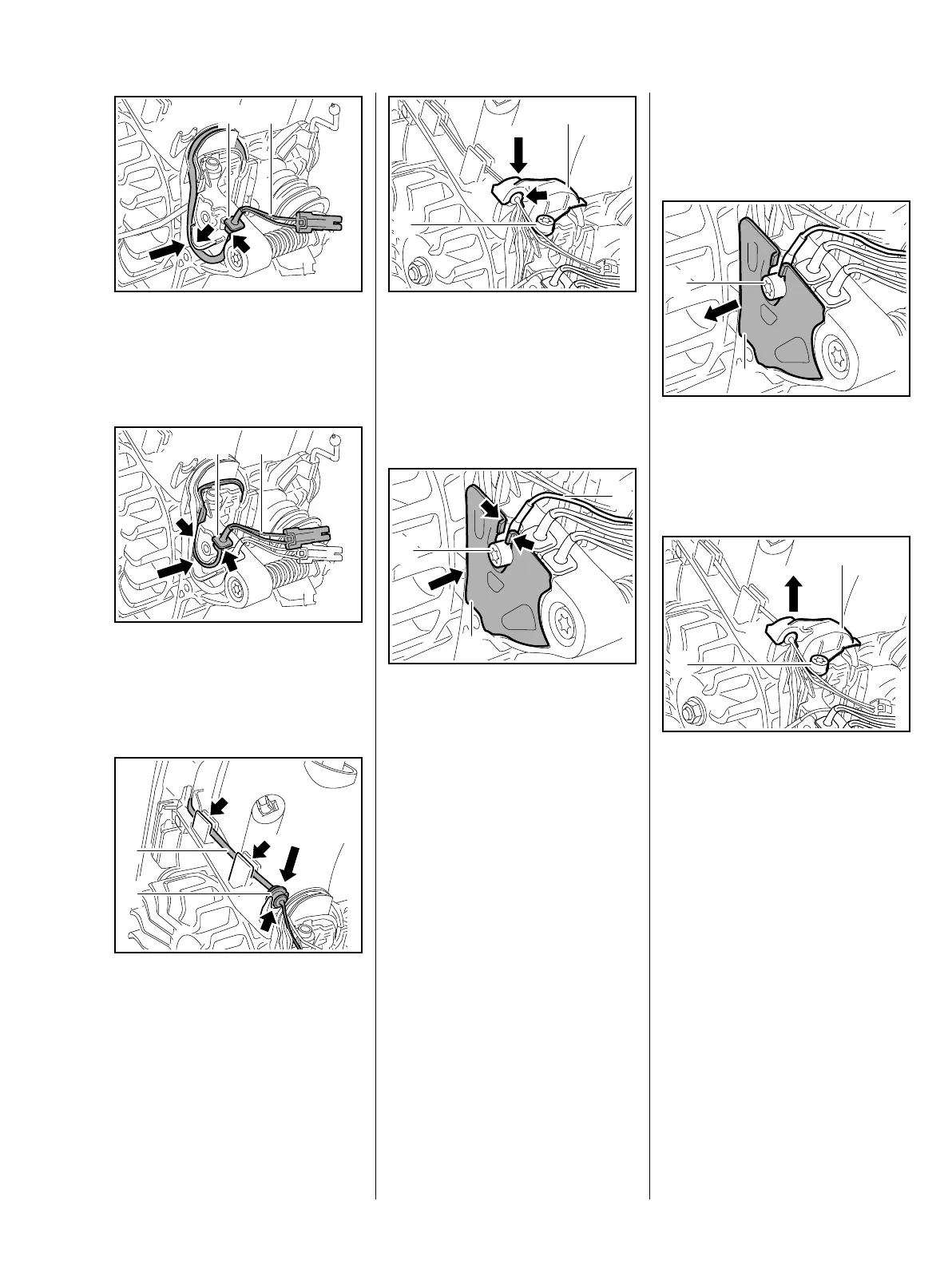

: Place the wiring harness (1) and
bushing (2) of the sensor
completely into the guides
(arrows)
: Place the wiring harness (1) and
bushing (2) of the injection valve
completely into the guides
(arrows)
: Push the wiring harness (1) and
bushing (2) into the guides
(arrows) – start with the bushing
1307RA184 TG
12
1307RA185 TG
12
1307RA186 TG
1
2
: Position cable holder (1) so that it
engages over the bushing
(arrow) – do not pinch the leads
: Screw in the screw (2) and
tighten it
: Fit the cover (1) and guide the
cable lug of the ground wire (2)
between the tabs (arrows)
: Screw in the screw (3) and
tighten it
– Install the engine, b 6.5
– Reassemble remaining parts in
reverse order
1307RA187 TG
2
1
1307RA188 TG
3
1
2
11.4 Sensor
– Remove the engine, b 6.5
: Unscrew the screw (1)
: Remove the ground wire (2) and
cover (3)
: Unscrew the screw (1) and
remove the cable holder (2)
1307RA090 TG
1
3
2
1307RA091 TG
1
2
