Stihl TS 500i - 4 Cast Arm with Guard; Water System; Nozzles; Water Hose

25TS 500i
4. Cast arm with guard
4.1 Water system
4.1.1 Nozzles

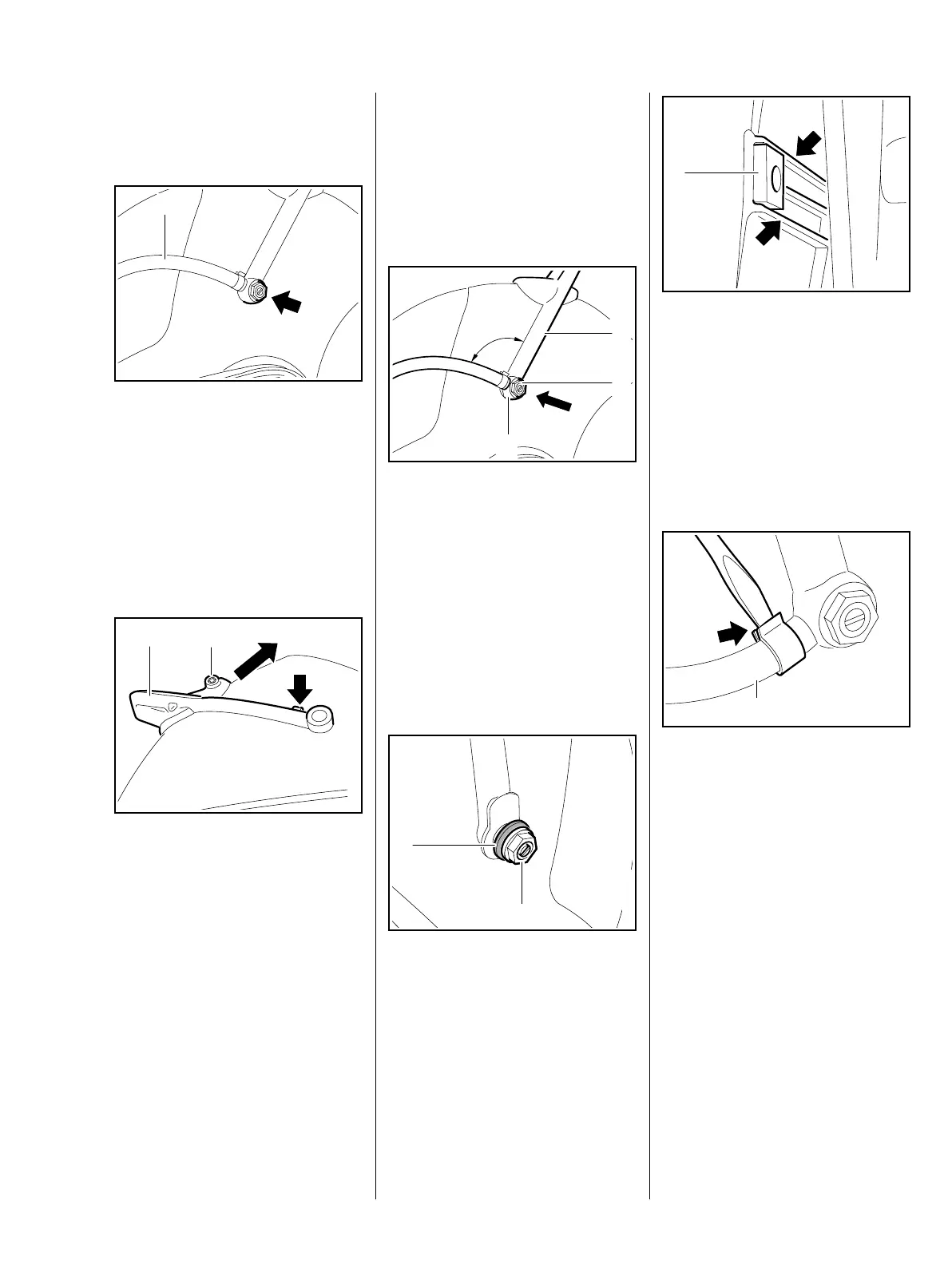

: Take out banjo screws (arrow) on
both sides – the square nuts
inside the guard drop down.
: Take out and examine the water
hose (1), replace if necessary
– Check banjo screws, O-rings and
seal, replace if necessary
: Remove screw (1)
: Guide the adjusting lever (2) over
the lift-off lugs (arrow) with a
gentle turning movement and
remove it.
1
370RA003 TG370RA004 TG
2
1
Installation
When fitting the adjusting lever, it is
simply pushed into place until it
engages.
– Insert and tighten the screw
: Fit the connector (1) with water
hose and align it at a right angle
to the adjusting lever (2).
– Coat O-ring with STIHL press
fluid, b 13
: Insert banjo screw (3)
– Do not damage O-ring
Opposite side
: Push gasket (1) onto banjo
screw (2)
– Coat O-ring with STIHL press
fluid, b 13
: Insert banjo screw (2)
– Do not damage gasket or
O-ring
1307RA364 TG
2
3
1
1307RA000 TG
1
2
: Fit the square nuts (1) in the
guides (arrows) inside the guard
on both sides and hold it.
: Hold the square nuts (1) in place
and screw in and tighten banjo
screws on both sides
4.1.2 Water hose
: Apply a screwdriver to the hose
clip (arrow) and turn slightly to
open the clip.
: Remove water hose (1)
370RA006 TG
1
370RA007 TG
1
