67TS 500i
: Push the plugs (1), (2), (3)
and (4) into the sockets of the
control unit (5) until they engage
– The shape and color of the
plugs and sockets ensures that
they cannot be mixed up
– Reassemble remaining parts in
reverse order

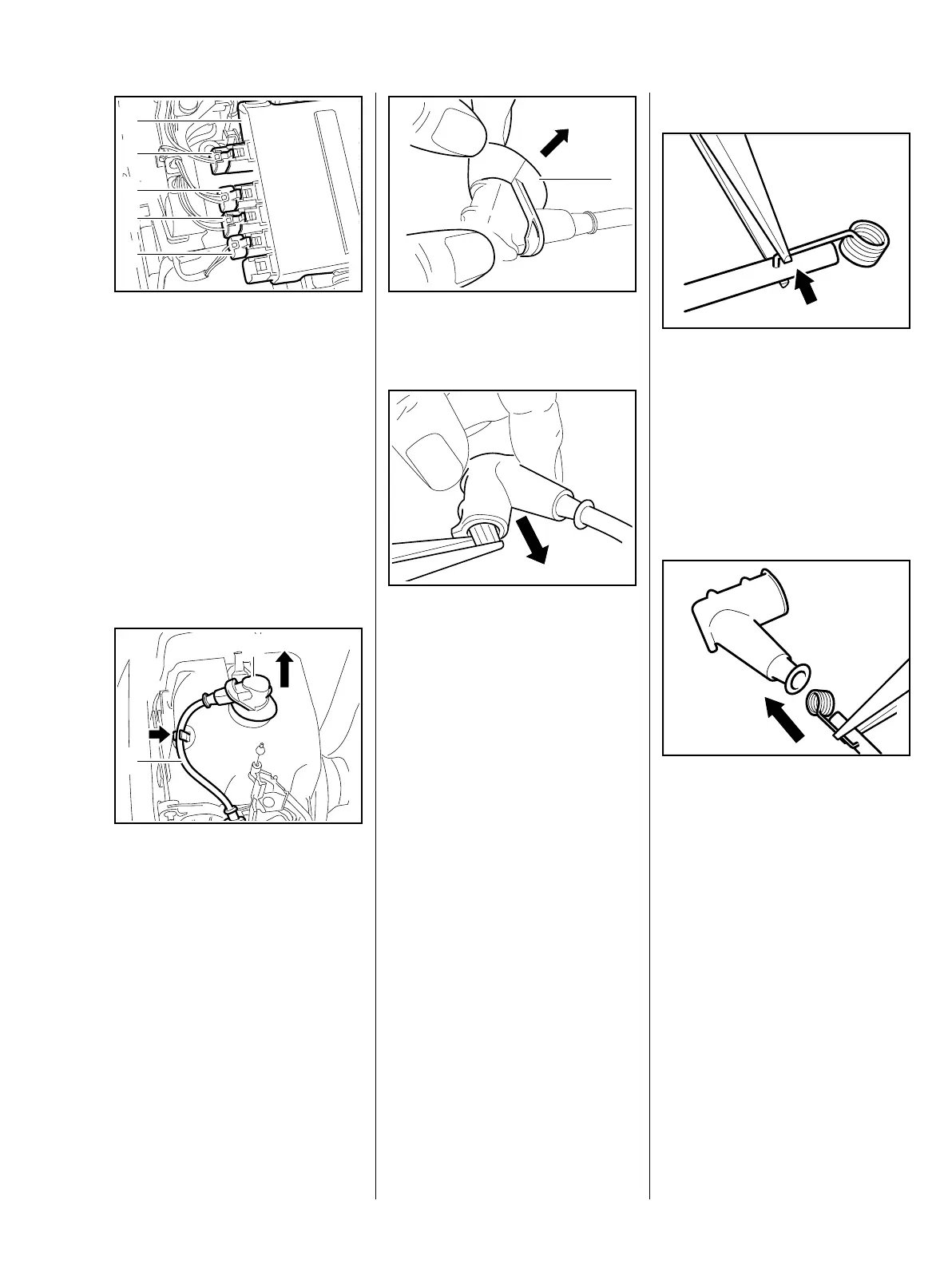

7.4 Spark plug boot
– Remove shroud, b 6.4
: Unplug spark plug boot (1) and
pull ignition lead (2) from cable
guide (arrow)
1307RA272 TG
1
2
3
4
5
1307RA265 TG
1
2
: Remove the cover (1) from the
spark plug boot
: Use suitable pliers to pull the
torsion spring out of the spark
plug boot
– Unhook the torsion spring from
the ignition lead
– Pull the boot off the ignition lead
1307RA037 TG
1
370RA201 TG
Installation
– With a new ignition module, use a
pointed tool to pierce the center
of the new lead's insulation
approx. 15 mm from the end of
the ignition lead
: Pinch the hook of the torsion
spring into the center of the
ignition lead (arrow)
– Coat the inside of the spark plug
boot with STIHL press fluid,
b 13
: Push the ignition lead and torsion
spring into the spark plug boot
376RA136 TG
376RA136 TG
