– Apply STIHL press fluid to the
guide of the support foot, b 13
: Push the support foot (1) into the
guide on the tank housing on the
side of the tank filler port
: Then press the support foot (1)
into the retainers (arrows)
: Screw in the screw (1) and
tighten it
– Reassemble remaining parts in
reverse order
1307RA351 TG
1
1307RA352 TG
1

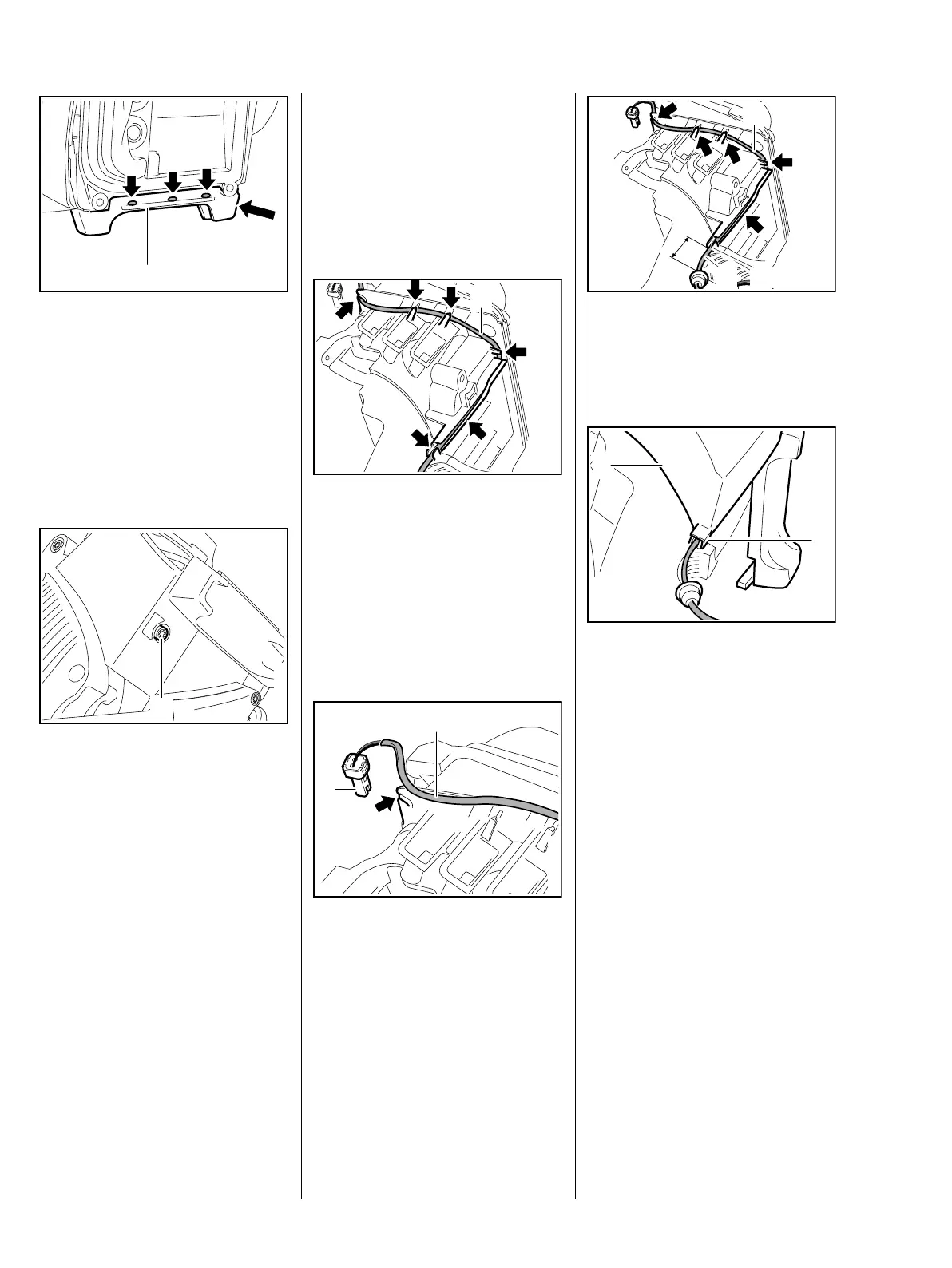

9.6.3 Wiring harness solenoid
valve (water connection)
– Remove the air baffle, b 9.6.2
– Remove the solenoid valve,
b 4.1.3
: Pull the wiring harness (1) out of
the guides (arrows)
Installation
Using the wiring tool
5910 890 4000, press the leads
completely into the guides, b 1.1.
: Orient the wiring harness (1) so
that the plug (2) is located at the
top guide (arrow)
– Install the solenoid valve,
b 4.1.3
1307RA353 TG
1
1307RA354 TG
2
1
: Place the wiring harness (1) into
the guides (arrows) so that the
protective tube (2) protrudes on
the bottom guide (3) 35 mm
The air baffle (1) must engage with
the tab (2) via the guide of the wiring
harness – Do not pinch the wiring
harness.
– Fit the air baffle, b 9.6.2
– Reassemble remaining parts in
reverse order
1307RA355 TG
35 mm
2 3
1
1307RA360 TG
2
1
