Stihl TS 500i - 10 Actuating Lever; Switch Shaft; Throttle Trigger

91TS 500i
10. Actuating lever
10.1 Switch shaft
The following operating conditions
are set with the switch shaft:
– Position "STOP" or "0" = Engine
off – ignition off
– Position "F" = Starting position
– Engine is running or can start

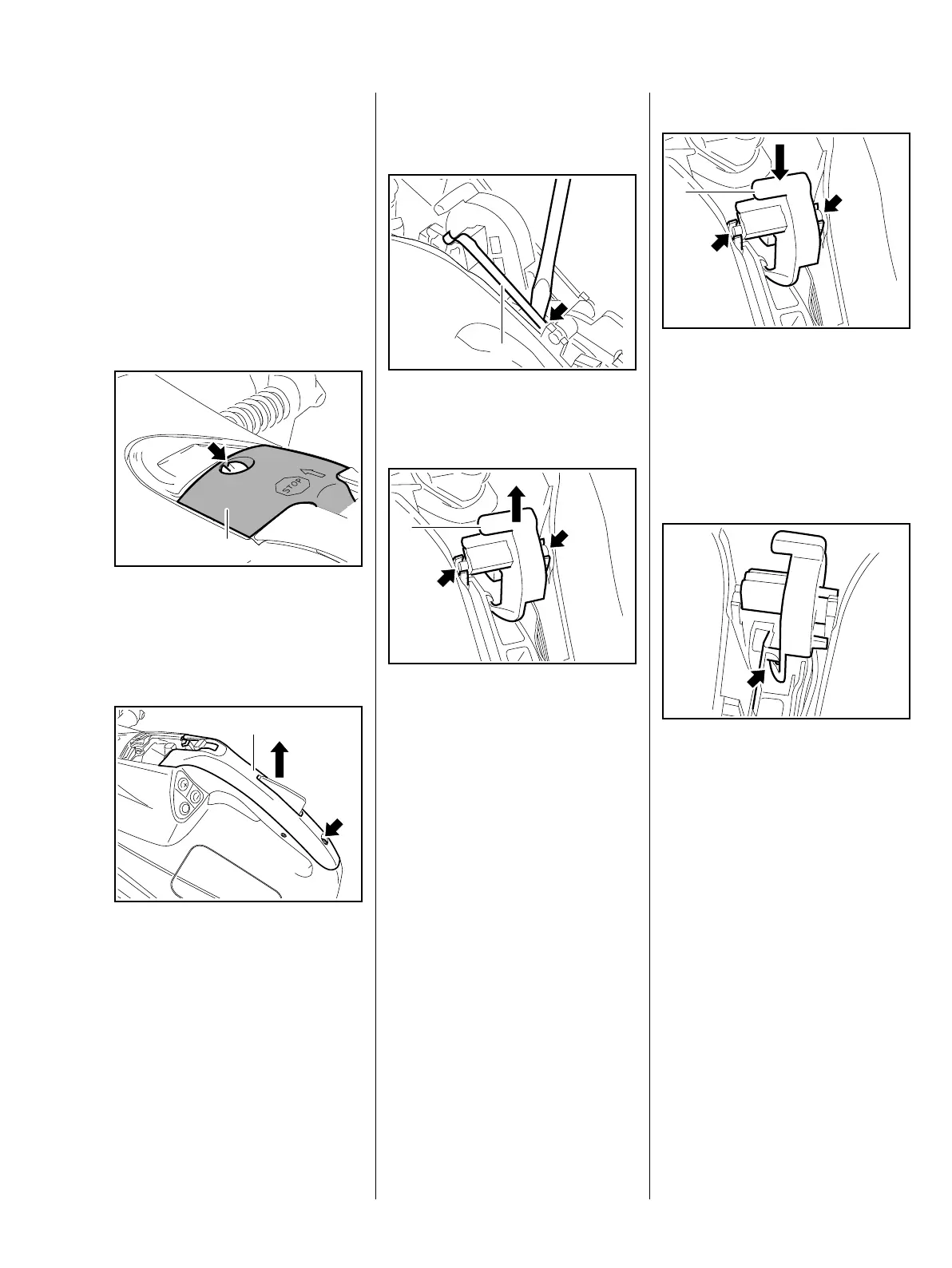

Removal
: Remove the screw (arrow)
– Screw remains in cap
: Remove the cap (1) with screw
– Set the switch shaft to position
"STOP" or "0"
: Remove the screw (arrow)
: Remove handle molding (1)
1307RA050 TG
1
1307RA358 TG
1
– Unhook the torsion spring on the
trigger interlock
: Pry the leaf spring (1) out of the
mount (arrow)
: Pull the switch shaft (1) out of the
bearing points (arrows)
– Examine the individual parts,
replace if necessary
1307RA253 TG
1
1307RA254 TG
1
Installation
: Align the switch shaft (1) – the
larger bearing journal must be on
the side of the switch
: Press the switch shaft (1) into the
bearing points (arrows) until it
clicks into place
The peg (arrow) must engage in the
throttle trigger.
1307RA242 TG
1
1307RA243 TG
