27TS 500i

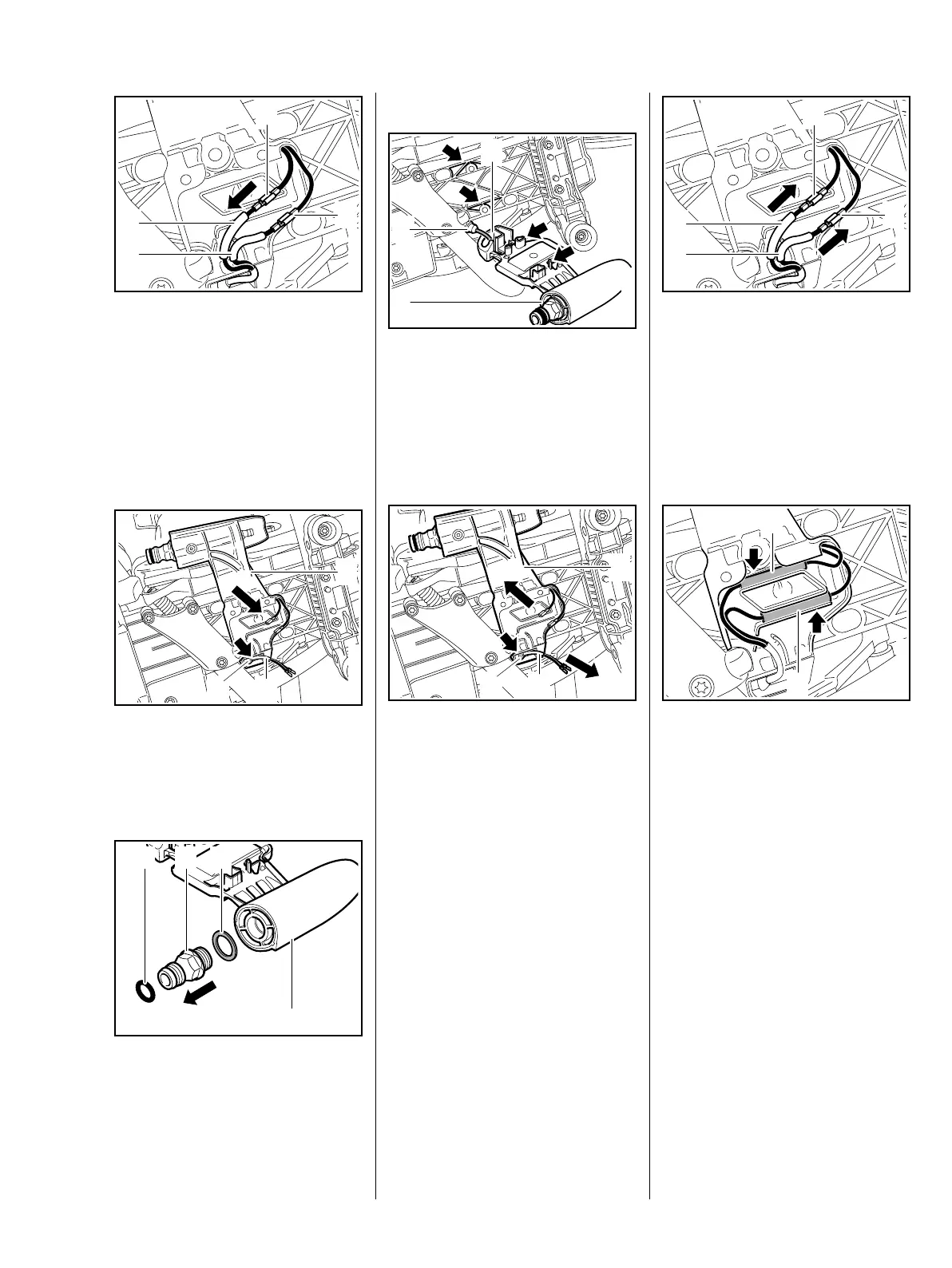

: Push insulating tubes (1) off the
plug connections (2, 3)
: Disconnect plug
connections (2, 3)
– Pull insulating tubes off the wiring
harness
: Pull solenoid valve (1) from the
bushing (2) and remove, pull
wiring harness (3) through the
opening (arrow)
: Check solenoid valve (1),
unscrew hose connection (2) if
necessary, replace sealing
ring (3) and O-ring (4)
1307RA005 TG
2
3
1
1
1307RA006 TG
1
32
1307RA016 TG
34 2
1
Installation
: Orient solenoid valve (1) so that
the raised parts (arrows) engage
in the profiles (arrows)
: Push wiring harness (2) into the
opening (3)
: Pull wiring harness (1) through
the opening and fit solenoid
valve (2), pushing the
bushing (3) into the mount
(arrow) – the bushing (3) must be
completely seated in the mount
1307RA007 TG
1
2
3
1307RA008 TG
2
13
: Push insulating tubes (1)
into place and completely
push together the plug
connections (2, 3)
– Leads can be interchanged
: Slide insulating tubes (1) over the
plug connections, b 1.1
: Press insulating tubes with plug
connections (1, 2) completely
into the guides (arrows)
– Align insulating tubes with plug
connections in the middle of the
guides
1307RA010 TG
2
3
1
1
1307RA011 TG
1
2
