Operation 4
General commissioning

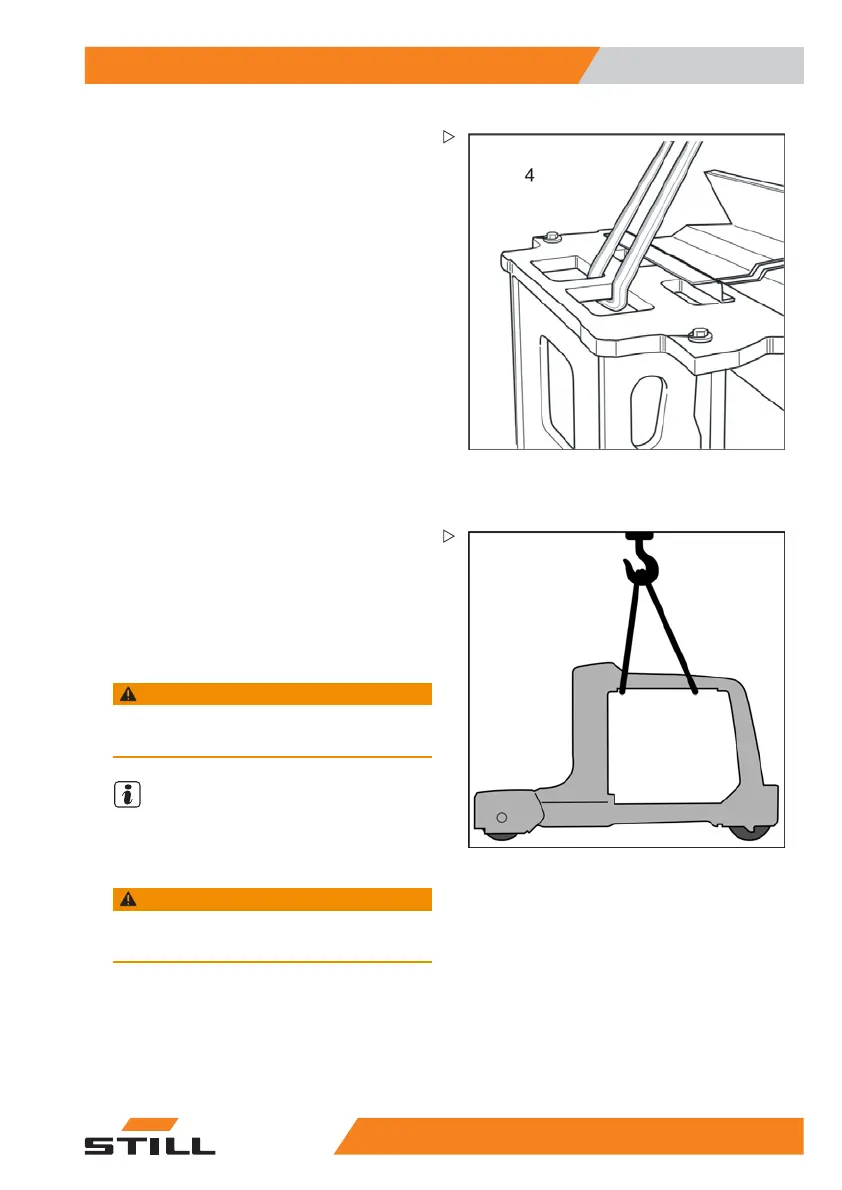

Lift mast, lower lifting point
At the lower end, a textile strap can be wound
around the middle crosspiece in the beam
support of the cab (4).
Loading the chassis
Electronic elements such as sensors and
antennas can be installed at different places in
the chassis according to the truck design. The
ground clearance of these elements is very
low. As a result, particularly when mounting
the chassis on a forklift truck fork and when
fitting supports, make sure that no pressure is
applied to these elements. Before mounting
on a forklift truck fork or before fitting a support,
perform a visual inspection to determine
whether and where such elements should
be mounted on the industrial truck in question.
Hooking the chassis on
The cross beams above the battery compart-
ment serve as lifting points for the chassis. To
protect the paintwork of your industrial truck,
we recommend that you always use textile
slings. Shims protect the harnesses against
sharp edges.
WARNING
If the chassis is
to be moved using the crane, always
remove the batter
y.
NOTE
The chassis must always be mechanically
braked unless the industrial truck is actually in
operation.
WARNING
Hydraulic oil can escape through disconnected
hydraulic connections.
523
1 804 2502 EN - 11/2017 45
