C7000 INSTRUCTIONS fOR a/C UNITS
Room
temp.
SP
Fresh air-/
exhaust air
louver
Circulating
air louver
Control

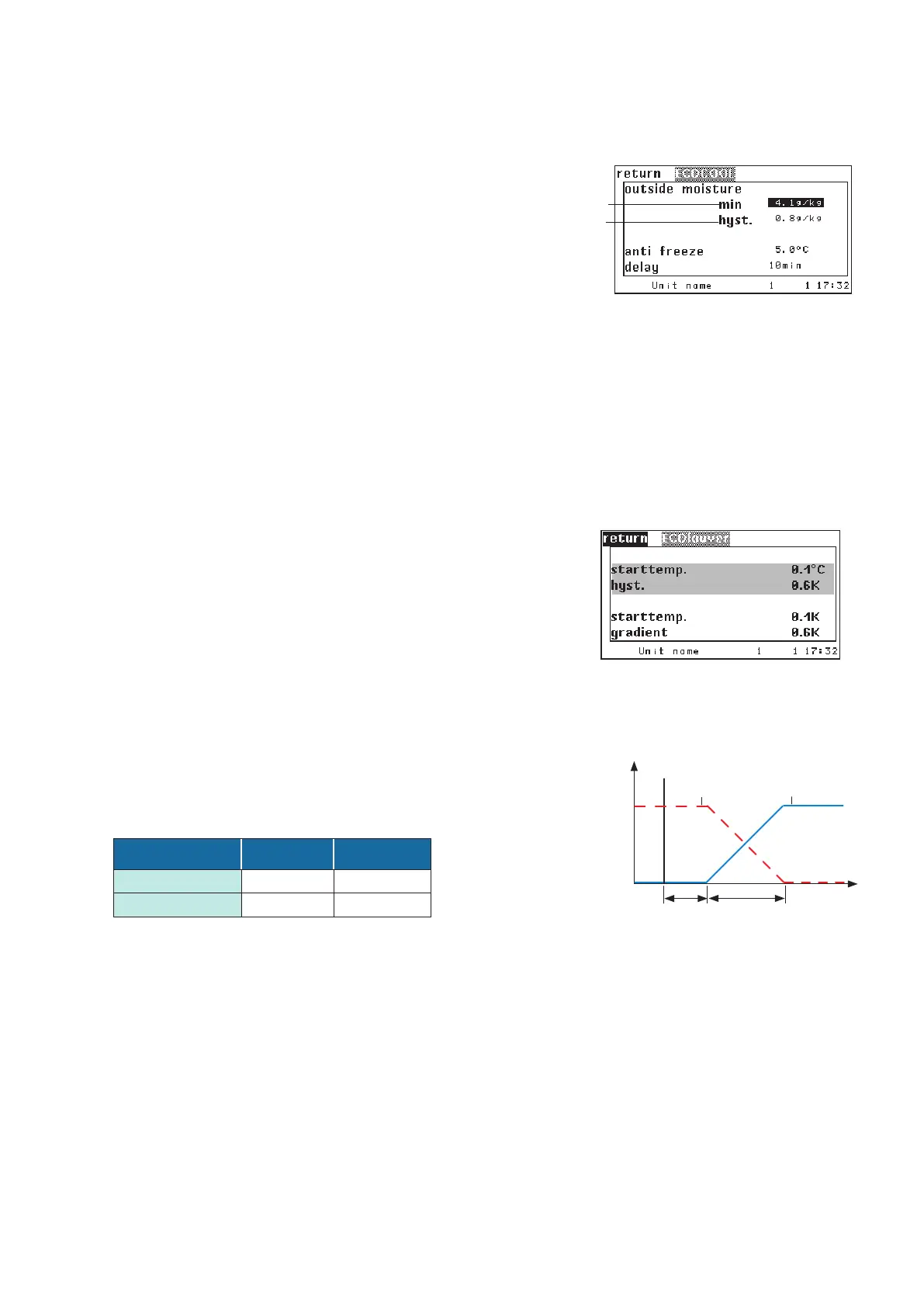

Control in FC mode
The room temperature is controlled by the opening of the Ecocool
louvers. The fan runs with the constant basic speed
1
.
The start temperature
➊ for the control must be entered as a positive
difference to the air temperature setpoint. In the fourth line you can
set the gradient
➋, which defines the range, in which the fresh air
and exhaust air louver opens from 0 to 100% and the circulating air
louver closes in the same way.
Louver
opening
SP: Room temperature setpoint
1
Fan speed table
3
rd
Enabling condition (optional)
A third enabling condition can be defined on request. In the menu
beside a value for the outside moisture content can be defined,
which, if passed under, disables the free cooling.
Only when this value plus the adjustable hysteresis is exceeded, free
cooling is again enabled.
To measure the outside moisture content you need a sensor with the
parameterised sensor purpose "outside moisture content".
Fan speed Stand alone Zone oper.
Basic speed nmax nmaxZone
Maximum speed 100% nmax
eco lv start 0.1
eco lv grad 0.6
omc min 4,0
omc hys 1,0
Operate
.../Components/cooling/
ECOlouver
.../Values/ECOCOOL/more
Operate
