© STULZ GmbH – all rights reserved EN/06.2019/G57
C7000 INSTRUCTIONS fOR A/C UNITS
Setpoint
Humidity
Humidific.
Start
Dehumidif.
Start
Dehumidif.
Hysteresis
Humidific.
Hysteresis
1
st
Enabling condition
Dehumidific. hysteresis
Humidific. hysteresis
ECO
Start temp.
OT
ECO
Hysteresis
2
nd
Enabling condition
%rel.hum.
on
off
on
off
RT: Room air temperature
OT: Outside air temperature
RT – OT
Anti-freeze
temp.

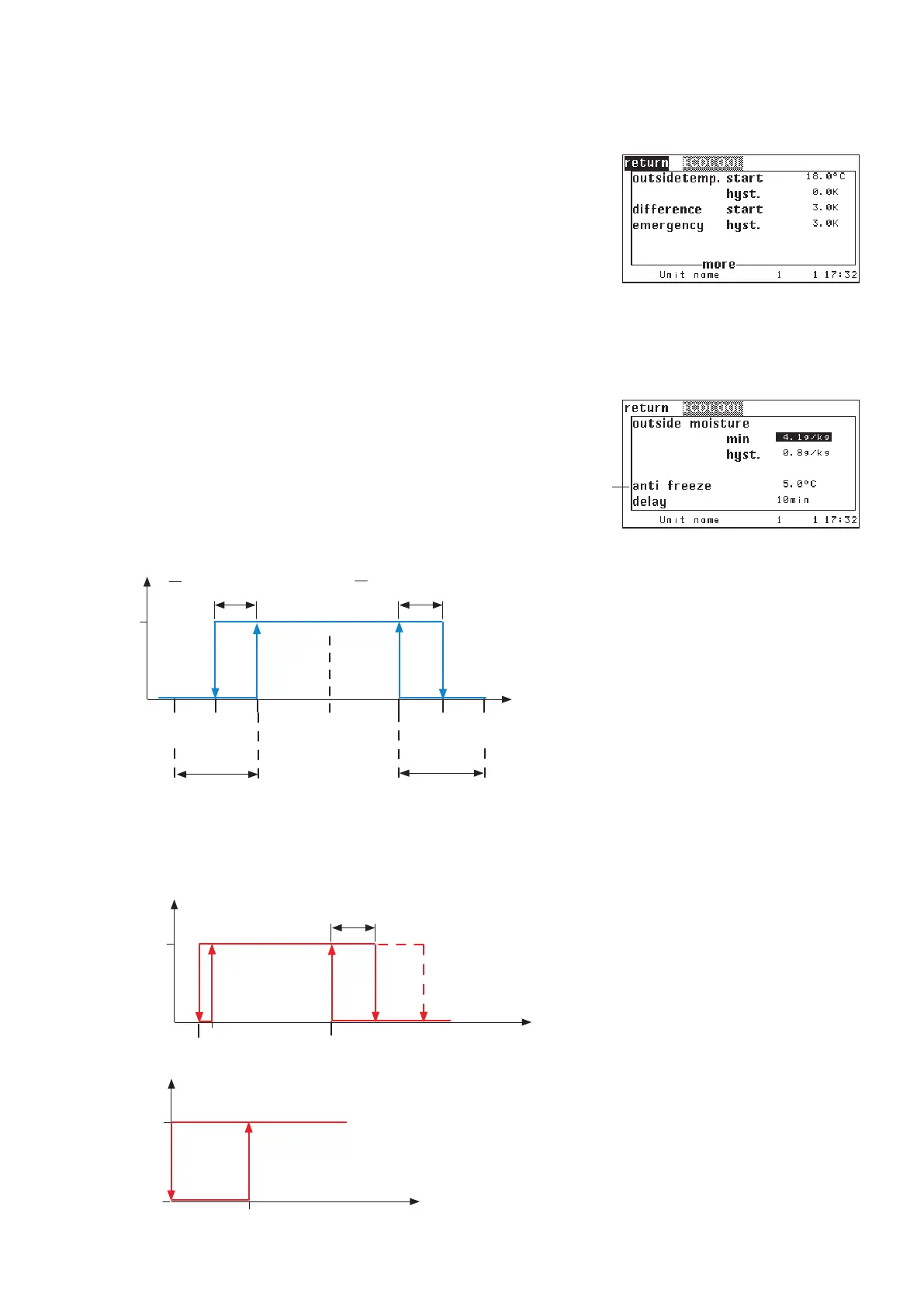

The Ecocool function requires the set-
ting of start values and hysteresises for
the humidifier and the dehumidification.
on
off
FC mode
Free cooling is enabled, when:
1. room humidity is within determined limits (see diagram).
2. outside air temperature is within defined limits.
- upper limit: EcoCool start temperature
➊.
respectively:
Ecocool start temperature ➊ + Eco hysteresis ➋ .
- lower limit: anti-freeze temperature
➎
respectively: anti-freeze temp. ➎ + fix hysteresis of 1K.
Above the upper outside air temperature limit the enabling is pos-
sible as soon as the outside air temperature is lower than the room
temperature by an adjustable temperature difference
➌ .
eco temp 18.0
eco hys 2.0
eco diff 3.0
eco frost 5.0
humi 1 start 10,0
humi 1 hys 1,0
dehumi start 10,0
dehumi hys 1,0
.../Values/ECOCOOL
Operate
