ID glob.adr. dev.type reliab. cong.
0 - unknown 0% 0
1 - unknown 0% 0
2 - unknown 0% 0
3 - unknown 0% 0
4 1 IO-Controller 100% 1
5 1 IO-Controller 100% 1
6 1 IO-Controller 100% 1
7 1 IO-Controller 100% 1
8 - unknown 0% 0
9 - unknown 0% 0
10 - unknown 0% 0
11 - unknown 0% 0
12 - unknown 0% 0
13 - unknown 0% 0
14 - unknown 0% 0
15 - unknown 0% 0
16 255 AdvancedTerminal 100% 1
17 255 AdvancedTerminal 100% 1
18 - unknown 0% 1
19 255 AdvancedTerminal me 1 conict
BUS ADDRESS CONFLICT AT ADRESS ‚ME‘ = 19 DETECTED.
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS
The other C7000AT with the bus address 19 continues operation without any interference.
After the bus address has been assigned properly the address conflict will be solved automatically.
An address conflict can only be displayed at the unit, which causes the address conflict, because it excludes
itself immediately from bus communication. If this unit is a C7000AT, this is displayed on the display. An
address conflict can only be displayed at unit "ME".
If the unit is a C7000IOC the error LED on the board flashes, the state of the bus configuration can then be
requested by using the service port.

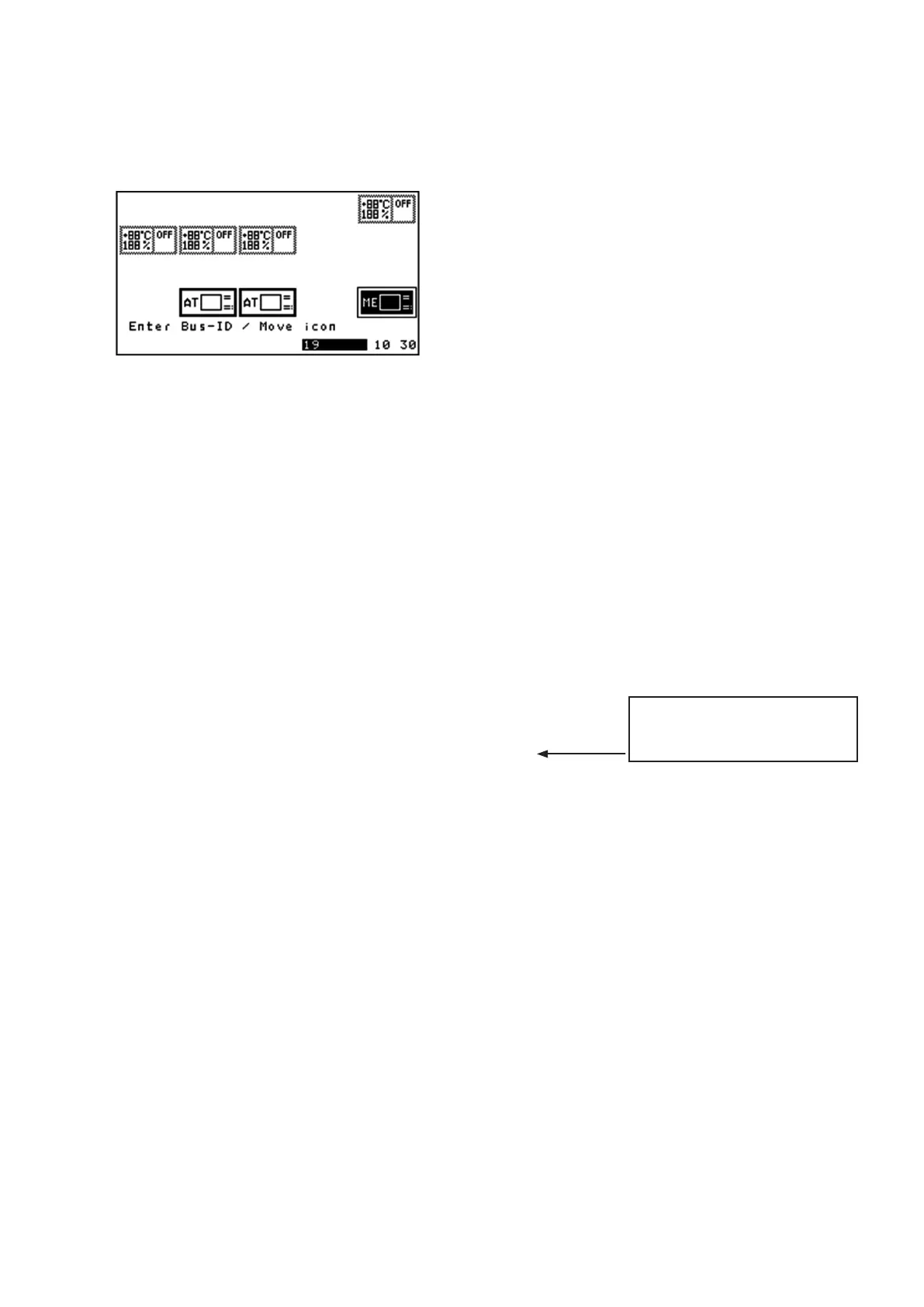

The user is requested to choose another bus address at the C7000AT which has detected the address con-
flict. For it the following positioning window is displayed.
If an address conflict exists, this one
is indicated for the corresponding bus
participant.
