Stulz C7000 - Page 45

45
13 14 15 16 T/°C
T/°C
20,5
20
Tmax
20 21 22 23 24 T/°C
T/°C
18,5
18
17,5
Tmax
Tmin
20 21 22 23 24 T/°C
T/°C
18,5
18
17,5
Tmax
T
min
➎
➏
© STULZ GmbH – all rights reserved EN/06.2019/G57
C7000 INSTRUCTIONS fOR a/C UNITS
The corresponding commands:
Actual value
Supply air sensor
Setpoint
Room air
Temperature
Actual value
Room air sensor
Setpoint
Supply air
Temperature
Actual value
Room air sensor
Setpoint
Supply air
Temperature
Start value 1 > Start value 2 Start value 1 < Start value 2
Values
Air / Control type (Part 3)
With the room control with supply air limitation as for supply air control with
room air limitation you can set temperature limit values.
Above/below the limit value the raised/reduced temperature setpoint stays at
the limit value.
Lower limit value (T
min): ➎
Upper limit value (Tmax): ➏

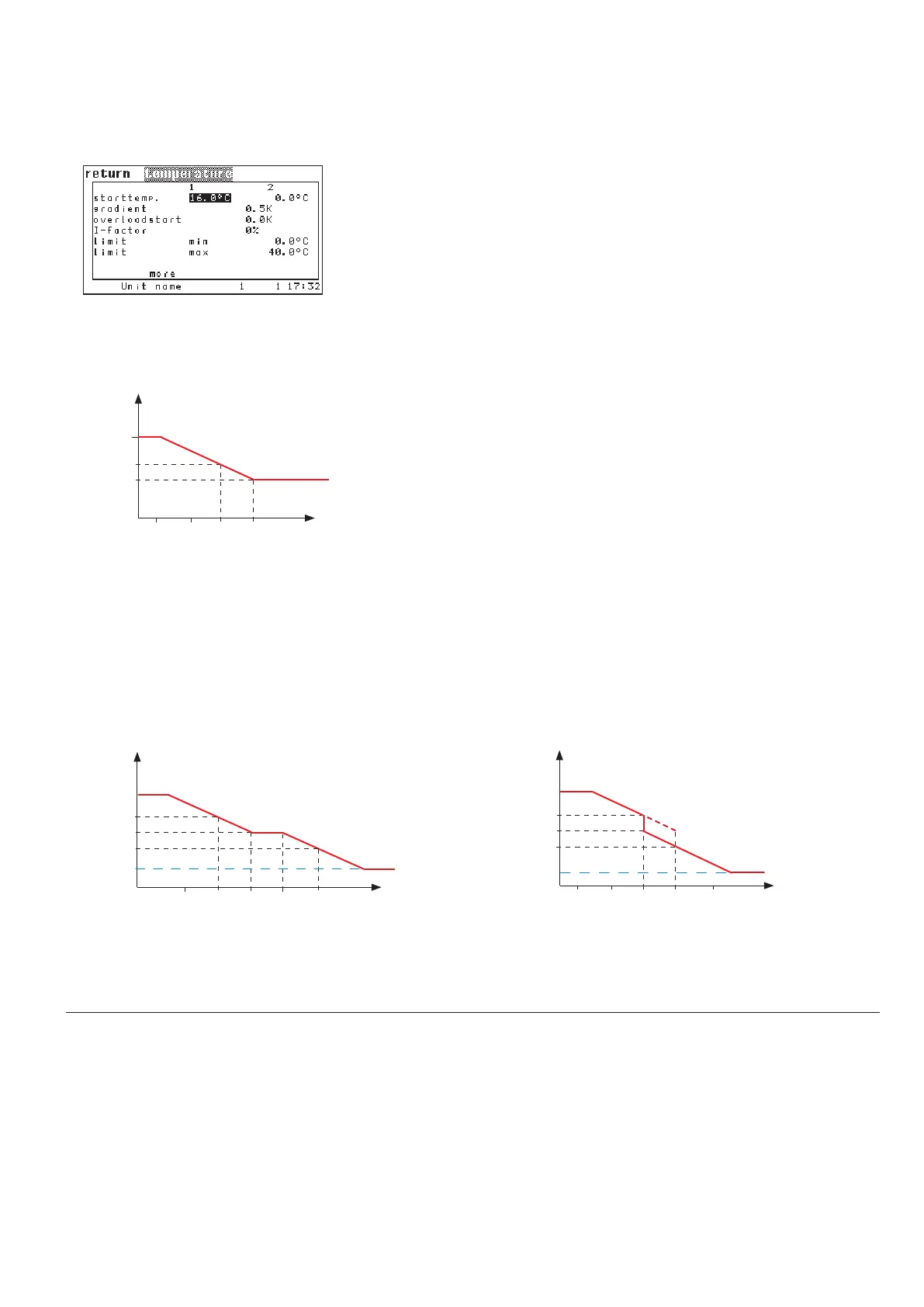

With adjusted temperature limit values the control diagrams change as shown
beside (room, supply air limited) respectively below (supply air, room limited).
Supply air, room limited
Room, supply air limited
lim mintemp 17.8
lim maxtemp 21.3
Config
