The corresponding commands:
Components/Cooling/Valves
EEV (Electronical Expansion Valve)
Setting for Carel valve

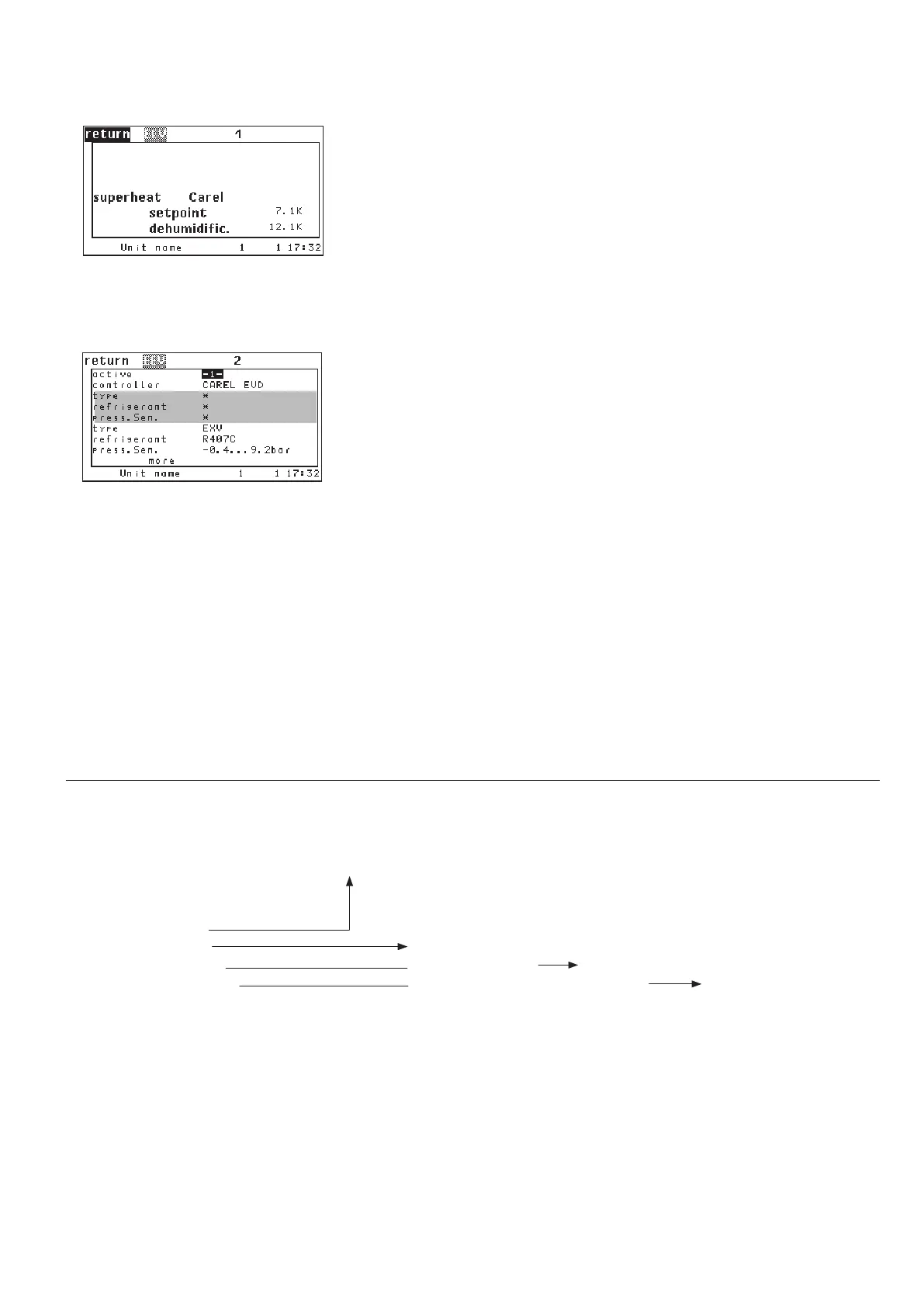

Here you can adjust the setpoint for the superheating in normal operation ➊
and the setpoint for the superheating in case of dehumidification
➋. Both valu-
es must be entered as differences to the evaporation temperature.
Operate
The suction gas pressure and temperature are measured by a pressure sensor
and a temperature sensor and these values are transmitted via an EEIO board
to the controller. With these parameters the superheat is controlled by the
expansion valve.
➊. By the setting 1 the valve is configured and the failure of the pressure sen-
sor, the temperature sensor and the stepper motor for the valve control are
monitored and displayed by an alarm.
Setting 0 means: the valve is not configured.
➋. By this parameter the valve controller is determined. "ALCO VCM" and
"CAREL EVD" can be selected. Depending on the controller adjusted here dif-
ferent parameters can be adjusted. The parameters on a grey background are
not adjustable for the Carel controller.
➌. Here the valve type is determined.
➍. Setting of the refrigerant in use.
➎. Setting of the pressure sensor in use.
Config
Config
Refrigerant:
1: R22
2: R134a
3: R404A
4: R407C
5: R410A
6: R507A
7: R290
8: R600
9: R600a
10: R171
11: R744
12: R728
13: R1270
14: R417A
15: R422D
16: R413A
17: R422A
18: R423A
19: R407A
20: R427A
Valve type:
1: Carel EXV
2: Alco EX4
3: Alco EX5
4: Alco EX6
5: Alco EX7
6: Alco EX8 330 Hz
7: Alco EX8 500 Hz
8: Sporlan SEI 0.511
9: Sporlan SER 1.520
10: Sporlan SEI 30
11: Sporlan SEI 50
12: Sporlan SEH 100
13: Sporlan SEH 175
14: Danfoss ETS 25B
15: Danfoss ETS 50B
16: Danfoss ETS 100B
17: Danfoss ETS 250
18: Danfoss ETS 400
19: 2 Carel EXV swit-
ched in parallel
20: Sporlan SER(I)
Pressure sensor:
1: −1..4,2 barg
2: −0,4..9,3 barg
3: −1..9,3 barg
4: 0..17,3 barg
5: 0,85..34,2 barg
6: 0..34,5 barg
7: 0..45 barg
8: −0,5..7 barg
9: 0..10 barg
10: 0..18,2 barg
11: 0..25 barg
12: 0..30 barg
13: 0..44,8 barg
14: remote −0,5..7 barg
15: remote 0..10 barg
16: remote 0..18,2 barg
17: remote 0..25 barg
18: remote 0..30 barg
19: remote 0..44,8 barg
20: ext. signal 4..20 mA
Controller type
0: ALCO VCM
1: Carel EVD
eev 1 supset 6.5
eev 1 supsetdehum 7.2
eev 1 conf 1
eev 1 con 1
eev 1 type 5
eev 1 refrig 4
eev 1 sentype 2
Operate
