Sun Microsystems Sun Fire X4100 - Page 164

3-74 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009

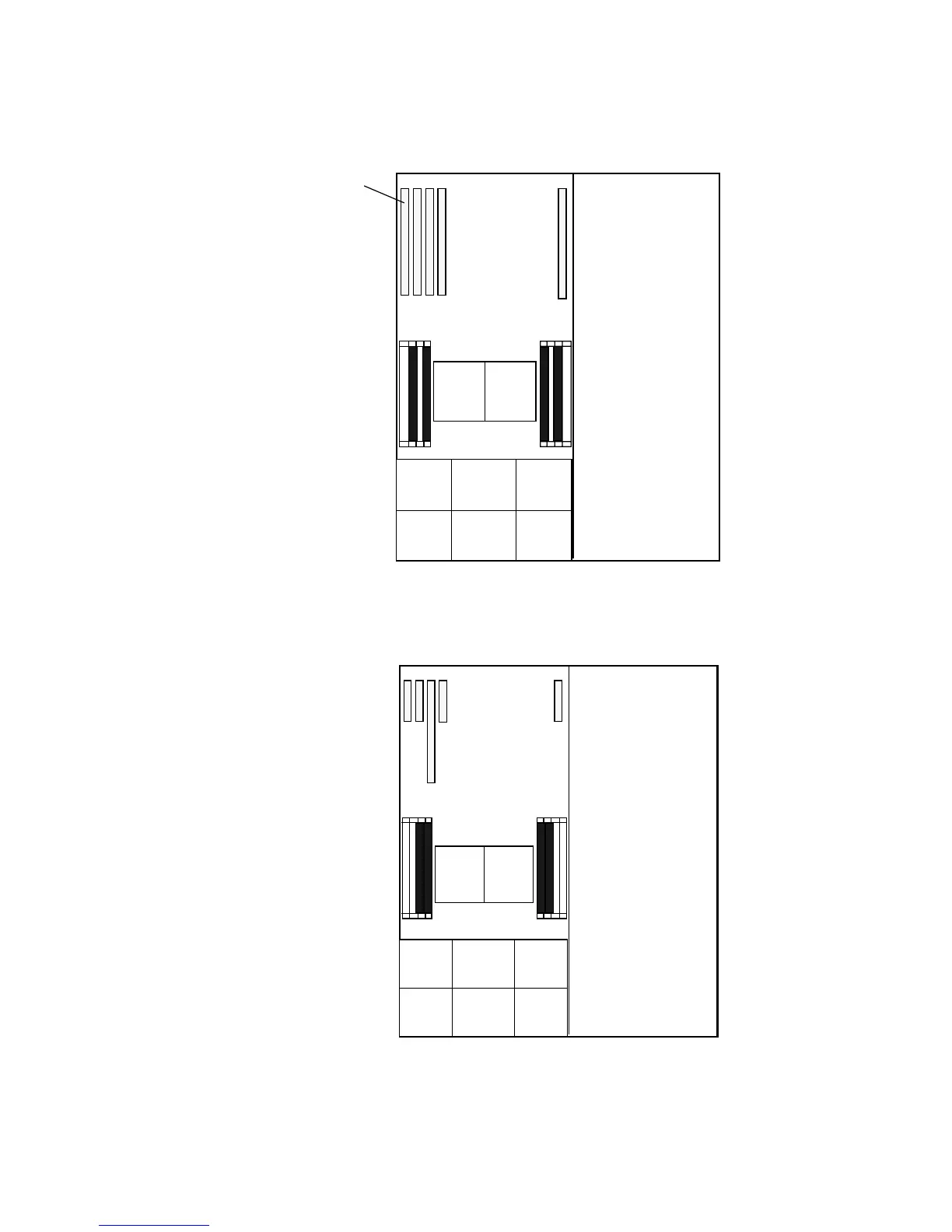

FIGURE 3-56 Designation and Speeds of PCI Slots – Sun Fire X4200
FIGURE 3-57 Designation and Speeds of PCI Slots – Sun Fire X4200 M2
FT1
FM0
FT1
FM1
FT1
FM2
FT0
FM0
FT1
FM1
FT1
FM2
CPU1 CPU0
Front panel of server
PCI1 = PCIX 133-MHz
PCI2 = PCIX 66-MHz
PCI3 = PCIX 66-MHz
PCI4 = PCIX 66-MHz
PCI0 = PCIX 100-MHz
01432
PCI slots 0 - 4
FT1
FM0
FT1
FM1
FT1
FM2
FT0
FM0
FT1
FM1
FT1
FM2
CPU1 CPU0
PCI1 = PCIE 8-lane
PCI2 = PCIX 133-MHz
PCI3 = PCIE 8-lane
PCI4 = PCIE 8-lane
PCI0 = PCIE 8-lane
01432
PCI slots 0 - 4
Front panel of server
