Sur-Gard System Five - Sg-Mlrf5; SG-MP5 Midplane; SG-S5 CFANTR - SG-CPM5 Fan Tray

4.0 Hardware Descriptions and Specifications
- 22 -
4.1 SG-MLRF5
The SG-MLRF5 houses the components of the SG-System 5 and is secured into a 19-inch rack by the SG-MLRF5-RM rails. The SG-MLRF5 ships
with the mid-plane, two CPM fans and one LCD pre-installed.

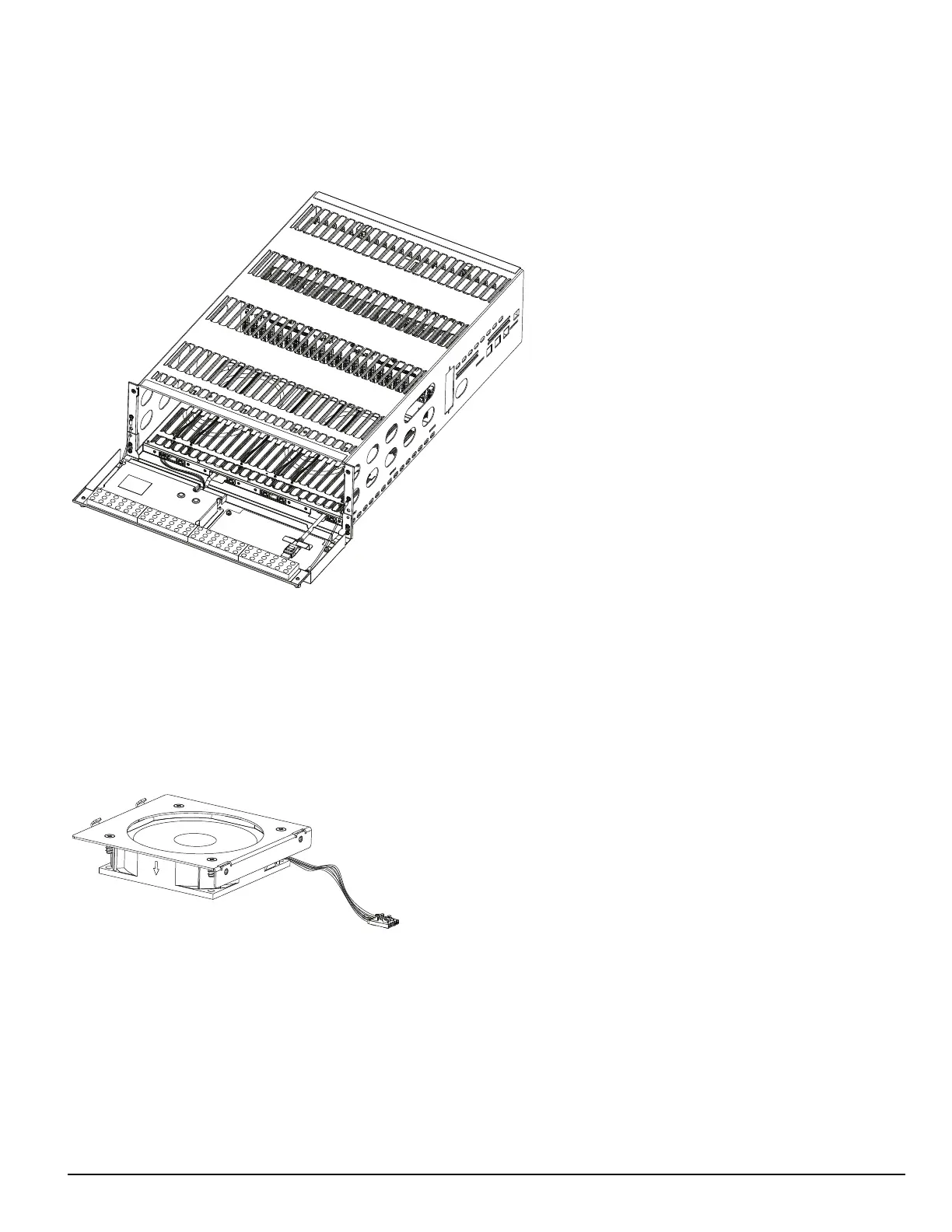

FIGURE 4-1: SG-MLRF5 rack
4.1.1 SG-MP5 midplane
The SG-MP5 interconnects system modules.
4.1.2 SG-S5CFANTR – SG-CPM5 fan tray
The SG-S5CFANTR cools the SG-CPM5 while the SG-CPM5 is running. The SG-S5CFANTR is mounted above the SG-CPM5 in the MLRF5. It
must be plugged into the SG-CPM5 to function.
FIGURE 4-2: SG-S5CFANTR
