Sur-Gard System Five - DDR3 Memory; SD Card

4.0 Hardware Descriptions and Specifications
- 35 -
4.3.3.4 DDR3 memory
The SG-DRL5-IP incorporates replaceable/upgradable DDR3 memory required for normal operation.
To replace the DDR3 Memory, follow these steps:
1. Unfasten the SG-DRL5-IP thumb screw.
2. Pull out the SG-DRL5-IP using the pull tab and remove from the SG-MLRF5 completely.
3. Push the DDR3 clips on either side of the DDR3 away from the DDR3. It should lift up automatically.
4. Slide the DDR3 out at a 45 degree angle.
5. Slide the new DDR3 in at a 45 degree angle (label up).
6. Push down until the clips engage.
7. Install the SG-CPM5 back into the SG-MLRF5.

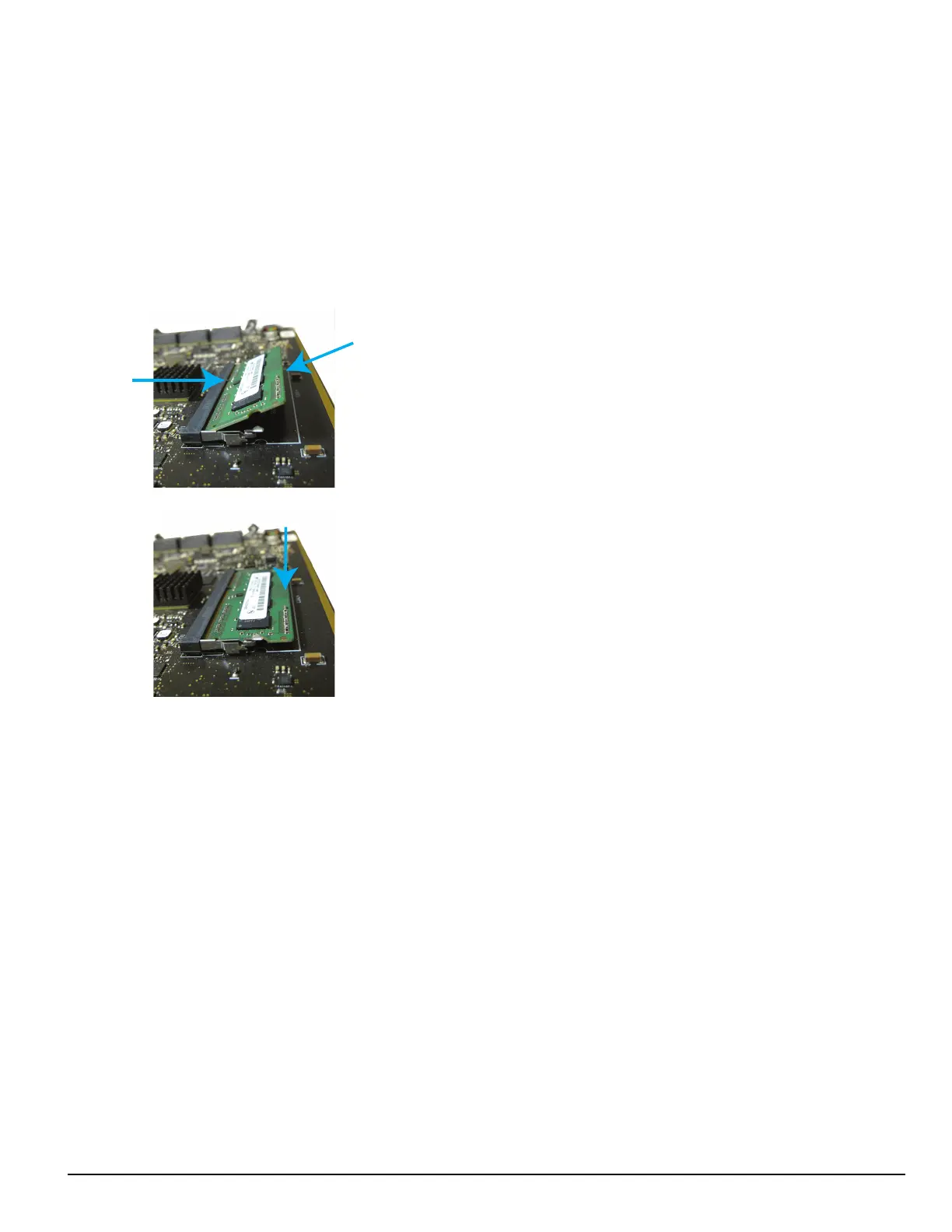

FIGURE 4-10: DDR3 Installation
*SNAP*
*SNAP*
PRESS
INSERT
ALIGN
NOTCH
4.3.3.5 SD card
The SG-DRL5-IP has an optional SD card that is used for visual verification.
NOTE: The SG-DRL5-IP does not ship with an SD card.
To replace the SD card, follow these steps:
NOTE: If the SD card is not installed already, skip step 3.
1. Unfasten the SG-DRL5-IP thumb screw.
2. Pull out the SG-DRL5-IP using the pull tab and remove from the SG-MLRF5 completely.
3. Pull the SD card out of the holder.
4. Push the new SD card in.
5. Install the SG-DRL5-IP back into the SG-MLRF5 and secure the thumb screw.
