4.0 Hardware Descriptions and Specifications
- 44 -

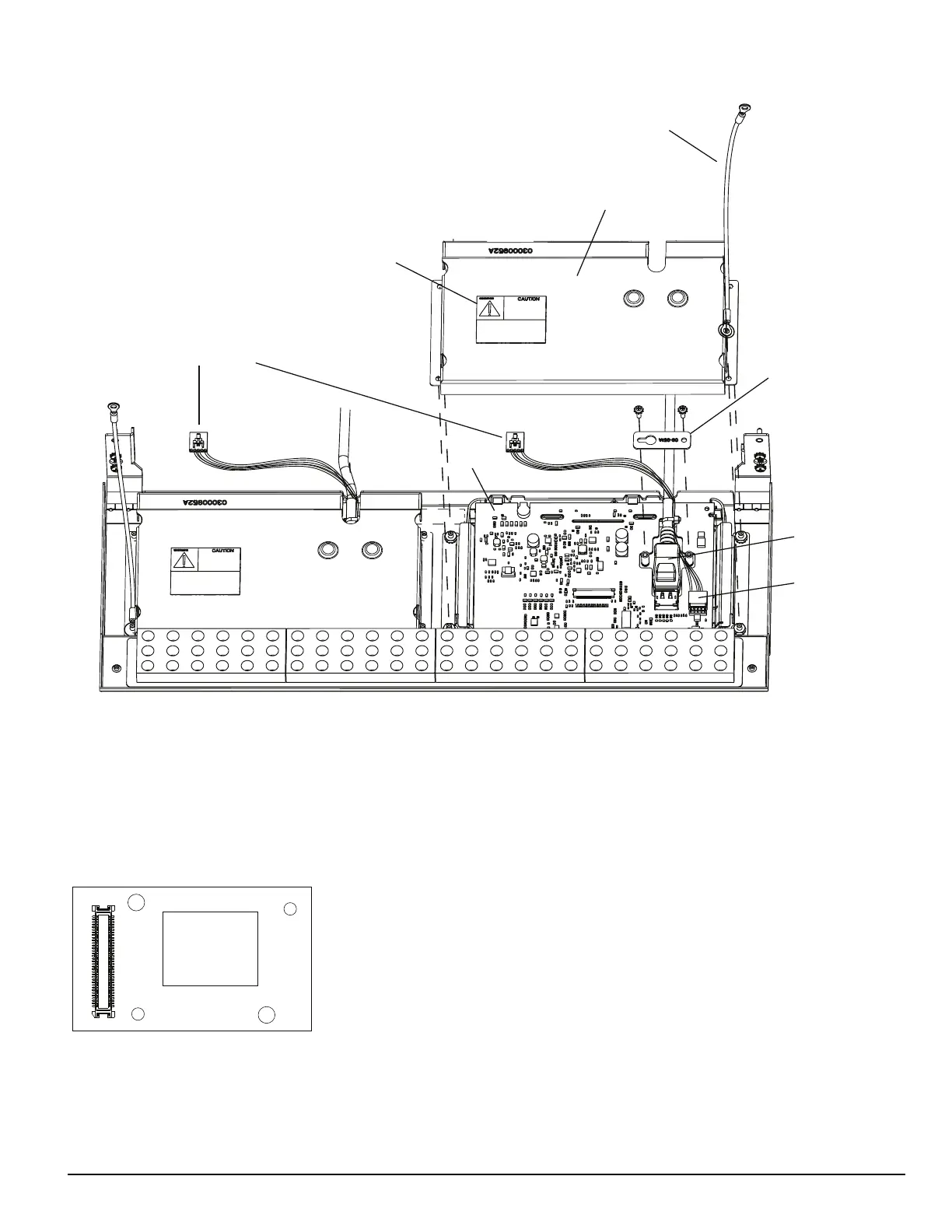

FIGURE 4-24: SG-UIB5 installation
Ground Strap
LCD Plate
Warning Label
LCD Power
Connector
(White)
Display Cable
LCD Cable
Tension Relief
LCD
LCD Power Cables (Black)
Insert with tab facing up
4.13 SG-SYS5MEM4 - Expandable EMMC
The expandable EMMC stores the account table and non-volatile event storage on the SG-DRL5-IP. On the CPM5 the expandable EMMC is used to
store the AHS Table and is only required if this function will be used with the receiver.
NOTE: The SG-SYS5MEM4 includes 250,000 AHS entries. The EMMC supports expansion up to 1,000,000 AHS entries via separate
licenses.
FIGURE 4-25: SG-SYS5MEM4
