4.0 Hardware Descriptions and Specifications
- 37 -
4.6 SG-DRL5/DRL5E/DRL5-2L - Line card
The SG-System 5 supports a maximum of 24 line cards. The SG-DRL5 PSTN cards function as a Telco interface to remote transmitters. The line card
receives alarm events from the transmitter, decoding them before forwarding the signals to the SG-CPM5 for subsequent output to the printer and auto-
mation outputs. SG-DL5 line cards ordered for the SG-System 5 are pre-assembled with SG-DRL5-ADPT and cabling.
NOTE: In order to install the DRL5 PSTN line card, the SG-S5LFANTR fan tray must be removed and the SG-S5LBRKT line card
extractor bracket must be installed.

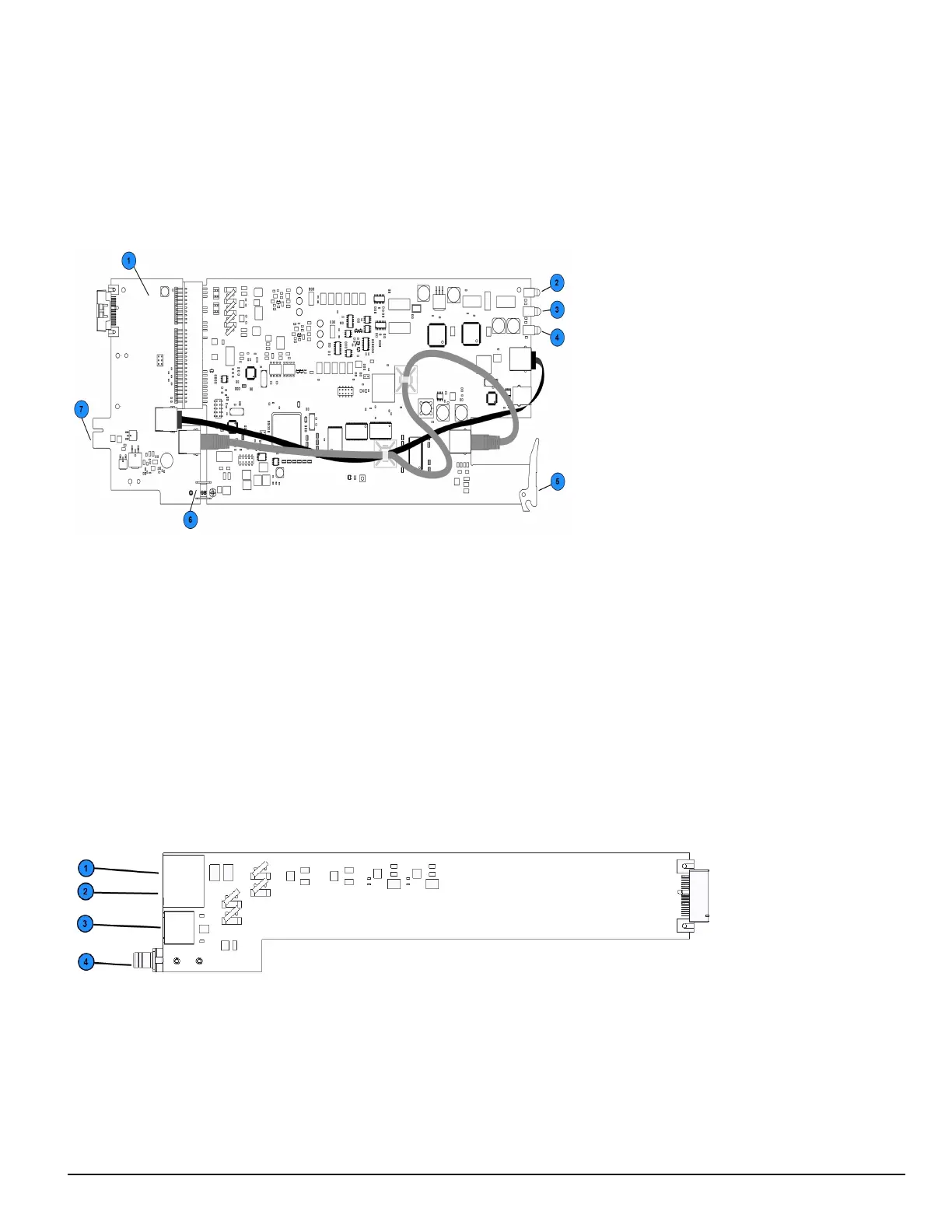

FIGURE 4-12: SG-DRL5/DRL5E/DRL5-2L line card
1. Adapter card
2. Watchdog LED
3. Channel 1 status LED
4. Channel 2 status LED
5. Extraction lever
6. Connection plate and screws
7. Edge connection
4.7 SG-DRL5-PAD - Paddle card
Each paddle card connects to a line card and provides a connection for up to two phone lines, and serial (RS232) debug. The same paddle card is used
with all variants of the line card.
FIGURE 4-13: SG-DRL5-PAD paddle card
1. Telco 1 connection
2. Telco 2 connection
3. Serial debug RJ-45 connection
4. Thumb screw
