4.0 Hardware Descriptions and Specifications
- 38 -
RJ45 Pin # DB9 DRL Port Pin # Description
1 NO CONNECTION
2 NO CONNECTION
3 2 TX
4 3 RX
5 5 COMMON/GROUND
6 NO CONNECTION
7 NO CONNECTION
8 NO CONNECTION
Serial debug pin out

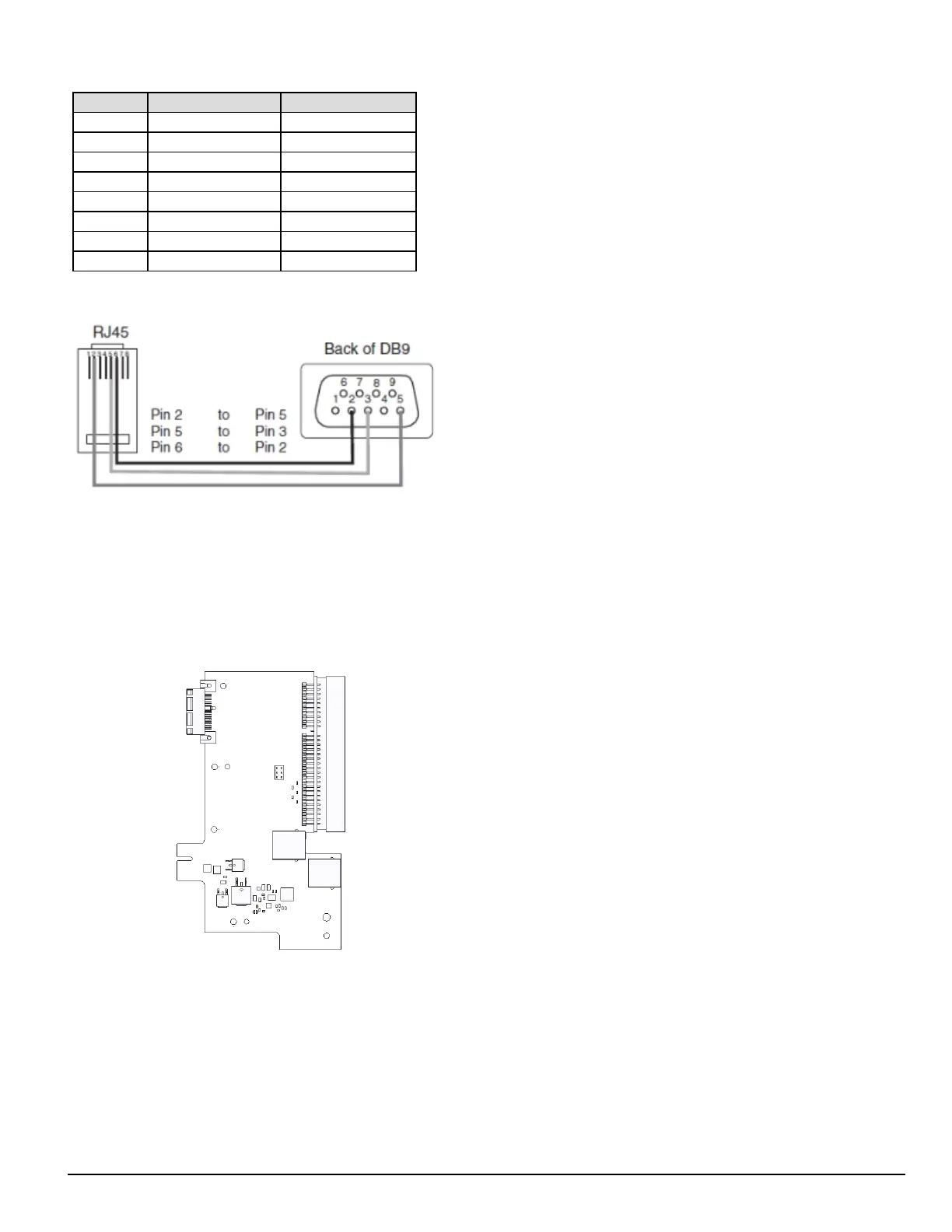

FIGURE 4-14: Serial debug pin out
4.8 SG-DRL5-ADPT - Adapter card
The SG-DRL5-ADPT adapter card provides the connections to the SG-System 5 for power and internal communications on the SG-DRL5X. It also
provides the connection for the SG-DRL5-PAD.
FIGURE 4-15: SG-DRL5-ADPT adapter card
