3.0 Receiver Setup and Operation
- 20 -

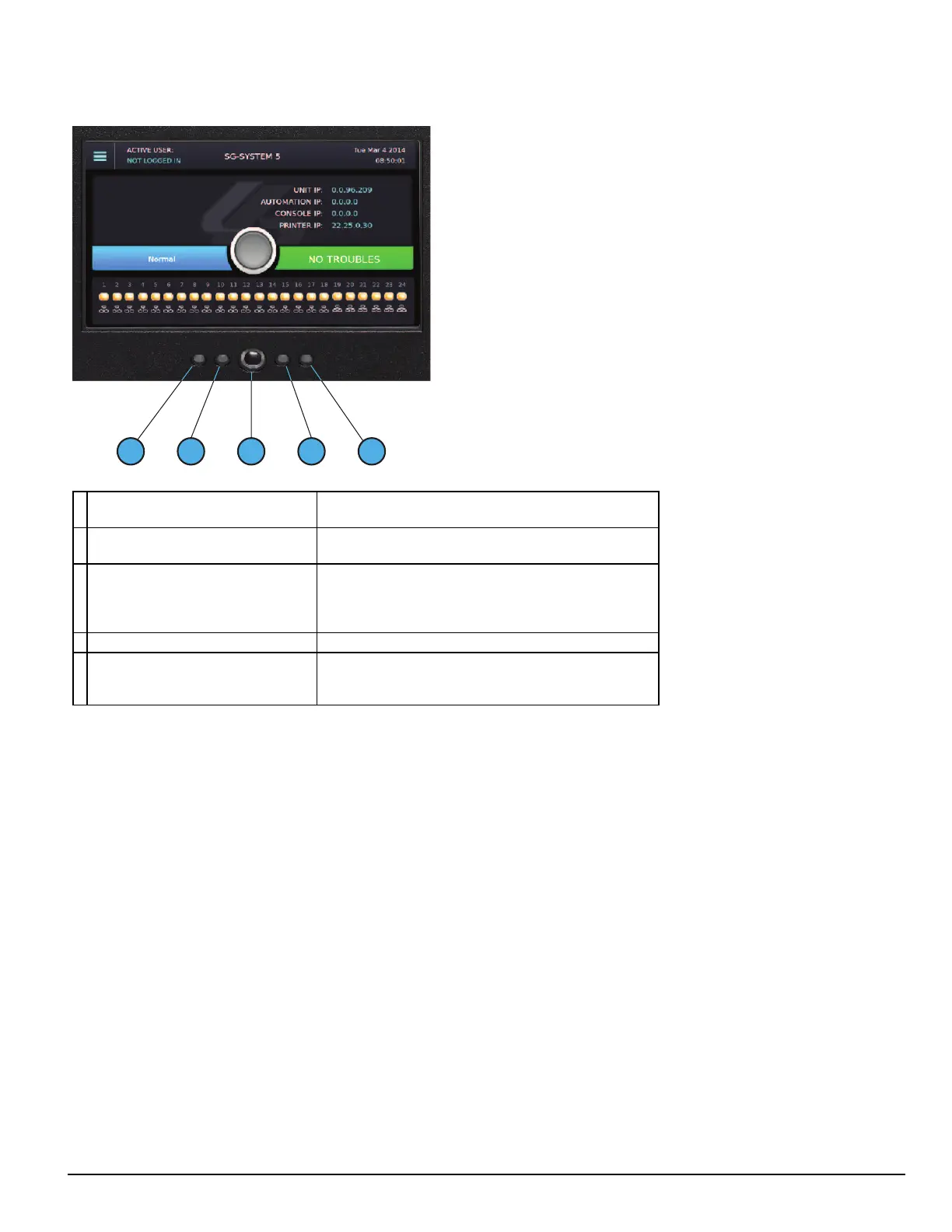

3.1.2 SG-CPM5 LEDs
1. Console Connected (Green)
ON = Console connected
OFF = Console disconnected
2. Trouble Status (Yellow)
ON = Troubles present
OFF = No troubles present
3.
Network Status
(around the home button)
Blue = 1Gb/s
Green = 100Mb/s
Orange = 10Mb/s
Red = network absent
4. Watchdog (Blue) Flashing = Normal , Off/On – SG-CPM5 failure
5. Automation (Green)
ON = Automation connected and system is active
Flashing = Automation is connected and system is in standby
OFF = Automation disconnected
