59

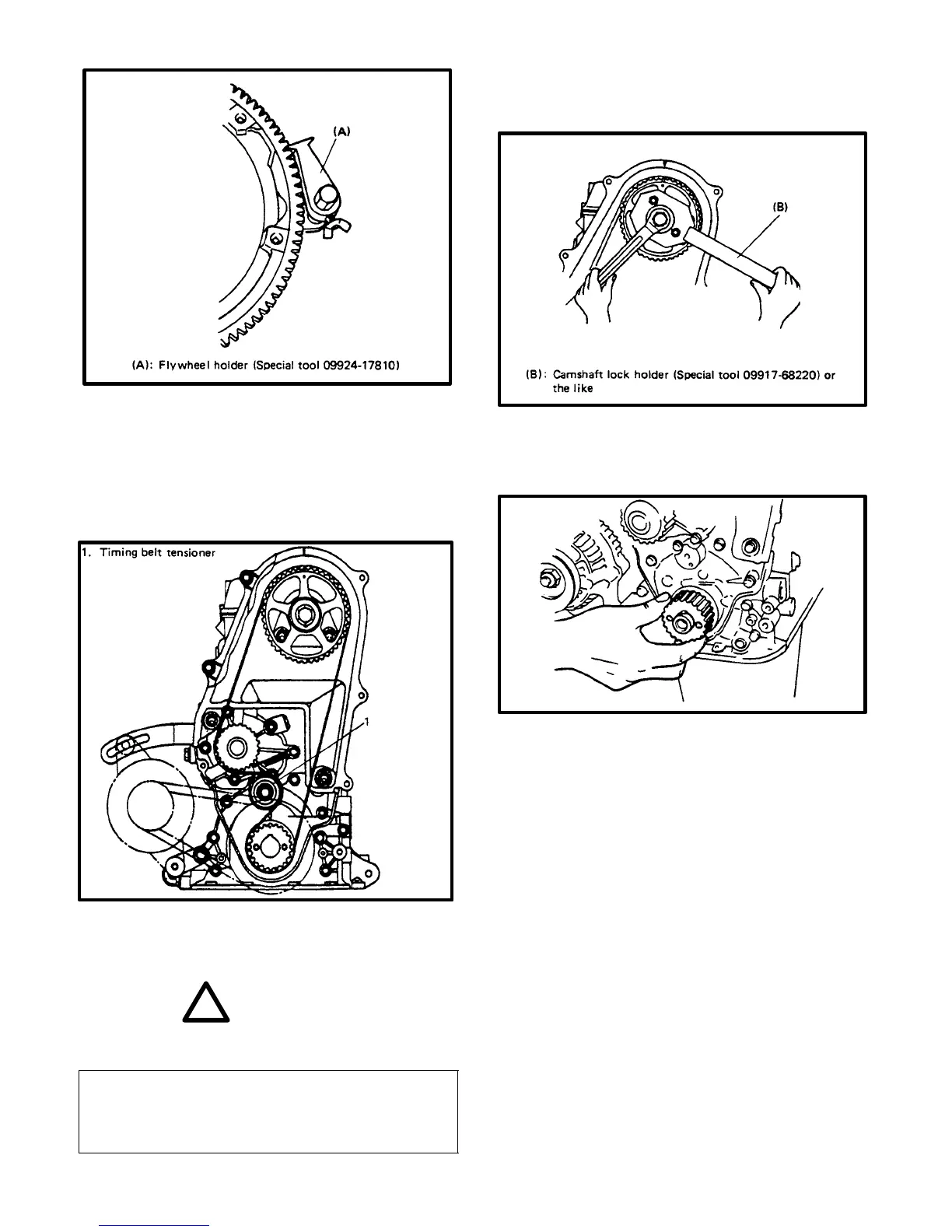

4) Remove timing belt outside cover.
5) Remove timing belt tensioner after removing a part of
the tensioner spring.
6) Remove timing belt.
CAUTION
!
When timing belt has been removed, never turn
crankshaft or camshaft.
If camshaft must be turned, turn by crankshaft
so that timing mark is deviated by 30° or more.
7) Remove camshaft timing belt pulley and key with spe-
cial tool attached, as shown, to lock camshaft.
8) Remove crankshaft timing belt pulley, and key.
9) Remove timing belt inside cover.
10) Remove water pump.
11) Remove exhaust manifold cover.
12) Take off exhaust manifold.
13) Remove exhaust manifold gasket.
14) Using an oil filter wrench, remove oil filter.
NOTE:
Be careful not to spill the oil when removing the fil-
ter.
15) Disconnect PCV (Positive crankcase ventilation
valve) hose or crankcase ventilation hose from cylinder
head cover.
16) Remove intake manifold with throttle body.
17) Remove water inlet pipe.
18) Take off valve cover.
