period, which is equal to Integration Period multiplied by Repetition Cycles or after stopping a
measurement manually.
Summary Results are saved in the same file with Logger Results. Blocks of summary results are
recorded to the file in the end of every measurement cycle.

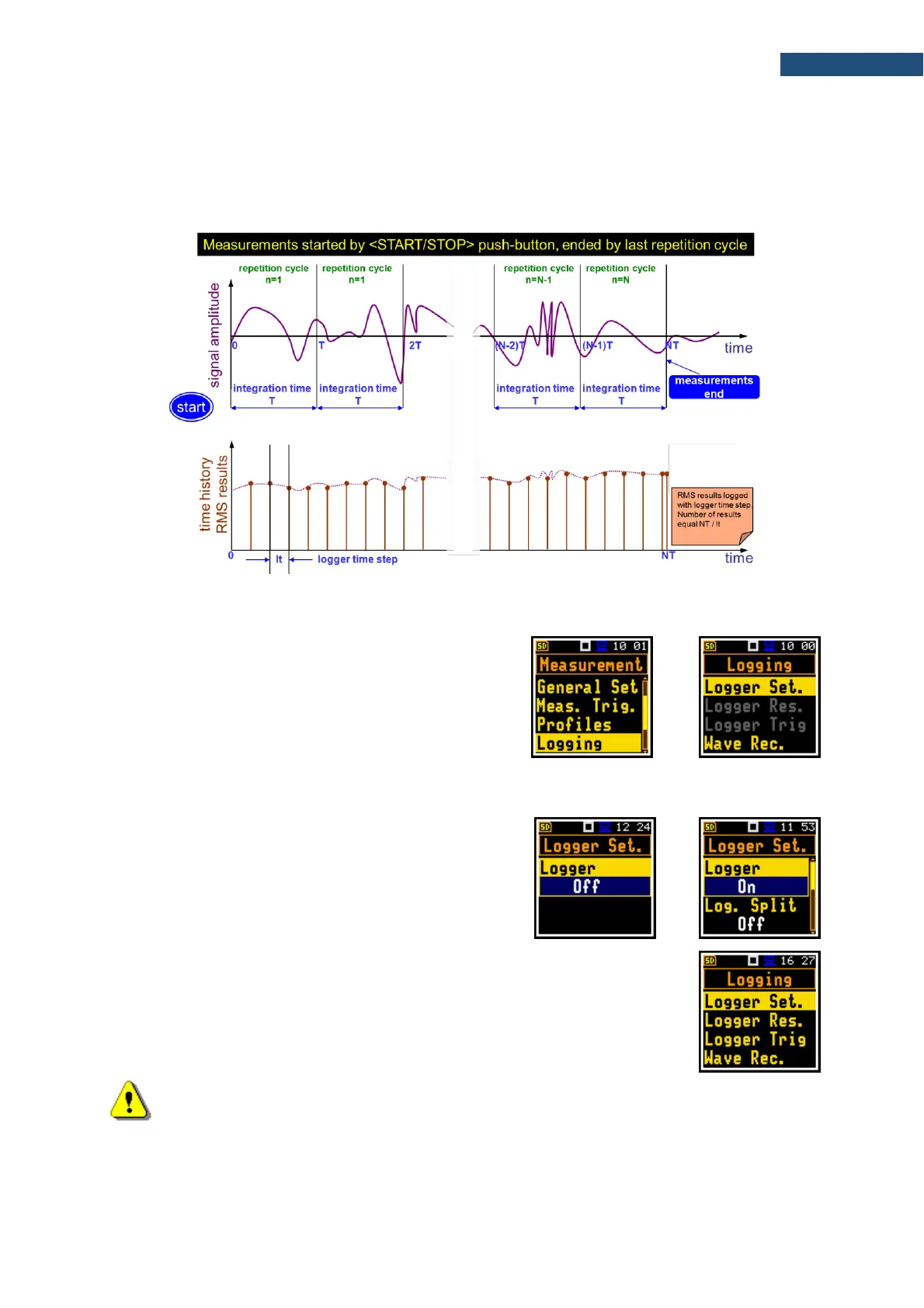

The figure below illustrates principles of logging measurement results.
Summary Results and Logger Results logging
The Logging list enables programming of the logging
functions: recording of summary and logger results
(measurement history) in a logger file and recording of
audio signal in a wave file.
In the Simple instrument interface mode, the
Logging list includes only of one position - Logger Set.
4.5.1 Setting general logging parameters – Logger Setup
The Logger Set. list enables activating the logging
function (Logger) and programming logger general
parameters.
The Logger position switches On or Off the logging
functionality.
Switching on the Logger (On) activates two positions in the Logging list, which
enable the user to save selected results from the three profiles and spectra with
the step defined by the Logger Step parameter (Logger Results) and program
the Logger Trigger.
Note: If Logger is Off, result files are not created, and measurement results (both summary
and logger) are not saved!
