5
. Removal & Installation of Engine
5-7

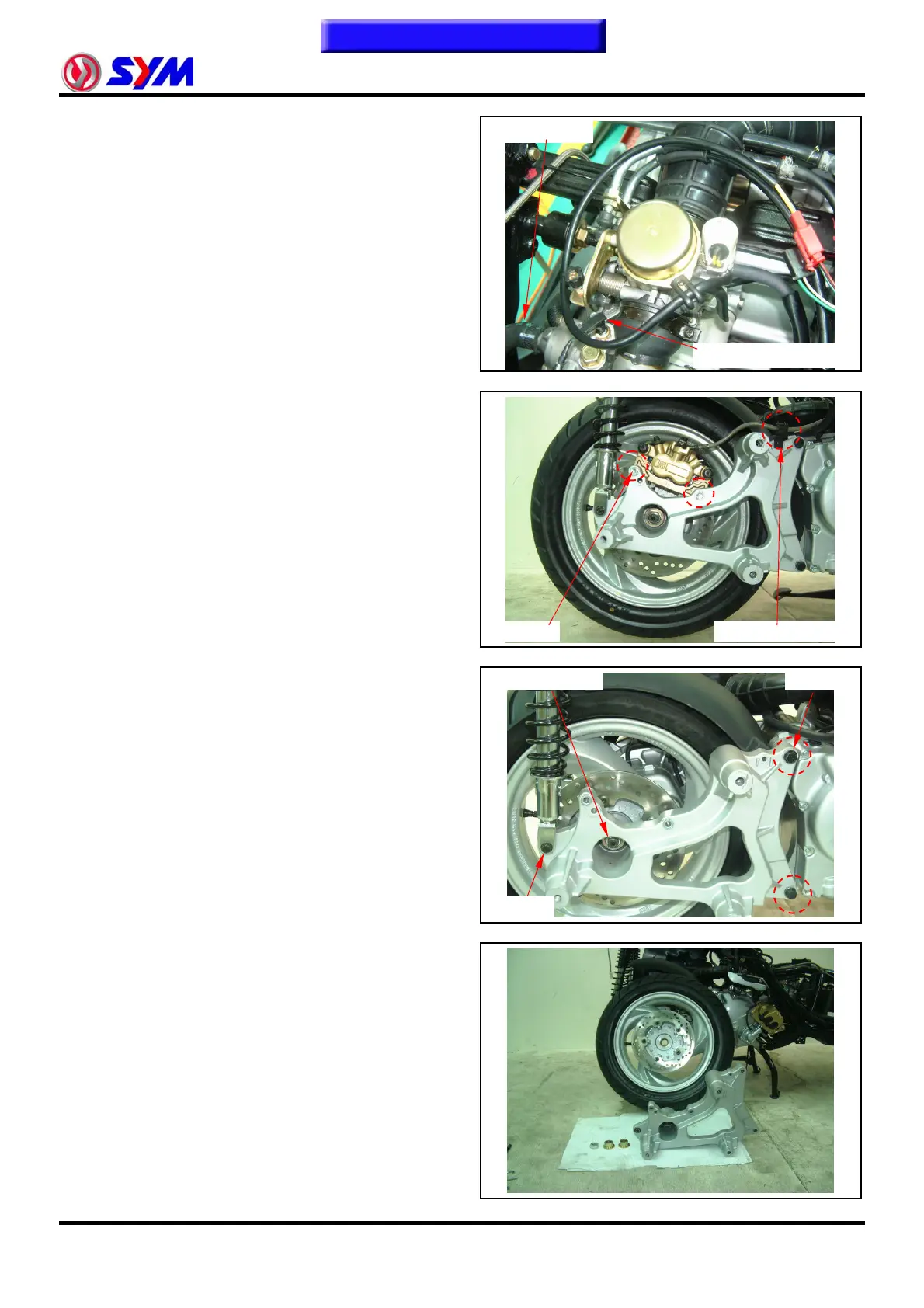

Remove the coolant outlet hose and
thermo-sensor wire.
Remove rear brake hose clamp and rear brake
caliper.
Remove the right rear cushion lower bolt (1 bolt).
Remove the rear fork bolts (2 bolts).
Remove the rear wheel axle nut (1 nut).
Remove the rear fork and rear axle collars.
To this chapter contents
2 bolts
Brake hose clamp
2 bolts
Rear axle nut
1 bolt
Thermo-sensor wire
Outlet hose
