3. Lubrication System
3-3

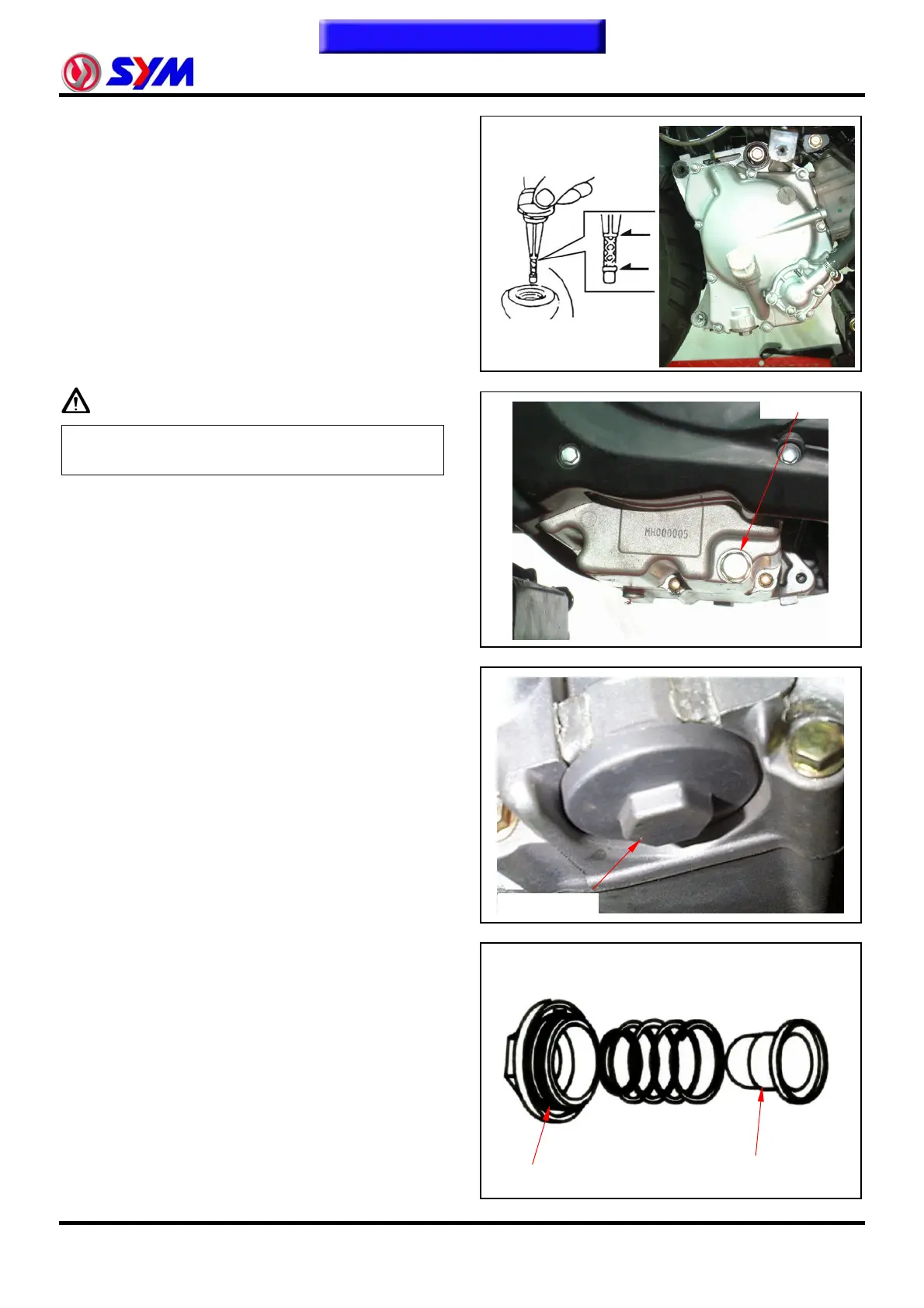

3BEngine Oil
Turn off engine, and park the scooter in flat
surface with main stand.
Check oil level with oil dipstick.
So not screw the dipstick into engine as checking.
If oil level is nearly low level, fill out recommended
oil to upper level.
Oil Change
Caution
Drain oil as engine warmed up so that makes
sure oil can be drained smoothly and completely.
Place an oil pan under the scooter, and remove oil
drain bolt.
After drained, make sure washer can be re-used.
Install oil drain bolt.
Torque value：3.5~4.5kgf-m
4BEngine Oil Strainer Clean
Drain engine oil out.
Remove oil strainer and spring.
Clean oil strainer.
Check if O-ring can be re-used.
Install oil strainer and spring.
Install oil strainer cap.
Torque value：1.3~1.7kgf-m
Add oil to crankcase (oil viscosity SAE 10W-30)
Recommended using King serial oil.
Engine oil capacity: 1200c.c. when replacing
Install dipstick, start the engine for running several
minutes.
Turn off engine, and check oil level again.
Check if engine oil leaks.
Drain bolt
Oil strainer cap
To this chapter contents
Oil strainer
O-ring
