16. Rear Wheel / Rear Fork / Rear Cushion
16-3

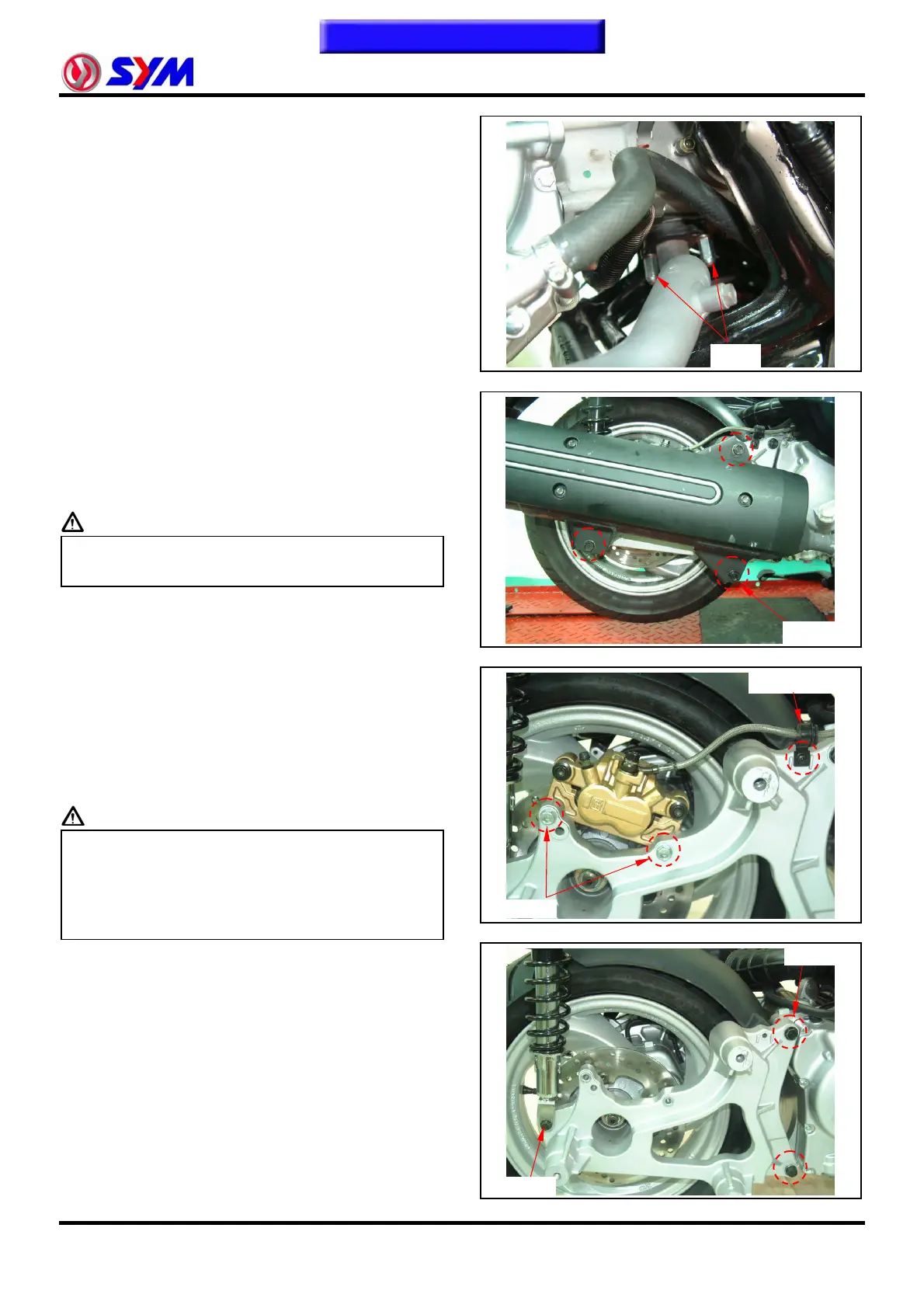

Muffler
Removal
Loosen the 2 nuts from exhaust muffler front side.
Loosen the 3 mounting bolts by exhaust muffler
right side.
Remove exhaust muffler.
Installation
Install in reverse order of removal procedures.
Caution
z Replace the front side muffler pipe gasket if
worn or deformed.
Torque Value:
Muffler mounting bolt 3.2 ~ 3.8kgf-m
Muffler mounting nut 1.0 ~ 1.2kgf-m
Rear Wheel
Removal
Remove the exhaust muffler.
Remove the rear brake caliper (2 bolts) and brake
hose clamp (1 bolt).
Caution
z Care shall be taken not to push the brake
lever to avoid the brake pad being squeezed
out. In case that the brake pad is accidentally
squeezed out, use a screwdriver to force it
back to the place.
Remove the lower bolt of the right side rear
cushion.
Remove 2 bolts of the rear fork.
2 nuts
3 bolts
2 bolts
Hose clamp
To this chapter contents
2 bolts
1 bolt
