Sym RV 250i User Manual

10. AC. Generator / Start Clutch
10-5

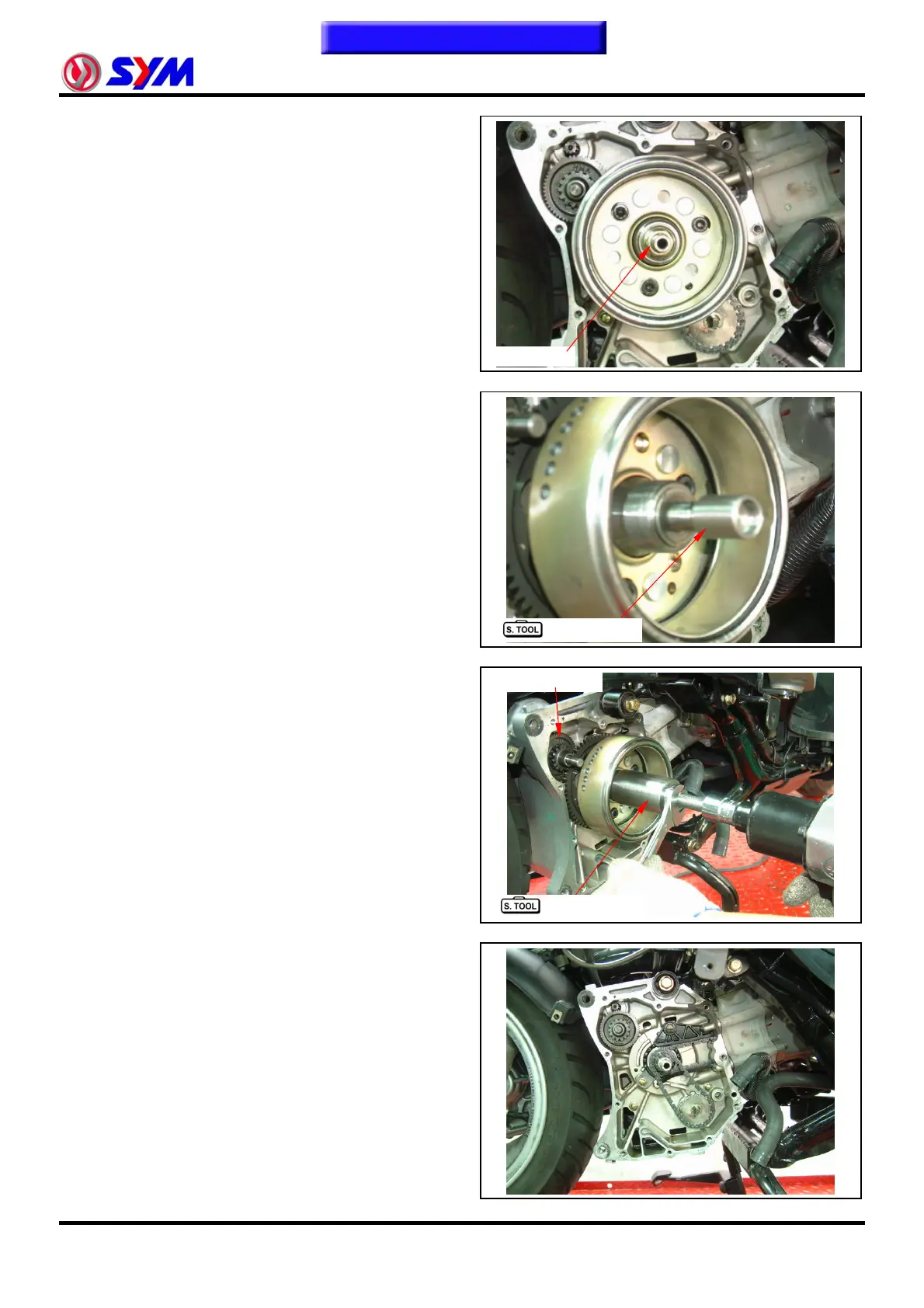

Flywheel Removal
Remove right crankcase cover and generator coil.
Remove flywheel nut.
Installs shaft protector onto the crank shaft.
Special tool:
Shaft protector
Remove starter reduction gear and shaft.
Pull out flywheel with AC.G. flywheel puller.
Special tool:
AC.G. Flywheel puller SYM-3110000-HMA
Remove flywheel and starting driven gear.
Flywheel nut
To this chapter contents
Shaft protector
Flywheel puller
Reduction gear
