13. Body Cover
13-1
Mechanism Diagram···························13-1
Maintenance········································13-2
Handle Cover·······································13-3
Front Cover ·········································13-4
Meter Panel··········································13-6
Inner Box·············································13-7
Side Cover···········································13-9
Front Under Spoiler ··························· 13-10
Rear Carrier ········································ 13-10
Luggage Box ······································ 13-11
Rear Body Cover································ 13-12
Floor Panel ········································· 13-13
Front Fender······································· 13-13
Rear Fender········································ 13-14

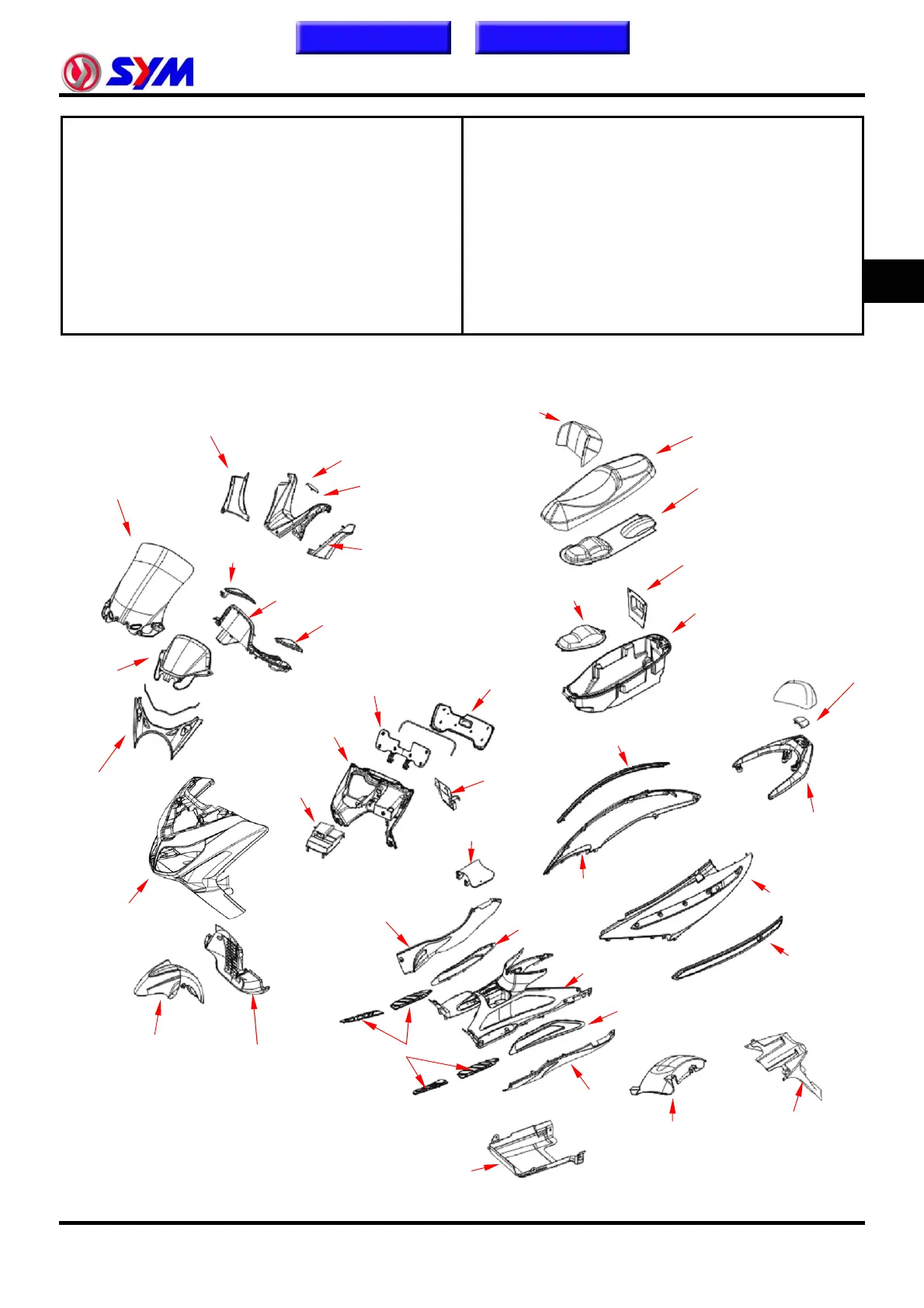

Mechanism Diagram
Inner box
Handle upper cover
Left handle cover
Right handle cover
Rear carrier cap
Luggage box
Rear mudguard
Right side cover
Right body cover
Floor panel
Back seat
Seat
Under cover
Meter panel
Luggage box mat
Main cover
Rear fender
Front cover
Meter visor
Wind screen
Wind screen
garnish
Left body cover
Front under spoiler
Front fender
Left side cover
Luggage box rear cover
Reserve tank cap lid
Coin box lid
Inner box lid
Battery cover
Right body cover garnish
Left body
cover garnish
Inner box lid stiffener
Inne
r
box
upper case
Floor box lid
Right floo
r
garnish
Left floor garnish
Floor mats
Rear carrier
Handle upper cover cap
