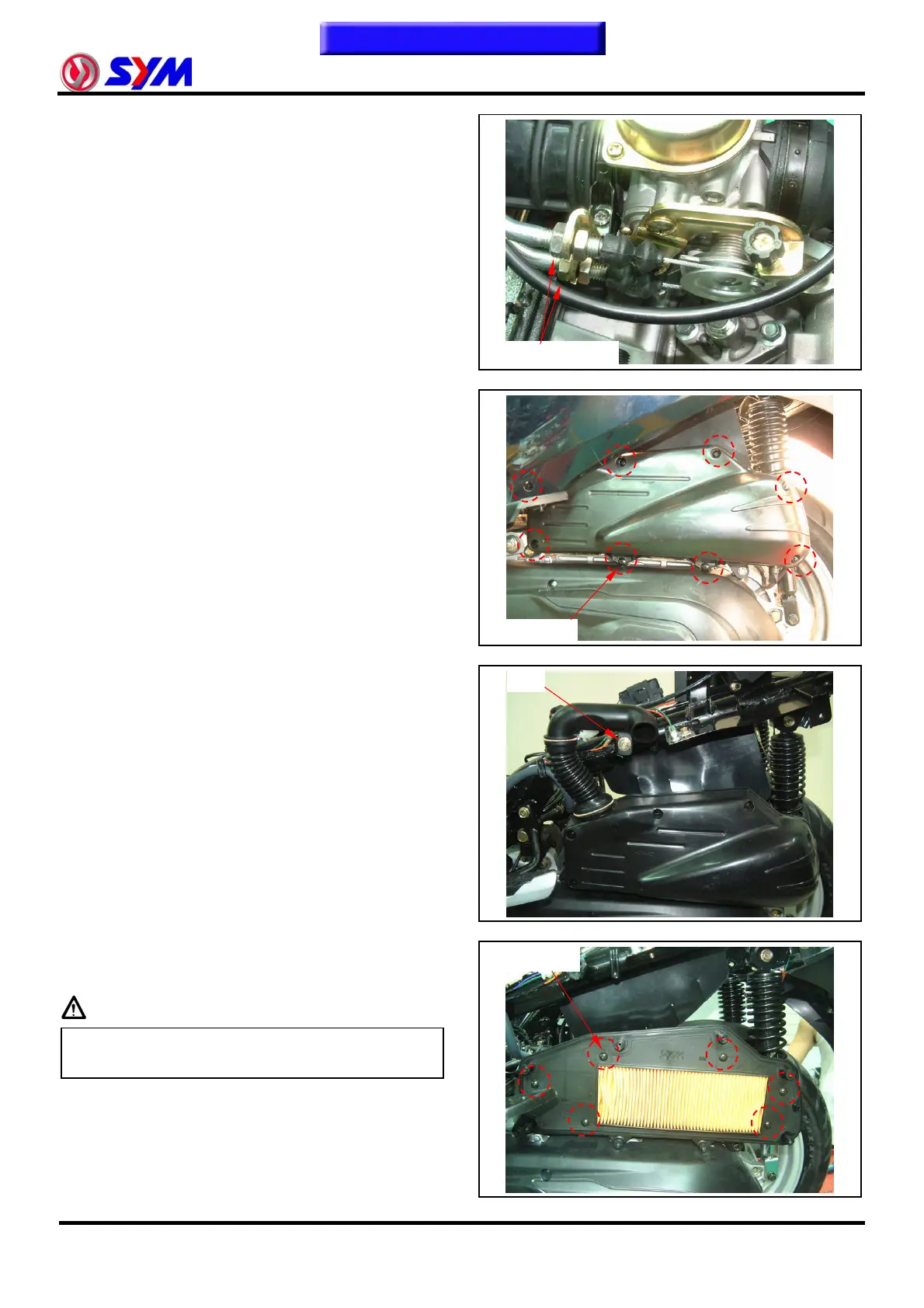

2. Maintenance Information
2-5
Primary adjustment is conducted from bottom
side.
Loosen fixing nut, and adjust by turning the
adjustment nut.
Tighten the fixing nut, and check acceleration
operation condition.
Air Cleaner
Air Cleaner Element
Remove 8 screws from the air cleaner cover and
then remove the cover.
Remove the body cover.
Loosen bolt from the air cleaner air hose.
Remove 6 screws, and then remove the air
cleaner element.
Caution
y The air cleaner element is made of paper so
do not soap it into water or wash it with water.
8 screws
Bolt
6 screws
Adjustment nut
