17. Electrical System
17-11
Starting System

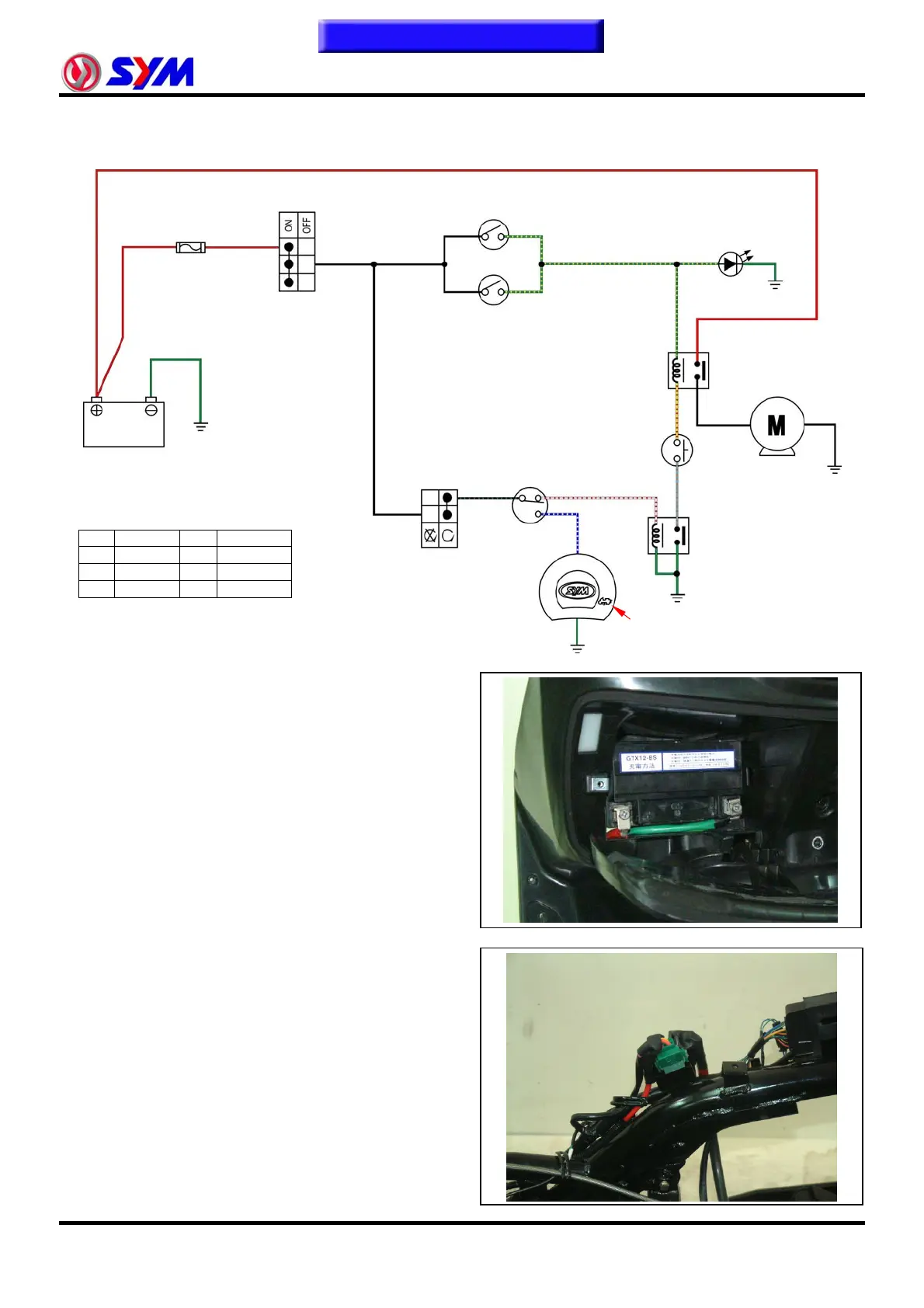

Starting circuit diagram
Inspection on starter relay
Open the main switch.
Press the brake.
Push down the starter switch.
If a sound of “Looh Looh” is heard, it indicates the
relay function normally.
Open the inner box lid, and remove battery cover.
Disconnect the negative cable terminal of the
battery.
Remove the luggage box.
Disconnect the cable positive terminal from the
start relay.
Rear brake switch
Engine stop relay
Brake light
Front brake switch
SB/O
G/Y
W/R
L/W
Y/R
B/G
R
G
Side stand lamp
Side stand switch
Main switch
Engine stop switch
Fuse 20A
Battery
R Red W White
B Black L Blue
G Green SB Sky blue
Y Yellow O Orange
R
Start switch
Start relay
Start motor
B
