15. Steering / Front Wheel / Front Cushion
15-3
Steering Handle

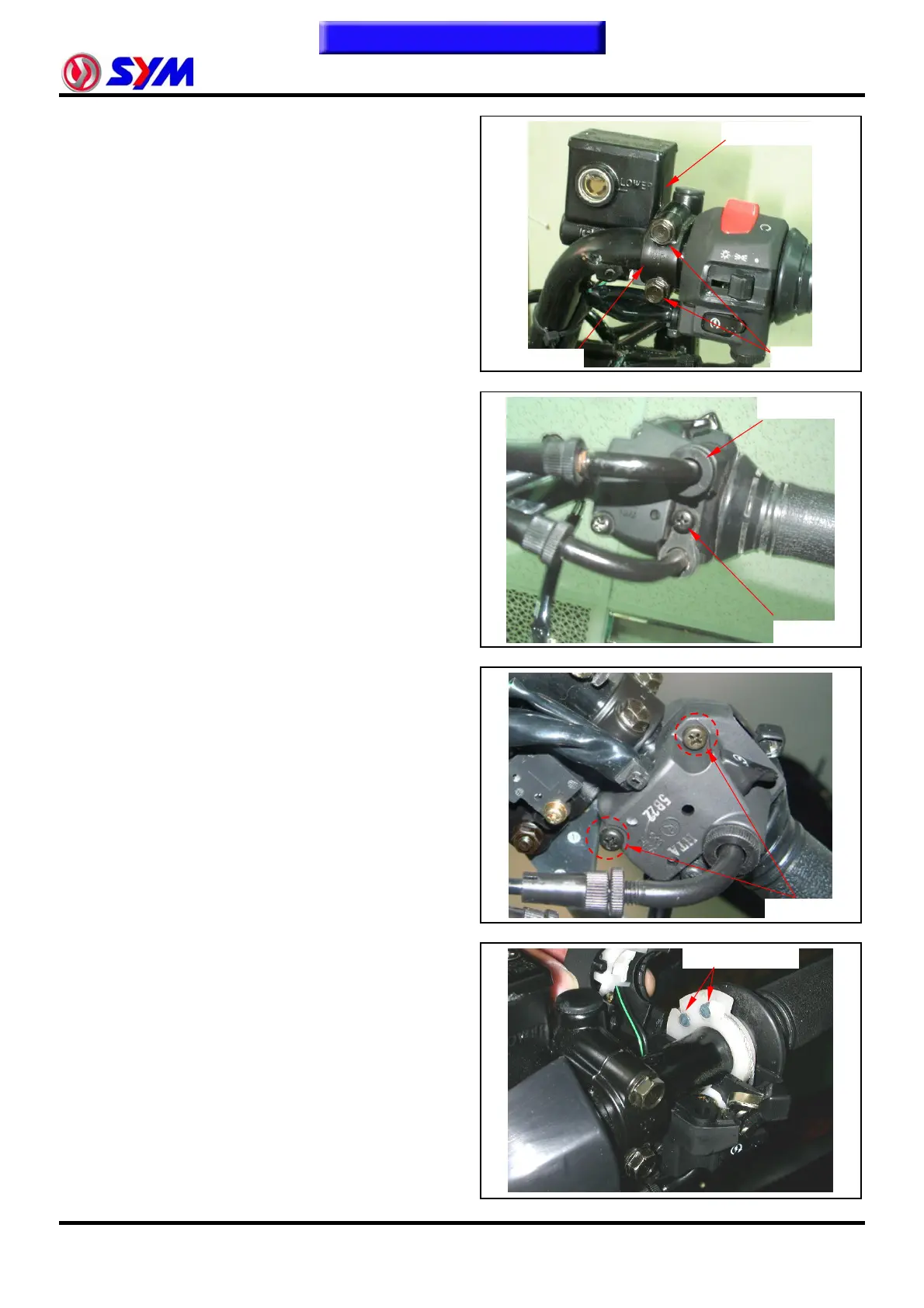

Remove
Remove the right and left handle side cover,
handle upper cover and front cover. (Refer to
chapter 13)
Loosen the lock bolts for the master cylinder of the
front brake.
Loosen the deceleration throttle cable fixing nut.
Loosen 1 screw from the acceleration throttle
fixing plate.
Loosen 2 screws from the throttle holder.
Remove throttle holder, handle switch, cables and
grip.
2 screws
2 bolts
Fixing nut
1 screw
Master cylinder
Holder
Throttle cables
