15. Steering / Front Wheel / Front Cushion
15-4

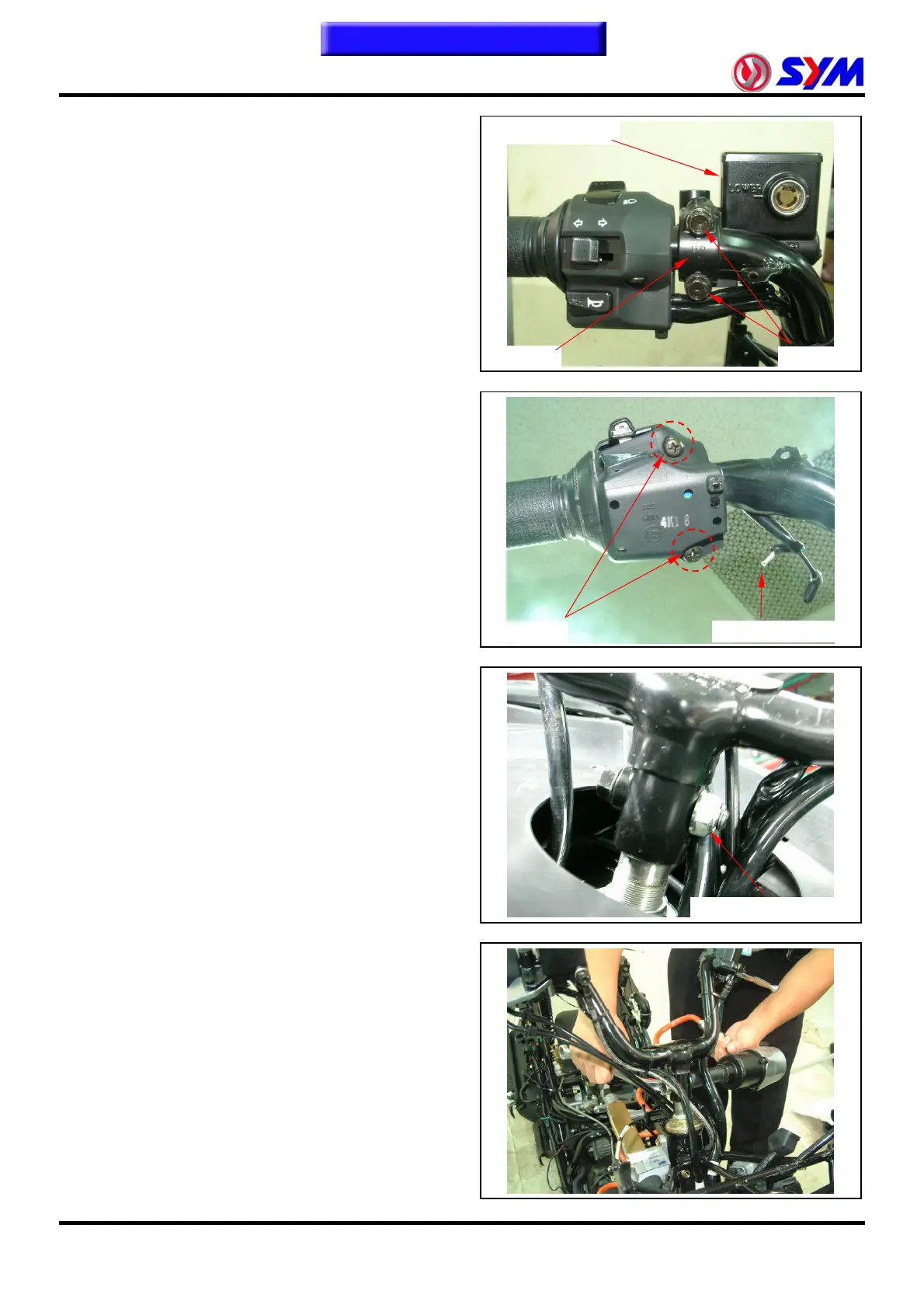

Loosen 2 bolts from the master cylinder of the rear
brake.
Remove holder and master cylinder.
Loosen left handle switch connecter.
Loosen 2 screws from left side handle switch
holder.
Remove the right handle switch.
Loosen handle mounting nut.
Remove handle mounting bolt, and then remove
the handle.
Installation
Install handle and align with bolt hole.
Install bolt and nut and then tighten it.
Torque value: 4.0~5.0kgf-m
Apply with grease onto throttle cable and the
sliding surface of handle.
Align the lock pin with the hole on the handle.
After the installment completes, carries on the
following inspection and the adjustment:
y Throttle grip operation.
y All electric appliances, the meter function
2 screws
Switch connecter
Master cylinder
2 bolts
Holder
Handle mounting nut
