9
. Final Drive Mechanism
9-3

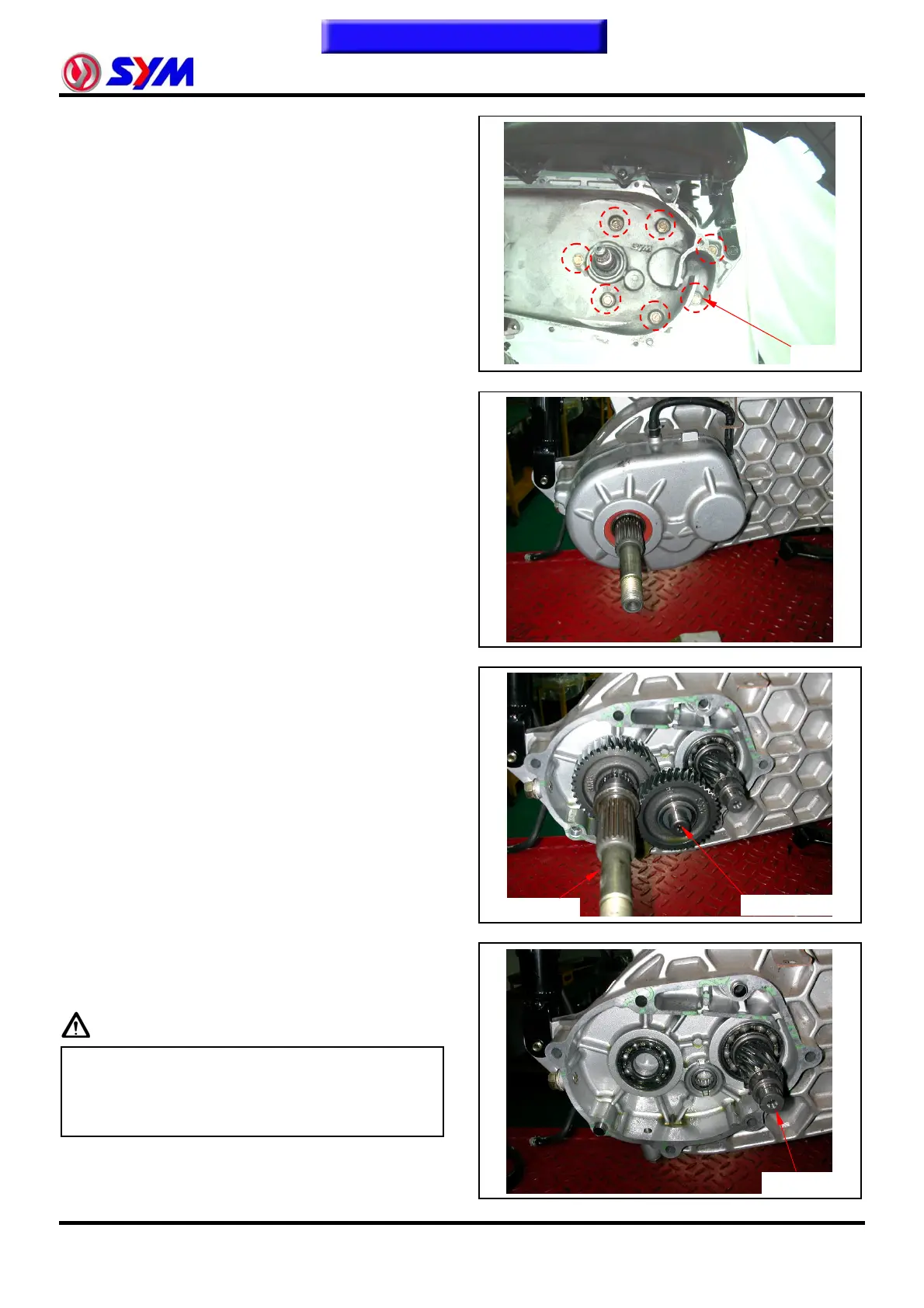

Final Drive Mechanism Disassembly
Remove the rear wheel.
Remove the clutch.
Drain out gear oil from gear box.
Loosen 7 bolts and remove gear box cover bolts.
Remove the gear box cover.
Remove the gasket & dowel pin.
Remove final gear.
Remove counter shaft, gear and 2 washers.
Remove final shaft.
Remove the drive shaft.
Special tool:
Shaft protector
Caution
y If non- essential do not remove the drive shaft
from the cover upper side.
y If remove the drive shaft from the gear box
cover, then its bearing has to be replaced.
7 bolts
Drive shaft
Final shaft
Counter shaft
