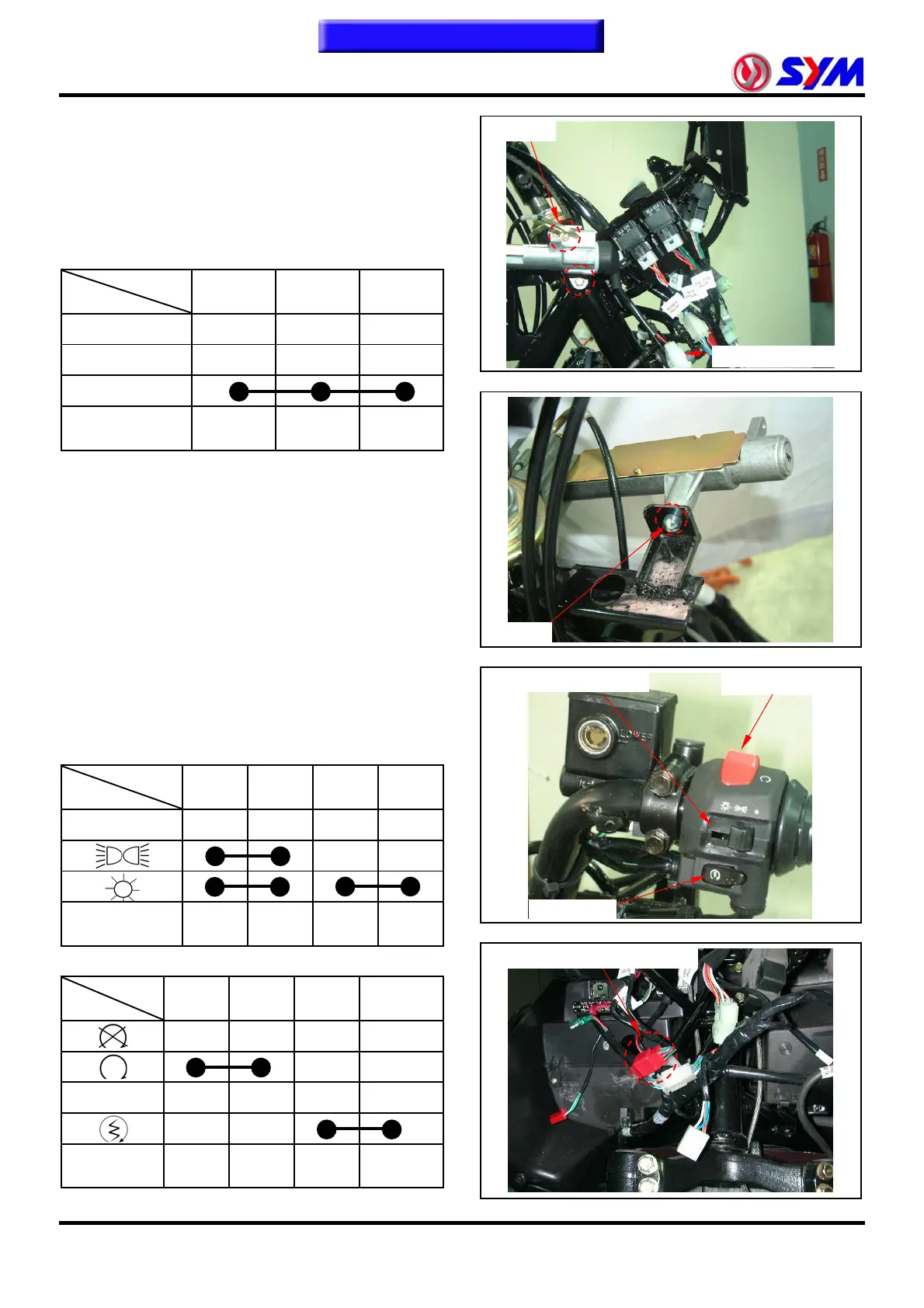

17. Electrical System
17-18
Switch / Horn
Main switch
Inspection
Remove the front cover.
Disconnect the main switch coupler.
Check the continuity between two points as
indicted below
Pin
Position
BAT BAT1 BAT2
LOCK
OFF
ON
Wire Color Red Black Blake
Replacement of main switch
Remove main switch cap.
Disconnect the coupler of the main switch and
loosen the mounting bolts (3 bolts).
Remove the main switch.
Install the new main switch and tighten the
mounting bolts.
Install the main switch coupler and cap.
Right handle switch
Remove the handle cover and front cover.
Disconnect the coupler of right handle switch.
Check the continuity between two points as
indicated in the table below
Headlight switch
Pin
Position
TL CI HL CI
●
Wire Color Brown Black Black
Blue
/White
Start and engine stop switch
Pin
Position
ST E ST E
FREE
Wire Color Black
Black
/Green
Yellow
/ Red
Sky blue/
Orange
1 blot
Start switch
Headlight switch
Engine stop switch
Main switch coupler
To this chapter contents
2 blots
Right handle switch coupler
