Sym RV 250i User Manual

8
. V-Belt Drive System
8-7
Drive Face
Removal

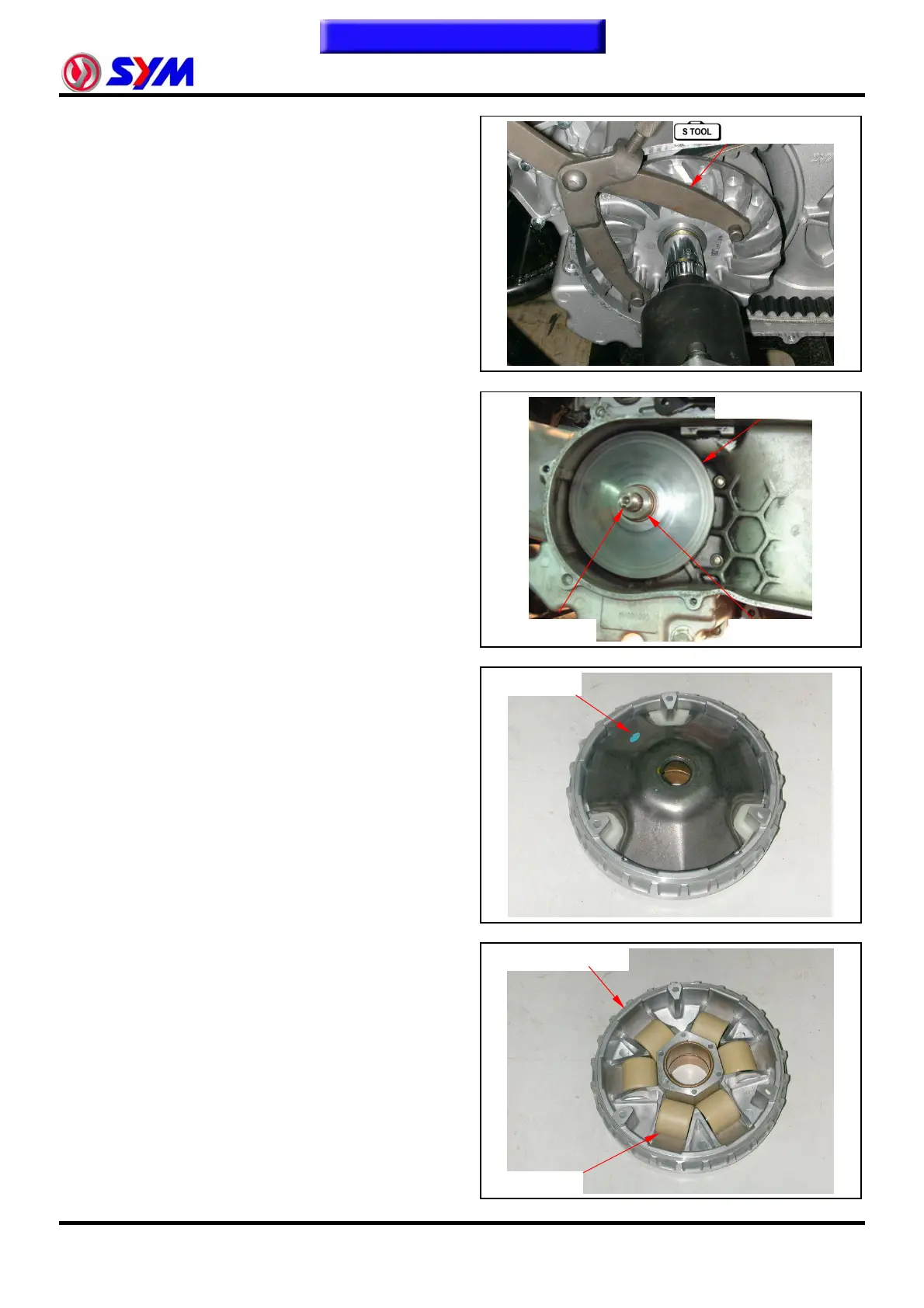

Remove left crankcase cover.
Hold drive face with universal holder, and then
remove drive face nut.
Remove drive face and drive belt.
Remove movable drive face comp and drive face
boss from crankshaft.
Remove ramp plate.
Remove weight rollers from movable drive face.
Crankshaft
Drive face boss
Movable drive face
Ramp plate
Movable drive face
Weight roller
Universal holder
