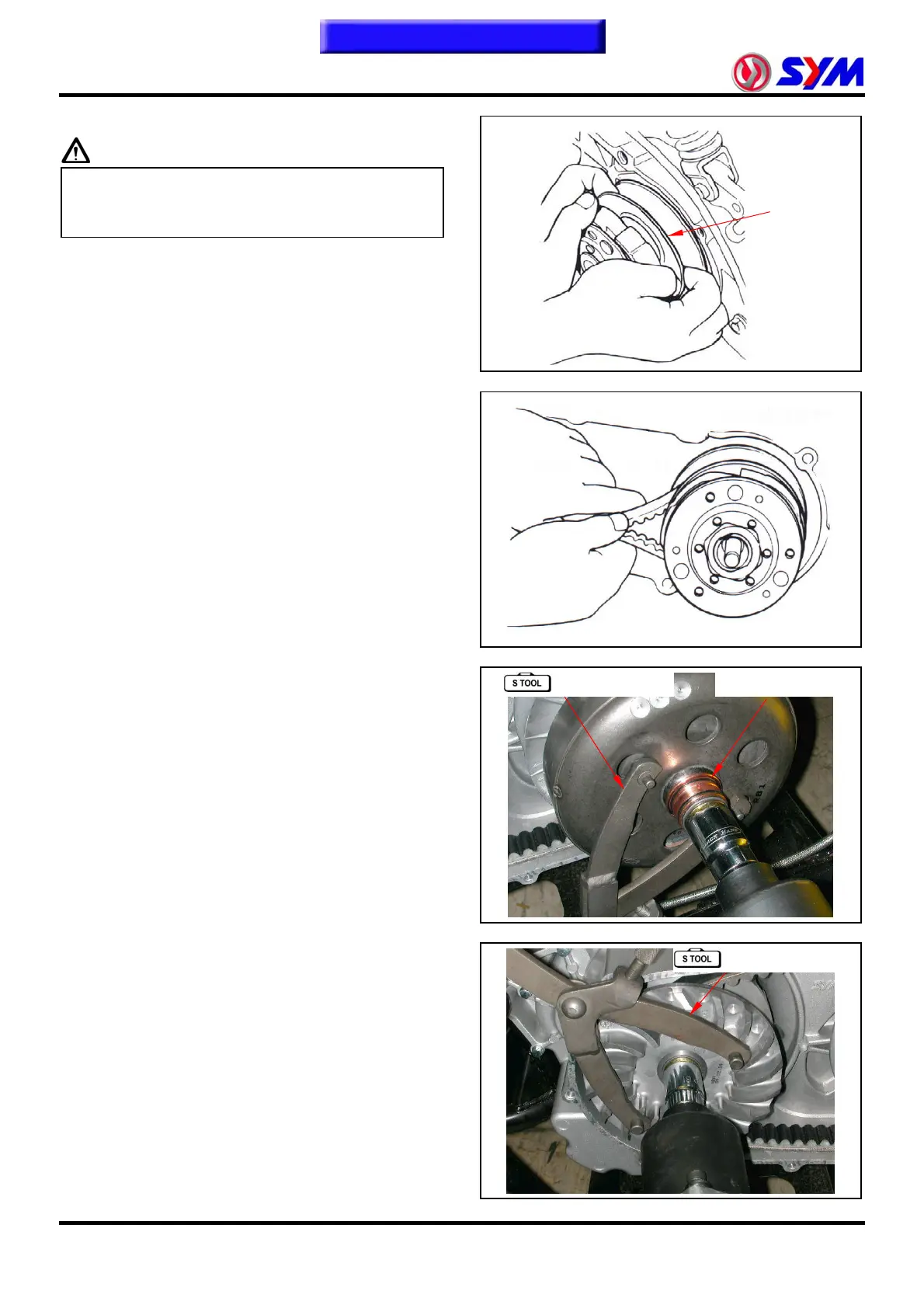

8. V-Belt Drive System
8-6
Installation
Caution
y Pull out driven face to avoid it closing.
y Cannot oppress friction plate comp in order to
avoid creates the distortion or the damage.
Install drive belt onto driven pulley.
Install the driven pulley that has installed the belt
onto drive shaft.
On the drive belt another end to the movable drive
face.
Install the clutch outer and bearing stay collar.
Hold the clutch outer whit universal holder, and
then tighten nut to specified torque value.
Torque value: 5.0~6.0kgf-m
Install the drive face, washer and drive face nut.
Hold drive face with universal holder, and then
tighten nut to specified torque value.
Torque value: 8.5~10.5kgf-m
Driven face
Universal holder
Universal holder
Bearing stay collar
