5. Removal & Installation of Engine
5-2

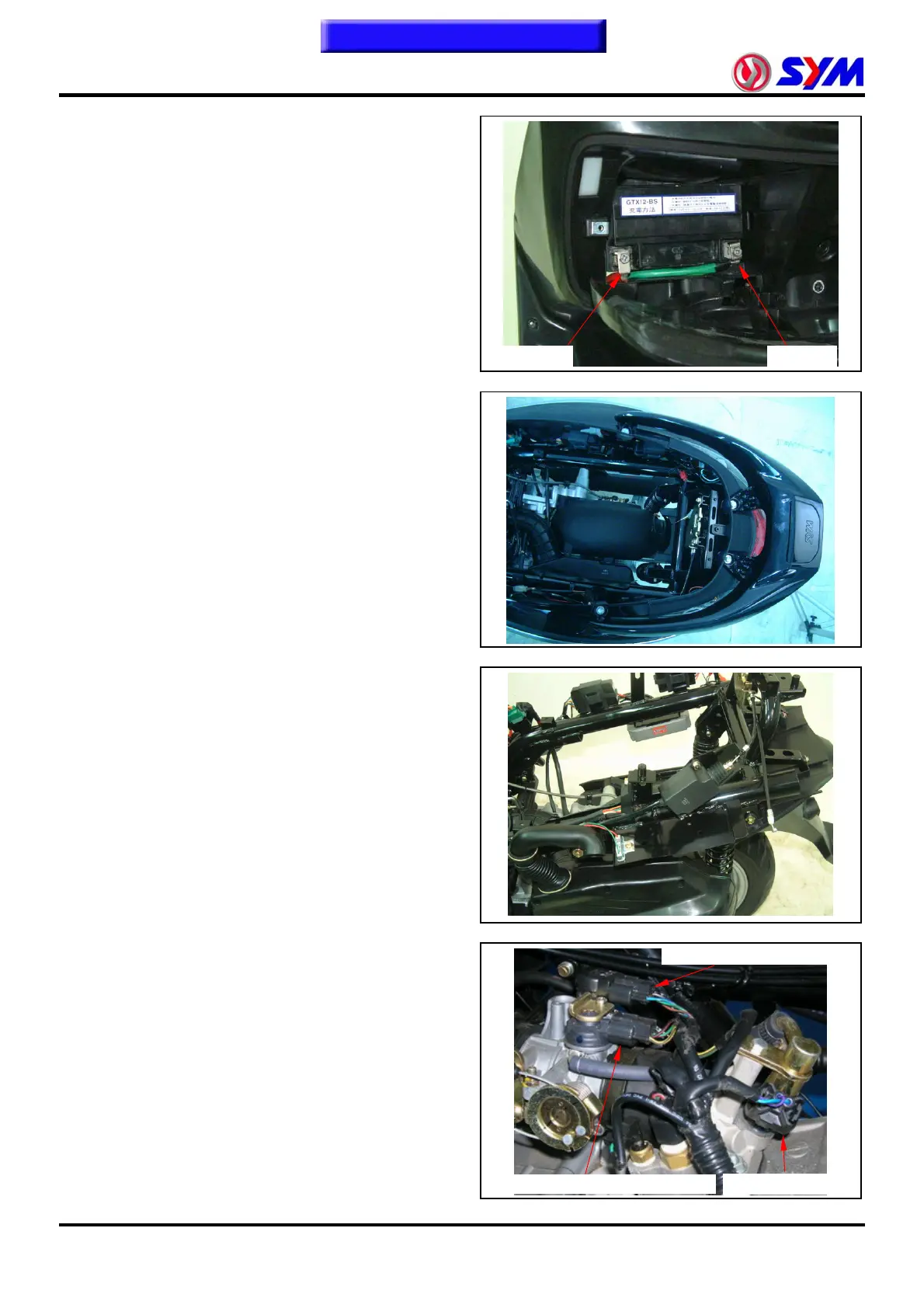

Engine Removal
Open inner box cover.
Remove battery cover (1 screw).
Remove the battery negative (-) cable.
Remove the battery positive (+) cable.
Open the seat.
Remove the luggage box (6 bolts, 2 screws).
(Refer to chapter 14)
Remove right and left side covers (4 screws on
each side.).
Remove rear carrier (4 bolts).
Remove body cover (4 screws & 1 coupler).
(Refer to chapter 14)
Remove fuel injection system of electrical
couplers and fuel hoes
Remove idle speed control valve, inlet pressure
sensor, nozzle of couplers.
Positive
To this chapter contents
Negative
Idle speed control valve
inlet pressure sensor coupler
Nozzle coupler
