. Removal & Installation of Engine
5-11

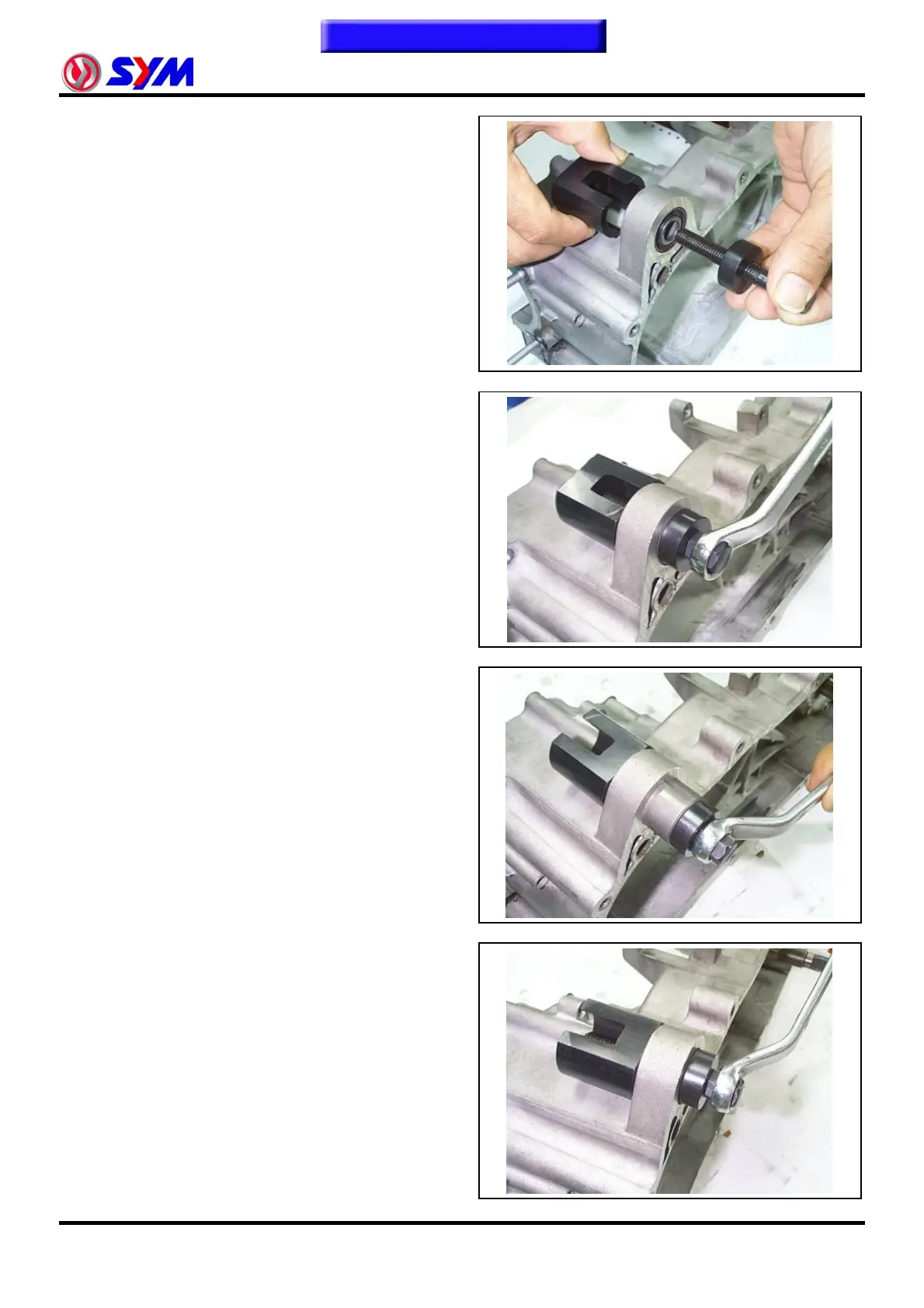

Engine Bush Removal
If the engine hanger frame and the cushion rubber
of rear cushion bush is damaged. With the bush
remover / presser, ø28mm & ø20mm, to press the
bush out, and replace it with new one.
Engine hanger bush: ø 28mm
Rear cushion bush: ø 20mm
Pressing out
Place the detent section of the bush remover
toward the bush, and drive both the pressing ring
and bolt in to press the bush out.
Special Service Tools:
Crankcase bush remover/presser SYM-1120310
Crankcase bush remover/presser SYM-1120320
Pressing In
Place the flat section of the remover toward the
bush, and then drive the bush, pressing ring, and
bolt in to install the bush.
