12. Cooling System
12-1
Mechanism Diagram ··························12-1
Precautions in Operation···················12-2
Troubleshooting·································12-2
Diagnosis for Cooling System ··········12-3
Change of Coolant····························· 12-5
Radiator ·············································· 12-6
Water Pump········································ 12-8
Thermostat ········································· 12-12

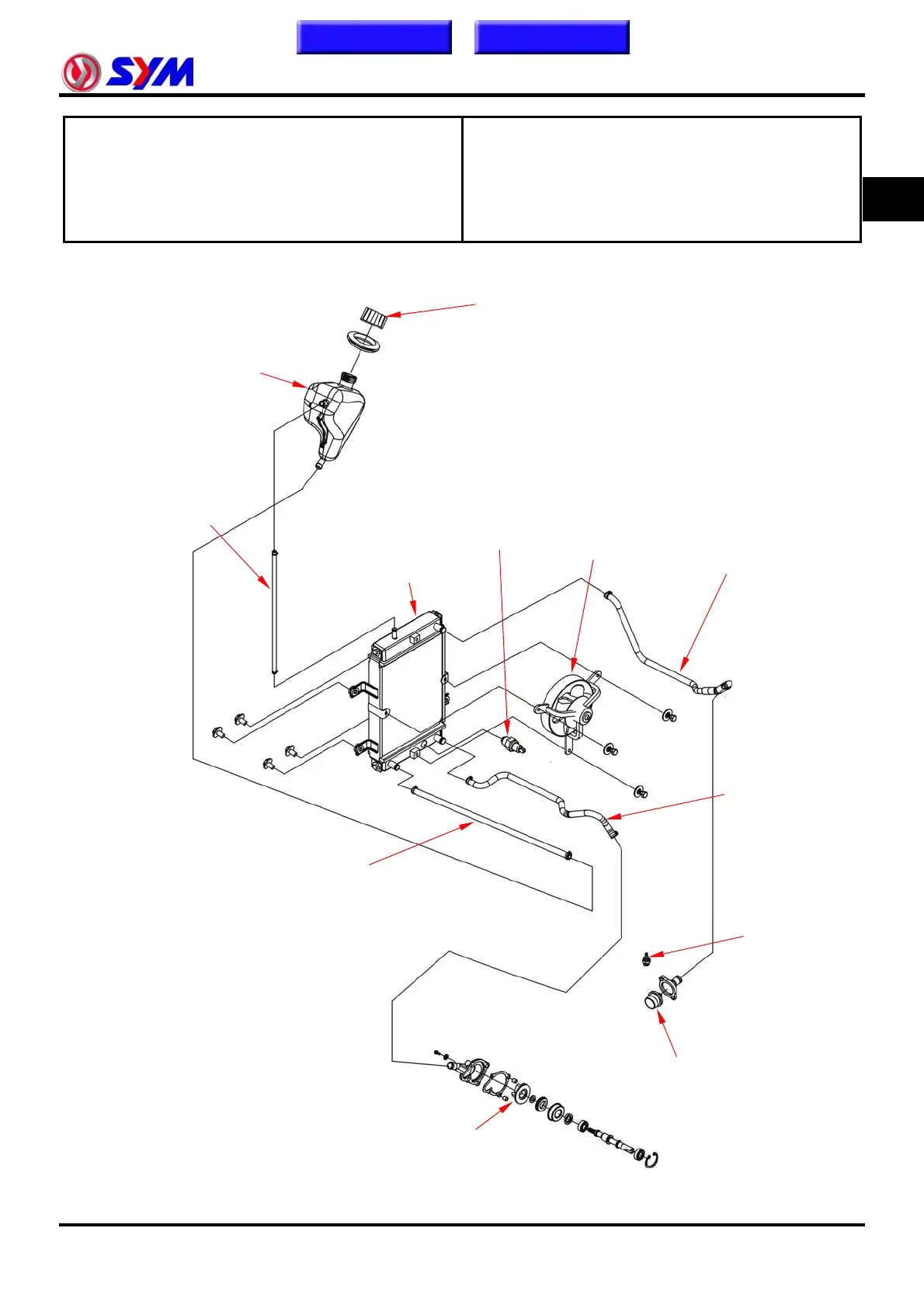

Mechanism Diagram
Home page
Contents
Radiator filler cap
Radiator
Thermo switch (fan)
Reserve tank outlet pipe
Thermo unit
(
tem
p
meter
)
Water pump
Thermostat
Engine coolant outlet pipe
Reserve tank
Cooling fan
Engine coolant inlet
pipe
Reserve tank inlet pipe
12
