5
. Removal & Installation of Engine
5-3

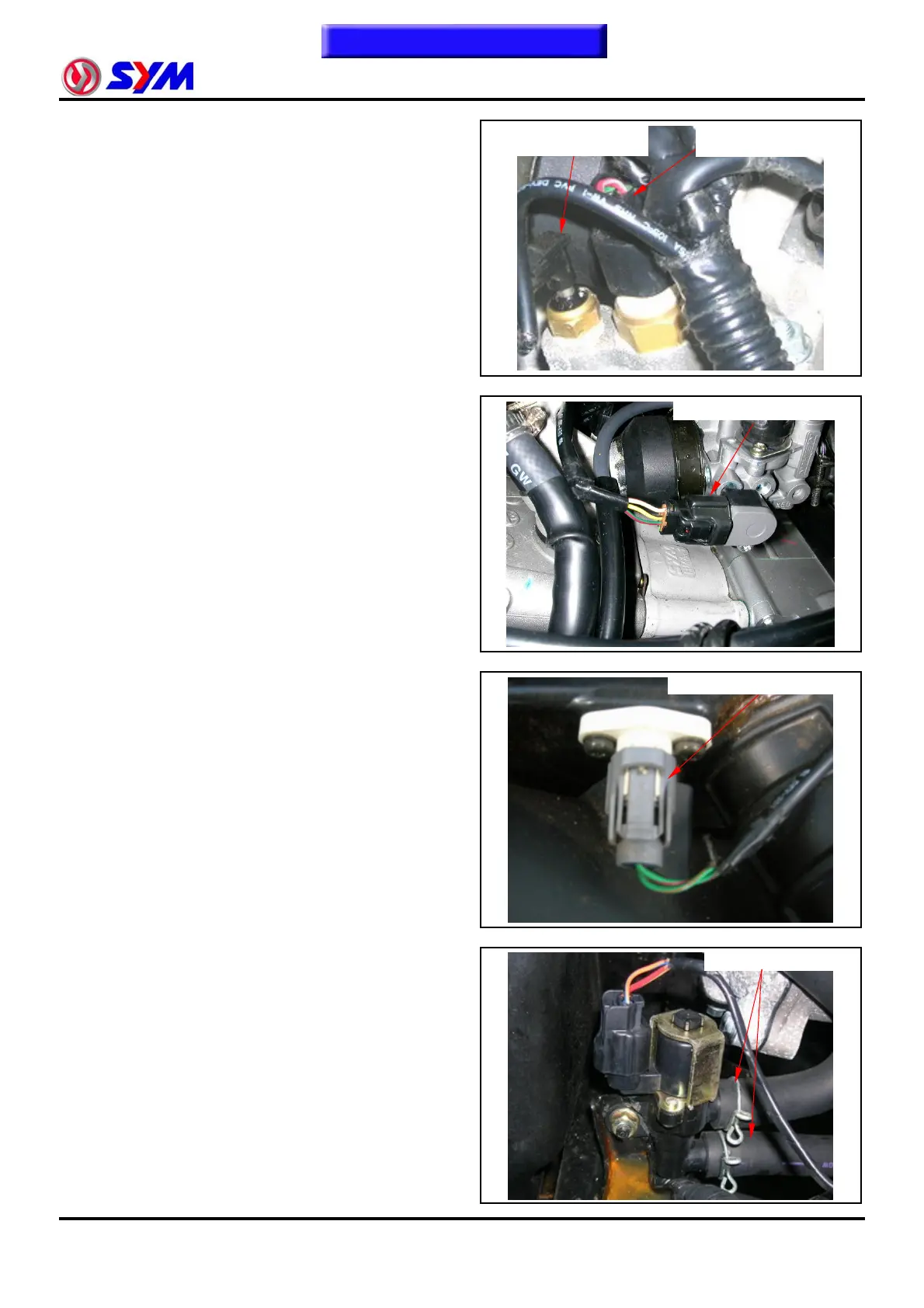

Remove the temperature meter sensor and engine
temperature sensor wire couplers.
Remove throttle position sensor coupler.
Remove inlet temperature sensor coupler.
Remove secondary air electromagnetic valve pipe.
Engine temperature
sensor
Temperature meter
sensor
Inlet temperature sensor
Secondary air pipe
Throttle position sensor
