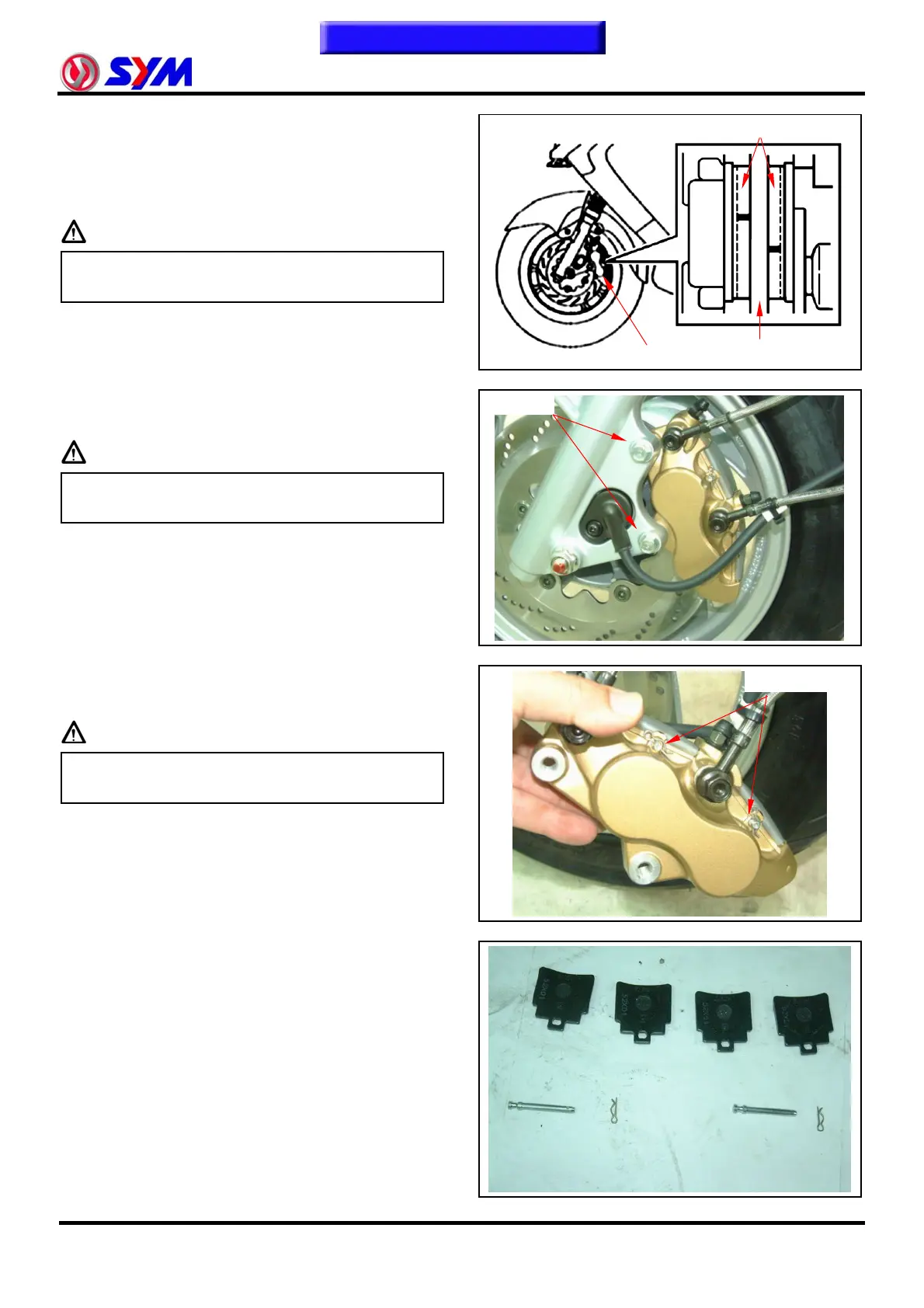

Brake Lining Wear
The indent mark on brake lining is the wear
limitation.
Replace the brake lining if the wear limit mark
closed to the edge of brake disc.
Caution
y It is not necessary to remove brake hose when
replacing the brake lining.
Remove the brake clipper bolt, and take out the
clipper.
Caution
y Do not operate the brake lever after the clipper
removed to avoid clipping the brake lining.
Pry out the brake lining with a flat driver if lining is
clipped.
Remove 2 cotter pins
Caution
y In order to maintain brake power balance, the
brake lining must be replaced with one set.
Remove the brake pad shafts and pads.
Lining
Brake caliper
Brake disk
2 bolts
Cotter pins
