3 - Technical Data
Introduction
Te-Stack Operating Manual, 391862, en, V2.3 3 - 3
Versions and
Positions
Two versions of base unit supports are available:
 The base unit support without drawer (see Fig. 3-3,  3-3 item I) is used for
the front position.
 The base unit support with drawer (see Fig. 3-5,  3-4 item B) is used for the
rear position. The drawer is necessary for replacing the stacker columns.
The figure shows the main parts and their designation:

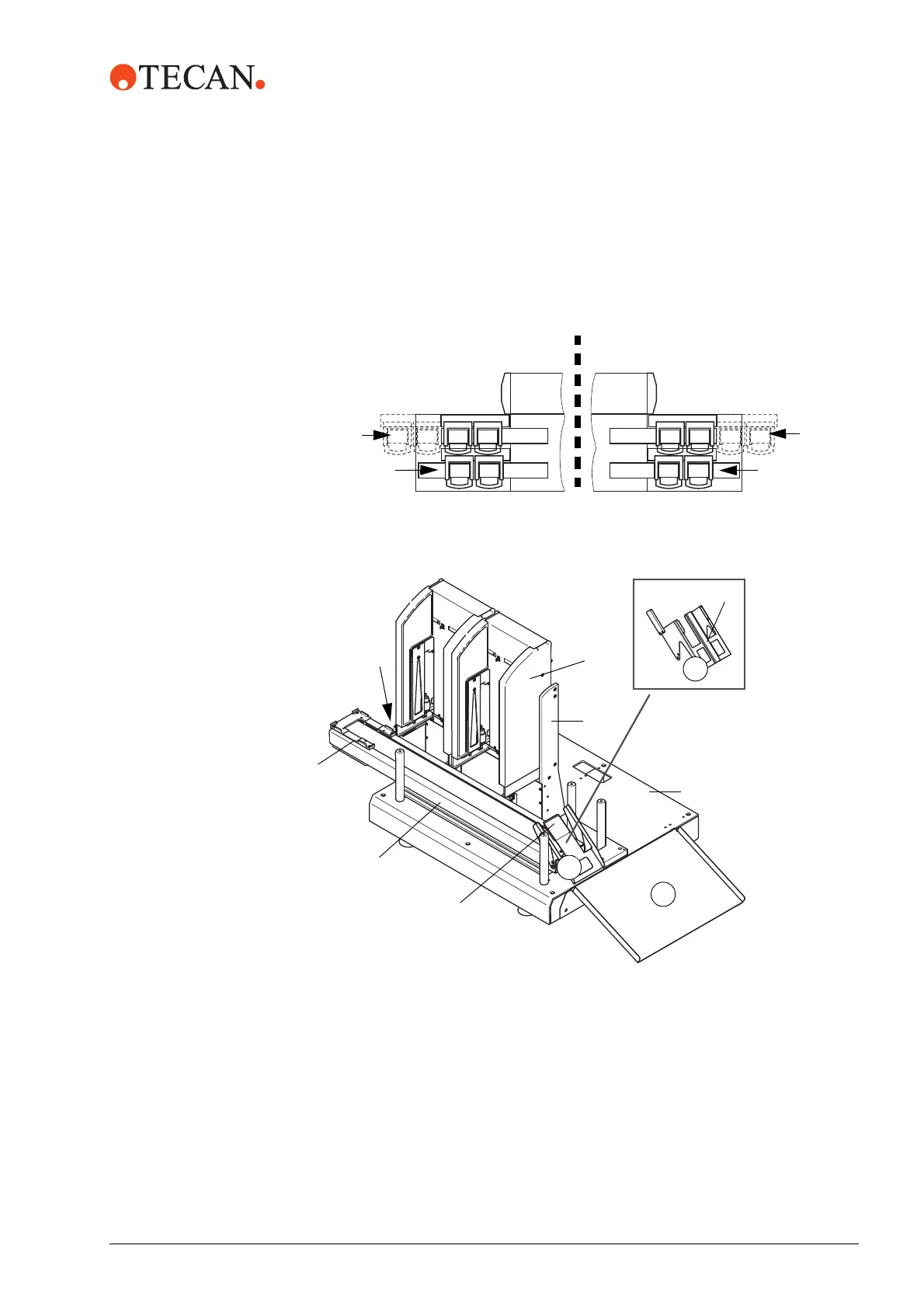

Fig. 3-2 Possible positions for the Freedom EVO versions
Fig. 3-3 Overview of Freedom EVO version with Te-Stack base units in front position
Left side:
Right side:
Front position
Front position
Rear
Position
Position
Rear
C
D
B
A
F1
H
I
J
F2
E2
E1
G
A Transfer carrier (upper part)
B Slide (assembly)
C Barcode scanner (invisible in figure)
D Transfer station
E1 Waste station (assembly)
E2 Waste station (assembly nested DiTi)
F1 Waste tray
F2 Waste tray (nested DiTi)
G Waste chute
H Worktable extension
I Base unit support (front)
J Te-Stack base unit
