4 - Description of Function
Function
Te-Stack Operating Manual, 391862, en, V2.3 4 - 7
Note: A Te-Stack base unit can handle DiTi-boxes and MPs; however, the
corresponding stacker columns are different in size. See Fig. 4-10,
4-7.
Function of Drawer
Use (pull) the drawer to access the rear Te-Stack base unit (i.e. to remove the
stacker columns for filling with racks and to reinstall them).
Push the drawer back to the stop to put the rear Te-Stack base units in place
again.

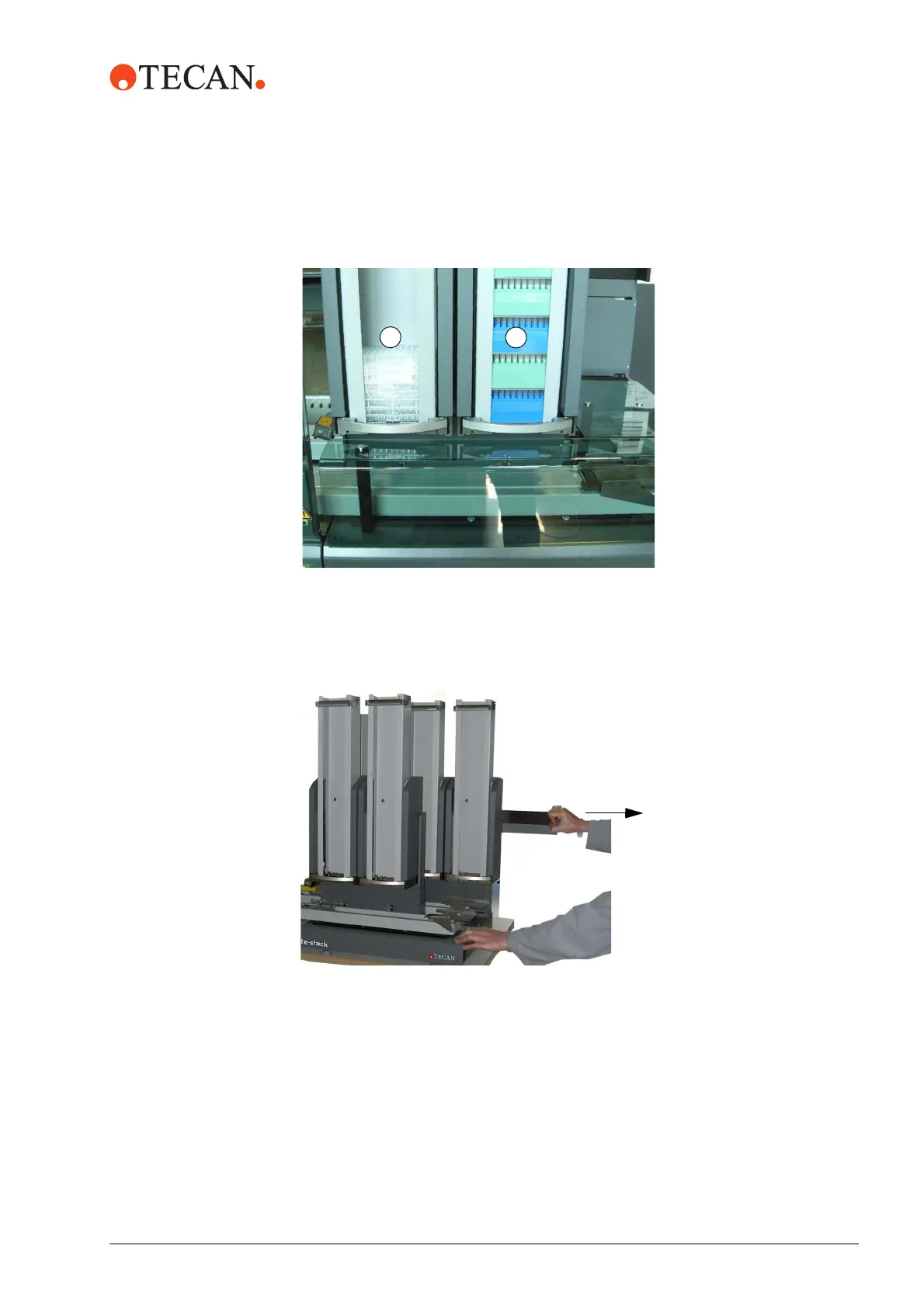

Fig. 4-10 MPs (A) and DiTi boxes (B) in the corresponding stacker columns
Fig. 4-11 Drawer
