4 - 6 Te-Stack Operating Manual, 391862, en, V2.3
4 - Description of Function
Function
After treatment on the Freedom EVO worktable, the RoMa/MCA puts the rack
back to the transfer carrier. The transfer carrier moves the rack to the waste
station for disposal.
The waste station is installed at the end of the transfer station. If the rack enters
the waste station, the waste tray tilts (as shown in Fig. 4-9, 4-6) and the rack
slides down on the waste chute (A).
Note: It is also possible to transfer the used rack back into the stacker column (by
means of the gripper) i.e., if no waste station is installed.

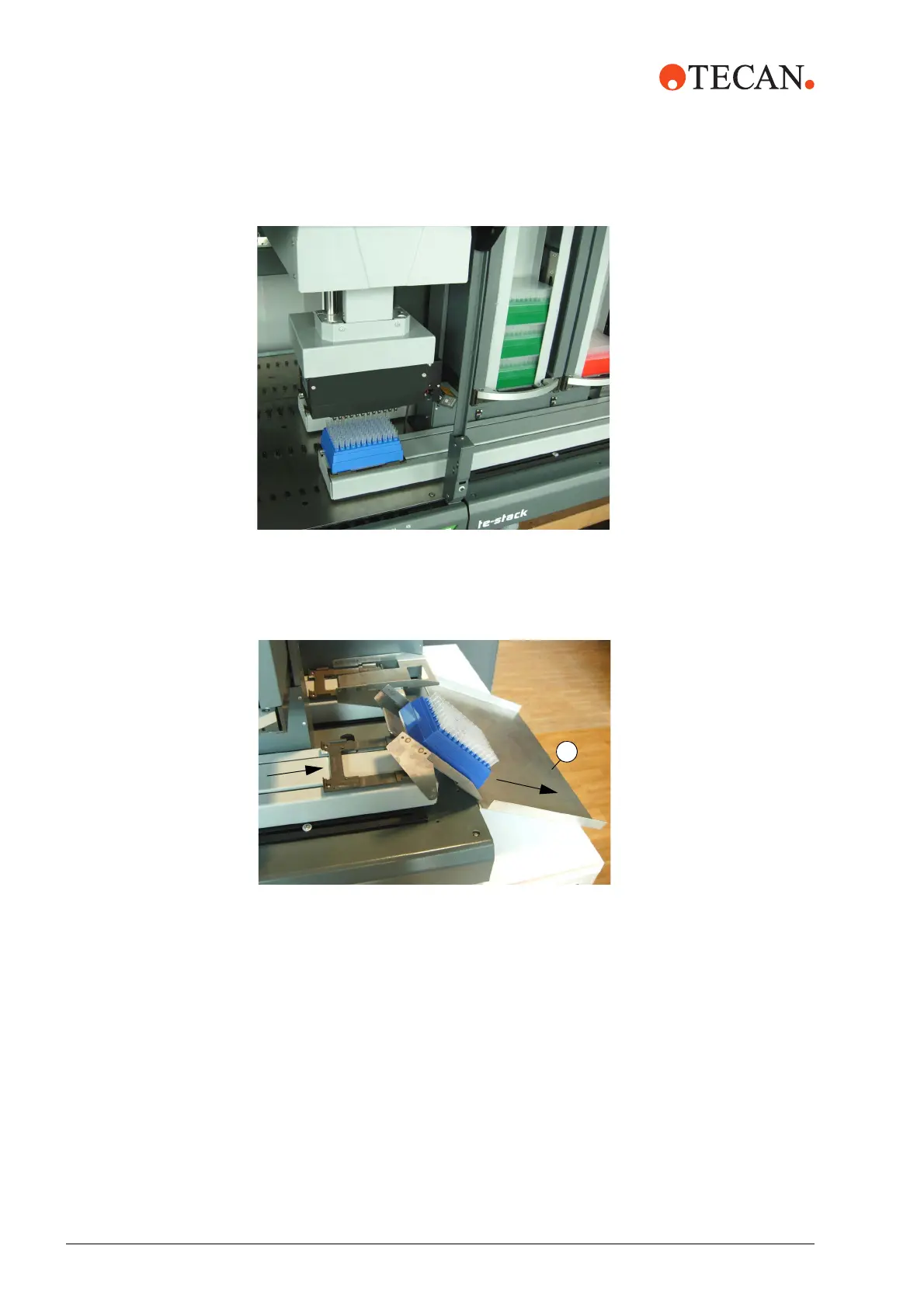

Fig. 4-8 Transfer carrier with rack in position below the MCA (LiHa/RoMa)
Fig. 4-9 Waste station (option)
