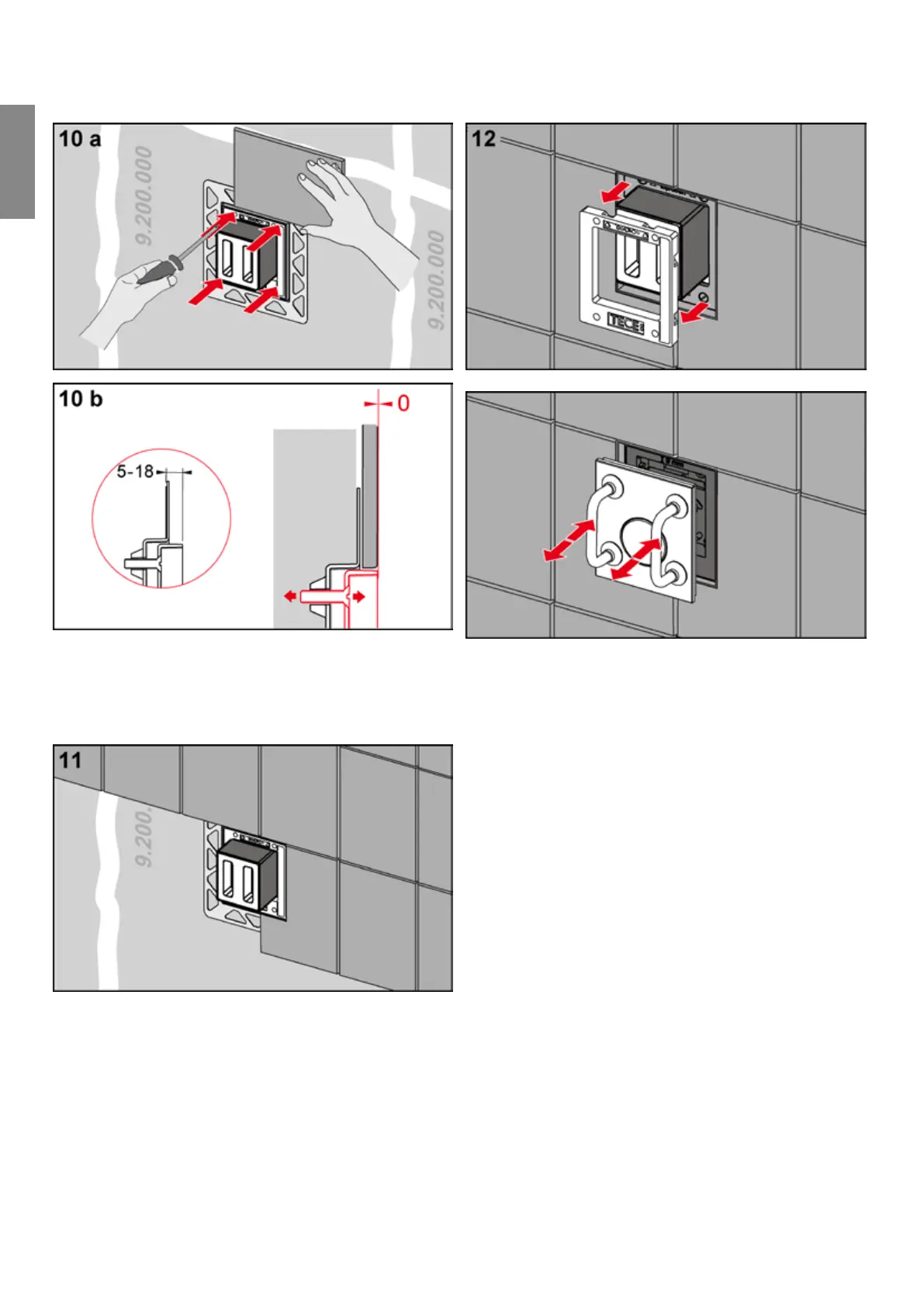

Adjust the depth of the installation frame to the tile thick-
ness (– mm). If the wall structure is thicker (up to
mm), as is the case for example with natural stone, you can
use a suitable upgrade kit (order no. ).
After adjusting the depth, you can tile right up to the instal-
lation frame.
Tip:
To obtain a perfect tile edge around the installation frame,
TECE recommends cutting the tiles with a water jet cutter.
Remove the support frame and proceed as described in
the installation instructions (installing the urinal cartridge,
installing the support frame, etc.). Finally, insert the flush
plate into the flush-mounted installation frame with the aid
of the bow-type handles. The handles are included in the
installation frame's scope of supply.
TECE flush plates – Flush-mounted installation
-
