TECEplanus electronics, cable-connec-
ted remote release
Another solution when using safety support arms is to
install a cable-connected variant whereby a cable-con-
nected switch is mounted on the safety support arm.
Power options for toilet electronics with cable-connected
remote release
• Mains variant:
The TECE transformer (order no. , order sepa-
rately) transforms  V AC to  V DC.
• Battery operation:
 x Lithium CR – 6 V (scope of supply)
Based on a service life of two years, the battery lasts for
• , flushes or
• approx.  flushes/day.
Alternatively, the battery can also be operated by  mono
cells (LR). This increases durability to , flushes or
 flushes/day. For this, in addition to batteries, you also
require another battery housing (order no. ).
Observe the following:
A transformer must be used for the  V mains variant. A
suitable place for this (flush-mounted socket or other) must
be provided for the purpose as it must not be positioned
next to the flush plate under any circumstances.
A flush plate is not included in the scope of supply. Any
single-flush system can be used with the remote release,
and all two-flush systems are possible too (e.g. TECE-
loop, TECEsquare). However, the largest flush volume will
only ever be activated, even if both actuating rods were
installed during installation.
Toilet electronics, cable-connected remote
release, 6 V battery

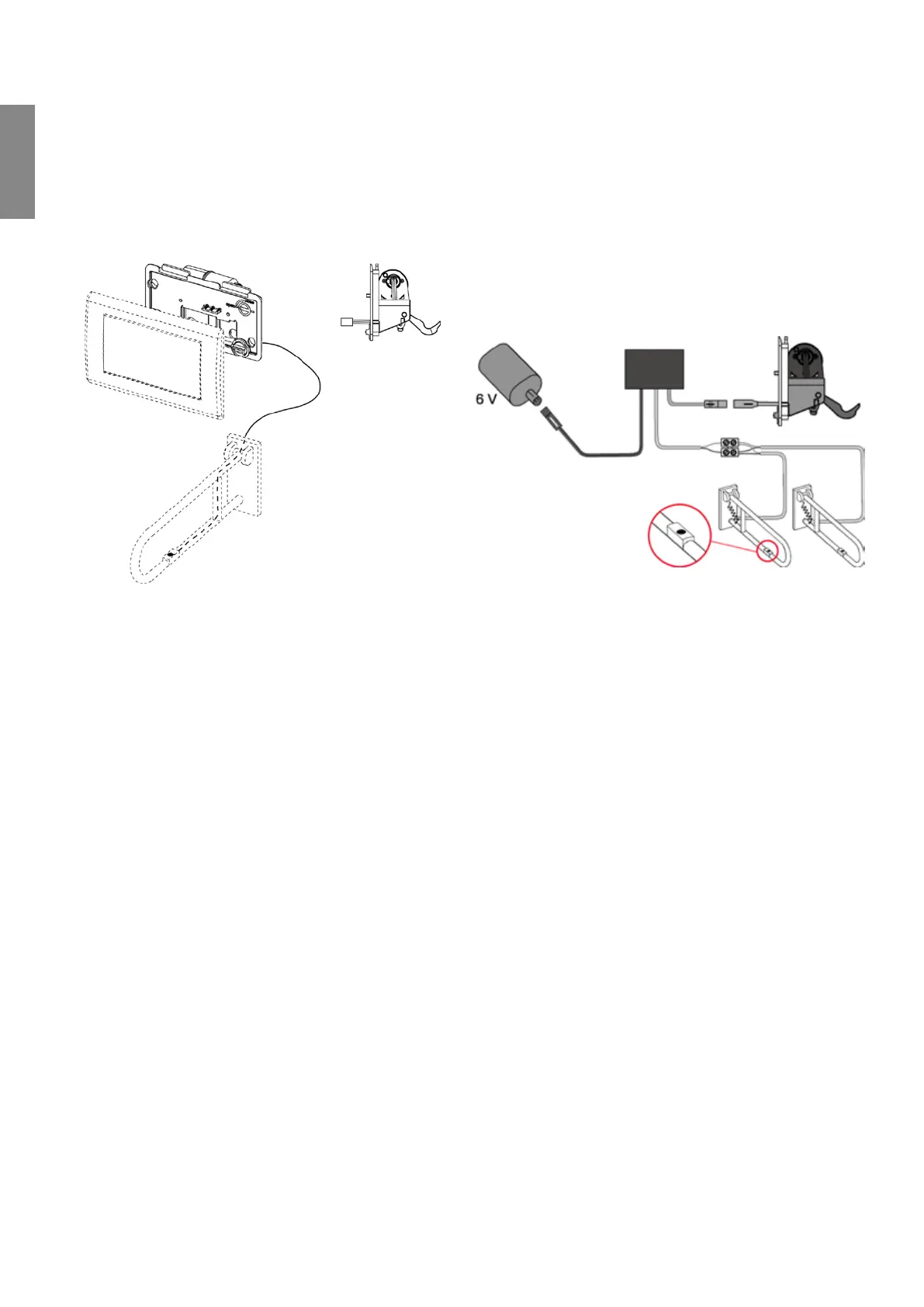

When the electric circuit to the switch on the safety sup-
port arm is closed, the flush is activated. In addition to the
electrical supply, the switch on the safety support arm and
the actuation motor, an additional electronic component
must also be installed between the dierent components.
Power is supplied by a  V battery.
Installing the toilet electronics, cable-con-
nected remote release, 6 V battery
When installing the toilet electronics with cable-connected
remote release, proceed as for the remote release:
Open the splash guard, suciently flush out the pipe, and
adjust the drain valve (see also: Installing the toilet elec-
tronics, remote release,  V battery).
The subsequent work steps dier depending on the
installed toilet module: Either a TECE Geronto module with
conduits for cabling and an installation box for housing the
electronics, or a dierent TECE module without conduits,
will be installed.
