Flush-mounted installation
Flush-mounted installation is a distinctive characteristic
of the TECElux Mini, TECEloop glass (toilet and urinal),
TECEsquare glass (toilet). and TECEnow flush plates (instal-
lation including spacing frame). When using the installation
frame, these flush plates can be flush-mounted as required
both in dry-walls (toilet and urinal) and in brick-wall struc-
tures (toilet).

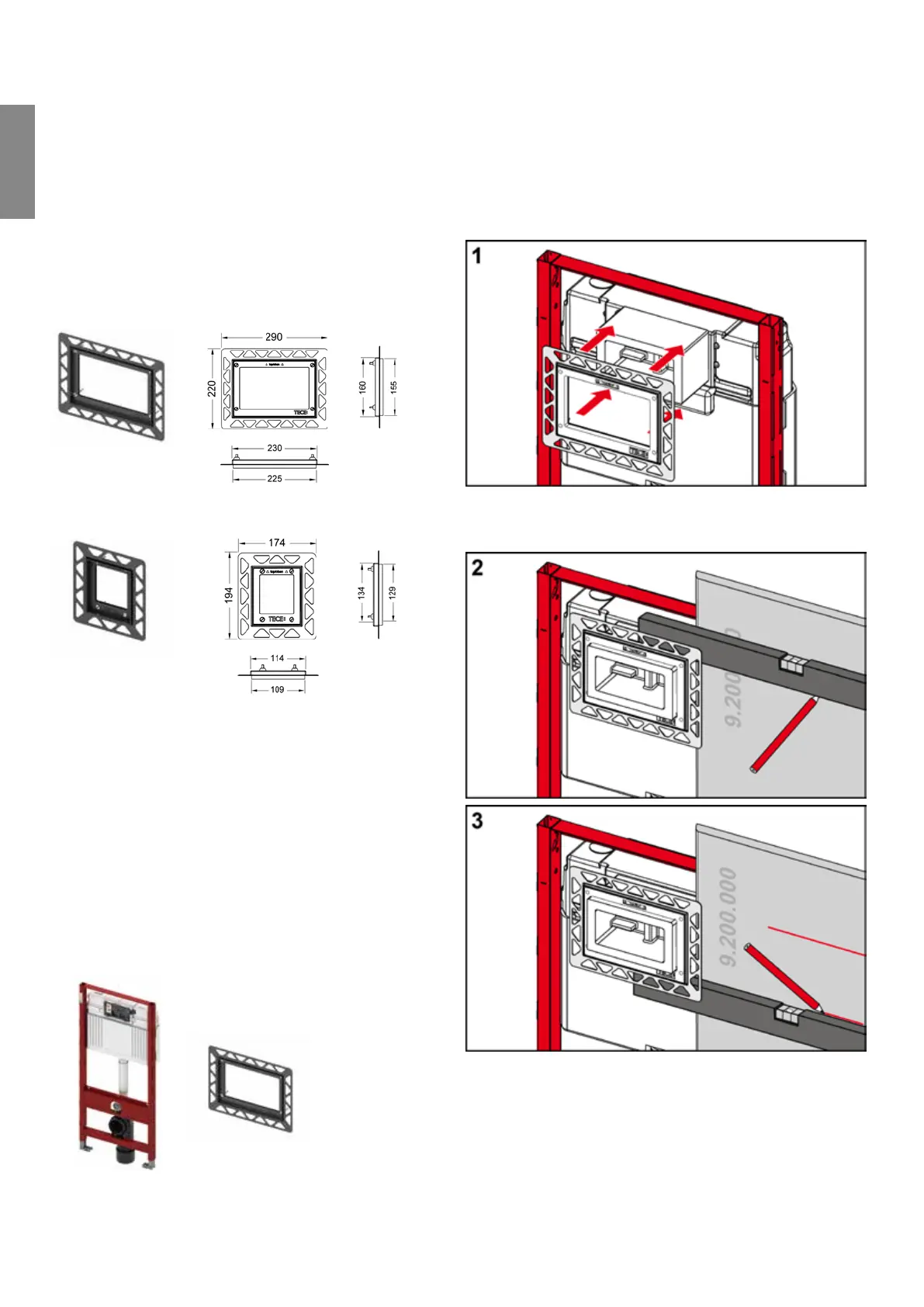

Flush-mounted installation frame for toilet flush plate
Flush-mounted installation frame for urinal flush plate
Dry-wall – toilet flush plate
The TECEprofil dry-wall module and the toilet installation
frame are required for installation in dry-wall structures.
Dry-wall modules of all installation heights can be com-
bined with the flush-mounted installation frame.
Components required:
TECEprofil module Installation frame for
toilet
Installing the toilet flush plate in a dry-wall
To insert the flush-mounted installation frame into the
plasterboard, a recess for the cistern's inspection opening
must be made in the plaster board.
To do this, place the installation frame over the polystyrene
bare-wall protection.
TECE flush plates – Flush-mounted installation
-
Flush plates
