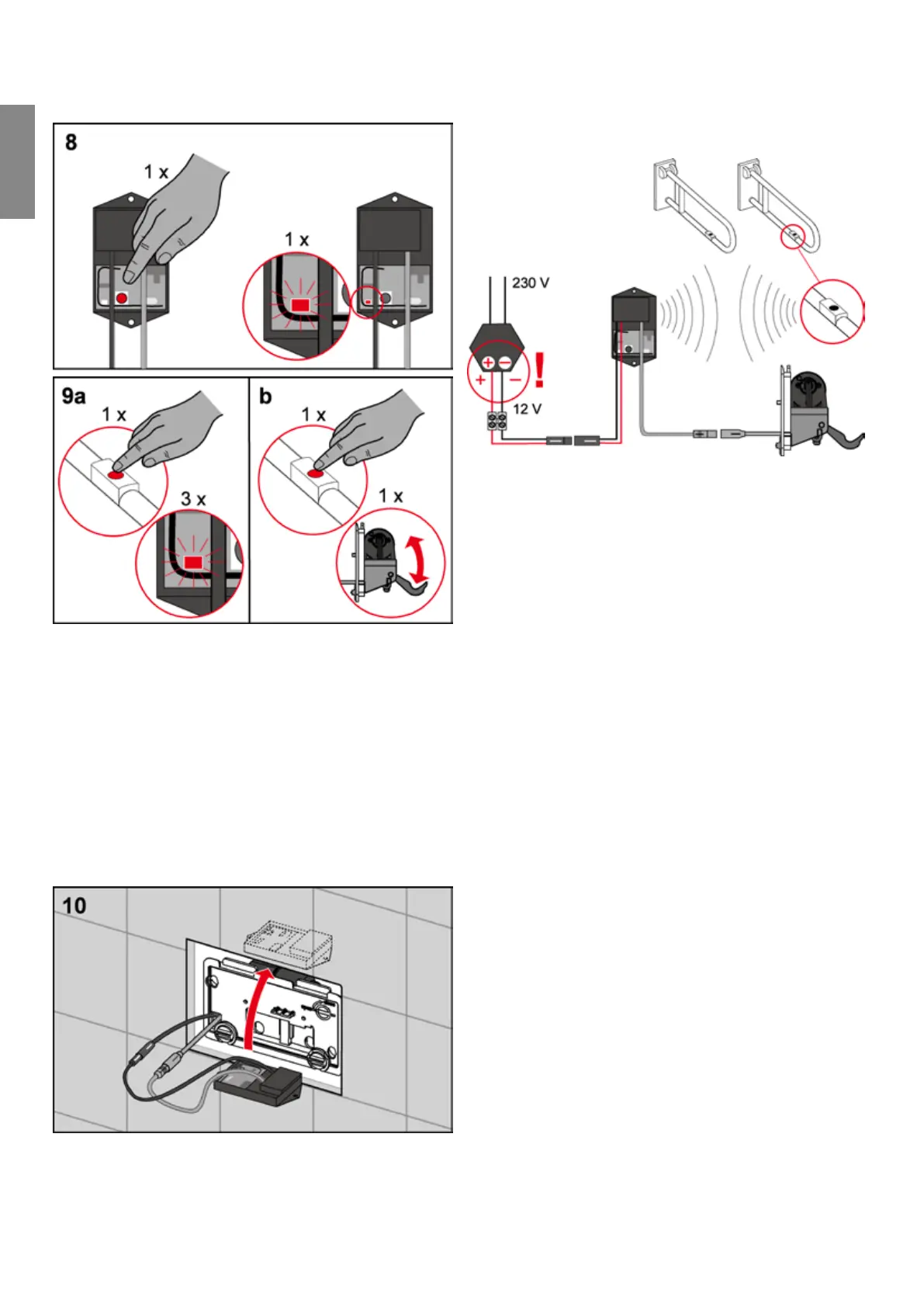

After installing the radio receiver, it must be coordinated
with the signal from the button on the safety arm support.
To do this, press the blue button on the receiver electron-
ics, the LED next to it will then briefly light up once (fig.
). After this, the receiver is ready for reception for one
minute. During this time, press the button on the safety arm
support once to establish a connection with the receiver
electronics. If successfully connected, after activating the
switch, the control LED on the receiving unit will flash three
times. Now check that the motor is functioning correctly. To
do this, press the button again to activate the motor once.
Install the electronics on the cistern or in another suitable
location in the wall. Finally, install the flush plate.
Toilet electronics, remote release, 12 V mains
The radio signal sent when the radio switch is activated is
received by a radio receiver. This receiving unit operates
the power circuit to trigger the actuation motor.
To connect the V mains variant, the power supply must
be transformed to V DC by a TECE transformer (order
transformer separately: order no. ).
Installing the toilet electronics, remote release,
12 V mains
When installing the toilet electronics with remote release,
proceed as for installing the battery variant:
Open the splash guard, suciently flush out the pipe, and
adjust the drain valve (see also: Installing the toilet elec-
tronics, remote release, V battery).
The additional work steps also dier for this installation
depending on the type of toilet module installed: Either
a TECE Geronto module with conduits for cabling and an
installation box for housing the electronics, or a dierent
TECE module without conduits, will be installed.
TECE flush plates – TECEplanus electronics, remote release
-
Flush plates
